Product details

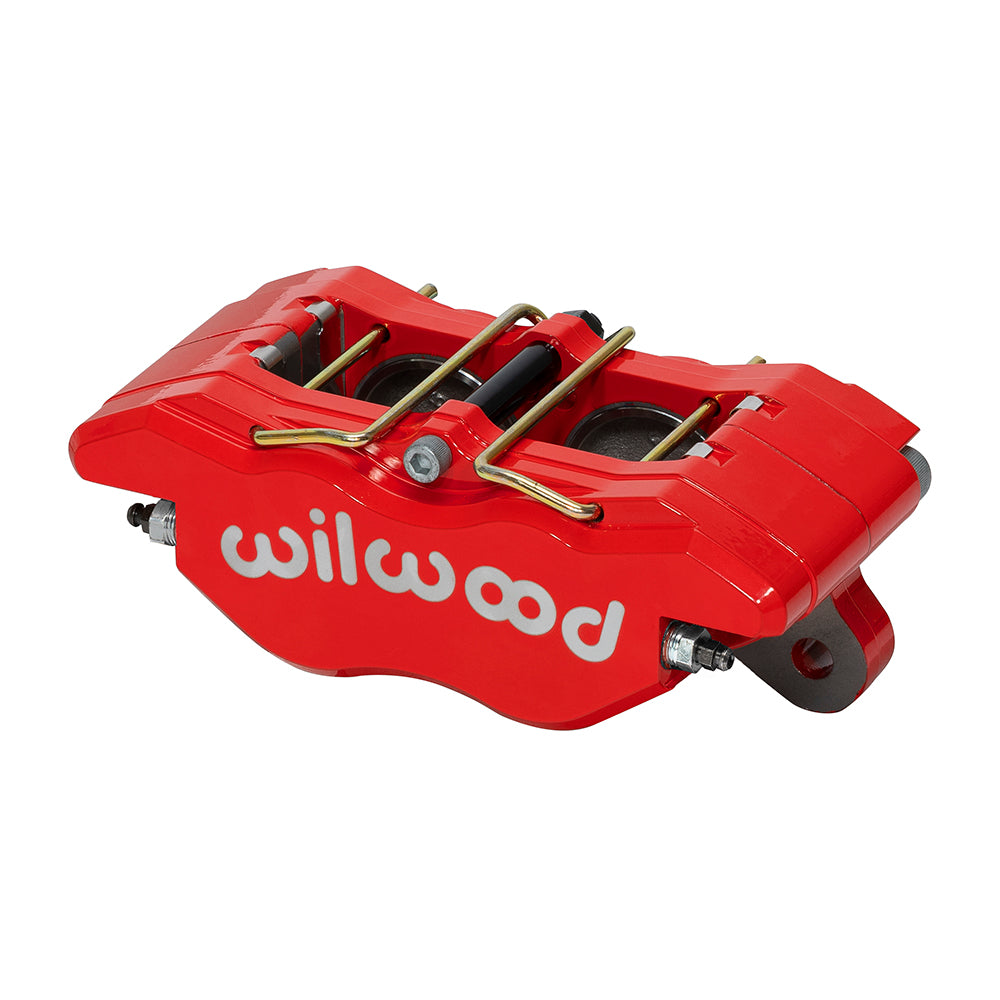

Red finish and 1.75-inch bores distinguish this Wilwood Dynapro Narrow Lug Mount configuration. It is a 4-piston brake caliper for 0.38-inch-wide rotors, with 5.25-inch lug attachment centers. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company makes disc brake systems and components, including calipers, rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications.
This narrower-outboard-profile Dynapro uses four pistons with a 5.25-inch lug pattern. Top-access type 7812 pads and internal fluid passages support service, but the reduced profile must be checked against the actual wheel and rotor-hat dimensions.
Technical Details
- Manufacturer part number: 120-15374-RD
- Component: Wilwood Dynapro Narrow Lug Mount; one caliper
- Piston arrangement: 4 pistons; 1.75-inch bores; stainless steel
- Hydraulic piston area: 4.80 square inches, as specified by Wilwood
- Pad shape: Wilwood type 7812; compound selected separately
- Mounting: universal side configuration; Lug; 5.25-inch centers; 0.39-inch mounting holes
- Mount height: 2.10 inches
- Rotor width: 0.38-inch nominal; 0.31–0.42-inch permitted range
- Rotor diameter range: 10.00–13.06 inches
- Fluid inlet: 1/8-27 NPT
- Dust boots: No
- Body and finish: Forged aluminum; Red Powder Coat
Fitment & Compatibility
Use the intended rotor and bracket dimensions to establish compatibility. The chosen pad compound, master-cylinder volume and brake balance must be considered with this caliper’s piston sizes.
This listing covers one caliper. Match the brake pads, rotor, hose and mounting arrangement to the complete brake system.
Ask PMB Performance for help comparing this caliper with your existing assembly. Our over 20 years of experience are most useful when you provide rotor size, mounting details and the current piston configuration.
