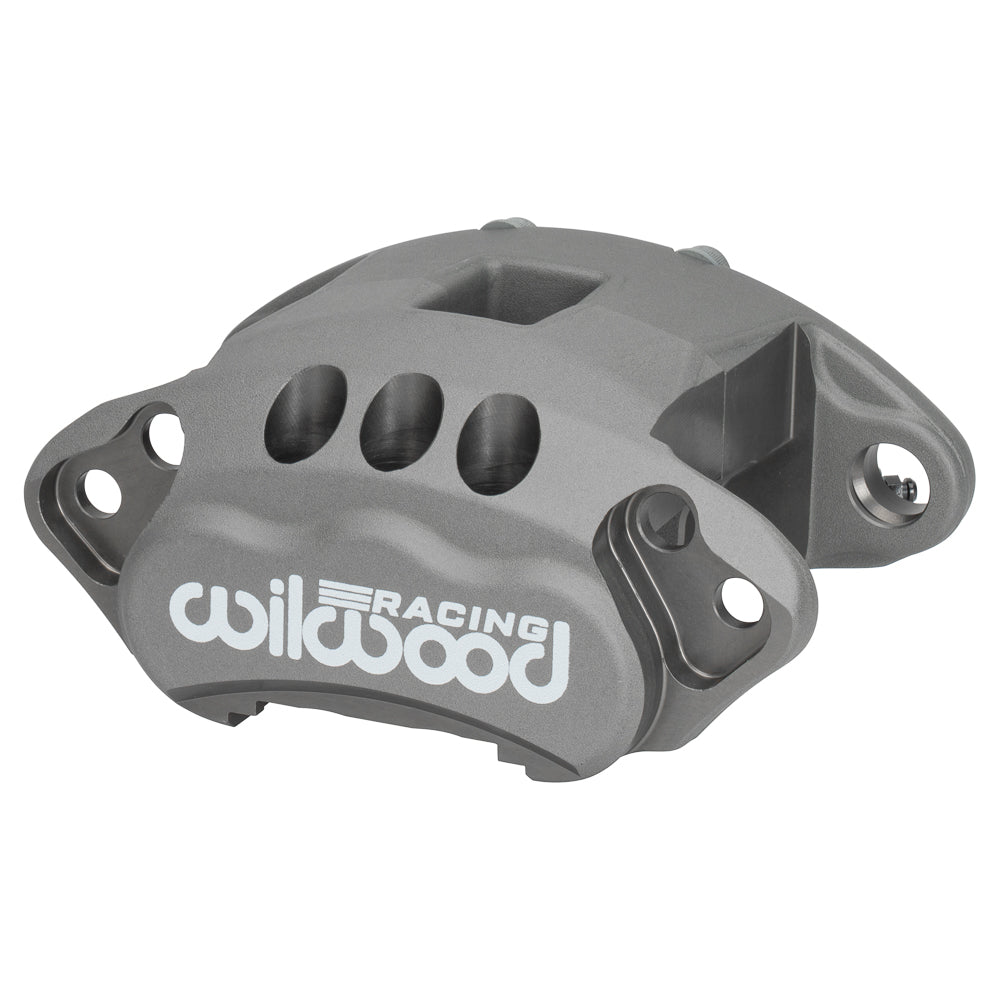

Wilwood D154-R type iii anodized caliper, 1.04-inch rotor width, 2.00-inch bore: outer face with mounting ears and circular recesses

Wilwood Type III Anodized D154-R GM Metric Brake Caliper, 2.00-Inch Stainless Steel Piston

SKU: 120-14876

$186.10 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

For a brake system using a 1.04-inch-wide rotor, this Type III anodized Wilwood D154-R GM Metric provides 1 piston with 2.00-inch bore. The caliper attaches on 5.46-inch floating centers. Founded in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering manufactures disc brake components for motorsport, street-performance and specialized uses. Its range covers calipers, rotors, master cylinders, valves, fittings and brake lines.

Technical Details

  • Manufacturer part number: 120-14876
  • Component: Wilwood D154-R GM Metric; one caliper
  • Rotor width: 1.04-inch nominal; 0.81–1.04-inch permitted range
  • Rotor diameter range: 11.00–12.19 inches
  • Mounting: universal side configuration; Floating; 5.46-inch centers; 0.69-inch mounting holes
  • Mount height: 0.37 inches
  • Piston arrangement: 1 piston; 2.00-inch bore; stainless steel
  • Hydraulic piston area: 3.14 square inches, as specified by Wilwood
  • Pad shape: Wilwood type D154; compound selected separately
  • Body and finish: Forged aluminum; Type III anodized
  • Dust boots: No
  • Fluid inlet: 1/8-27 NPT

This forged aluminum floating caliper replaces the GM metric D154 layout in racing applications. Hardened Wilwood slide pins are required and sold separately; the centered inlet avoids interference with the slide-pin arrangement.

Fitment & Compatibility

Use the intended rotor and bracket dimensions to establish compatibility. The chosen pad compound, master-cylinder volume and brake balance must be considered with this caliper’s piston size. GM metric mounting requires hardened slide-pin kit 230-0619, sold separately. Verify the relevant race rules before installation.

This listing covers one caliper. Match the brake pads, rotor, hose and mounting arrangement to the complete brake system.
