Product details

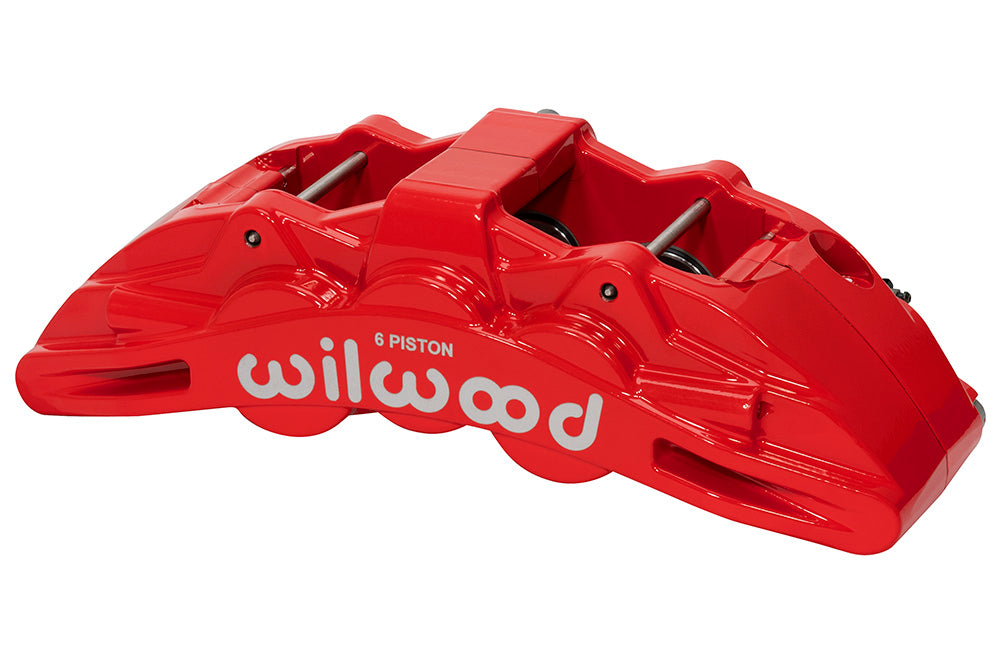

The 9.84-inch radial pattern identifies the attachment layout of this Wilwood SX6R. This left-hand red caliper has 6 pistons, 1.75/1.38/1.38-inch bores and a 1.25-inch nominal rotor-width specification. Wilwood Engineering’s disc brake range includes calipers, rotors, master cylinders, valves, fittings and brake lines. Bill Wood founded the company in 1977 in California; it is based in Camarillo and serves motorsport, street-performance and specialized brake applications.
Technical Details
- Manufacturer part number: 120-14861-RD
- Component: Wilwood SX6R; one caliper
- Pad shape: Wilwood type D1792; compound selected separately
- Rotor width: 1.25-inch nominal; 1.10–1.28-inch permitted range
- Rotor diameter range: 12.88–15.00 inches
- Mounting: Left hand; Radial; 9.84-inch centers; 0.52-inch mounting holes
- Piston arrangement: 6 pistons; 1.75/1.38/1.38-inch bores; stainless steel
- Hydraulic piston area: 5.40 square inches, as specified by Wilwood
- Fluid inlet: 1/8-27 NPT
- Body and finish: Forged aluminum; Red Powder Coat
- Dust boots: No
SX6R calipers combine six differential-bore pistons with dust wipers and a 9.84-inch radial mounting pattern. The D1792 pad outline and body envelope differ from smaller radial calipers, even when rotor thickness is similar.
Fitment & Compatibility
Measure the available space at both sides of the rotor, including its hat. Confirm mounting geometry and piston area; rotor width by itself cannot establish a complete brake package.
This listing covers one caliper. Match the brake pads, rotor, hose and mounting arrangement to the complete brake system.
