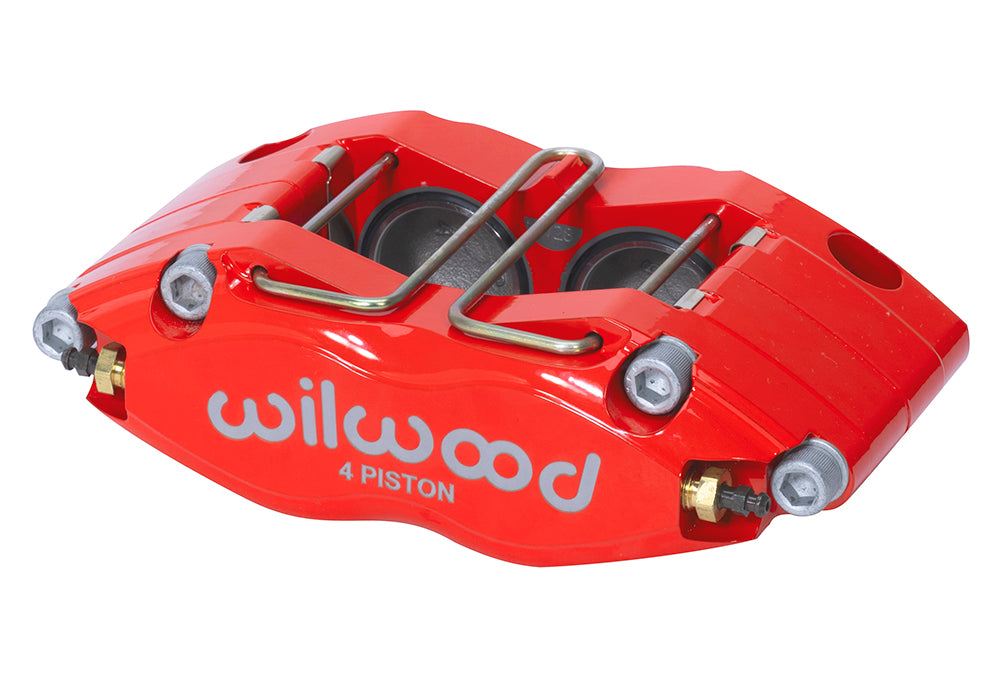

Wilwood Red Dynapro Dust Seal Brake Caliper, 0.81-Inch Rotor Width

Choose this Wilwood Dynapro Radial Dust Seal when the installation calls for 1.62-inch pistons and 0.81-inch rotor width. The red 4-piston body uses a 5.98-inch radial pattern; check its complete geometry before substituting another caliper. Bill Wood founded Wilwood Engineering in 1977. Based in Camarillo, California, Wilwood designs and manufactures disc brake systems and parts for motorsport, street-performance and specialized applications, from calipers and rotors to master cylinders, valves, fittings and brake lines.

Technical Details

• Manufacturer part number: 120-14706-RD
• Component: Wilwood Dynapro Radial Dust Seal; one caliper
• Pad shape: Wilwood type 7816; compound selected separately
• Rotor width: 0.81-inch nominal; 0.75–0.86-inch permitted range
• Rotor diameter range: 10.75–12.19 inches
• Mounting: universal side configuration; Radial; 5.98-inch centers; 0.39-inch mounting holes
• Mount height: 1.61 inches
• Piston arrangement: 4 pistons; 1.62-inch bores; stainless steel
• Hydraulic piston area: 4.12 square inches, as specified by Wilwood
• Fluid inlet: 1/8-27 NPT
• Body and finish: Forged aluminum; Red Powder Coat
• Dust boots: Yes

This four-piston radial Dynapro includes piston dust wipers. The radial mounting centers are common to several rotor-width and radius versions, so bracket height, pad sweep and actual rotor dimensions must all be compared.

Fitment & Compatibility

Plan the caliper installation with the rotor centered in the pad gap. Verify attachment hardware, hose connection and accessible upper bleeders, then confirm the brake system’s hydraulic balance.

This listing covers one caliper. Match the brake pads, rotor, hose and mounting arrangement to the complete brake system.

Ask PMB Performance for help comparing this caliper with your existing assembly. Our over 20 years of experience are most useful when you provide rotor size, mounting details and the current piston configuration.
