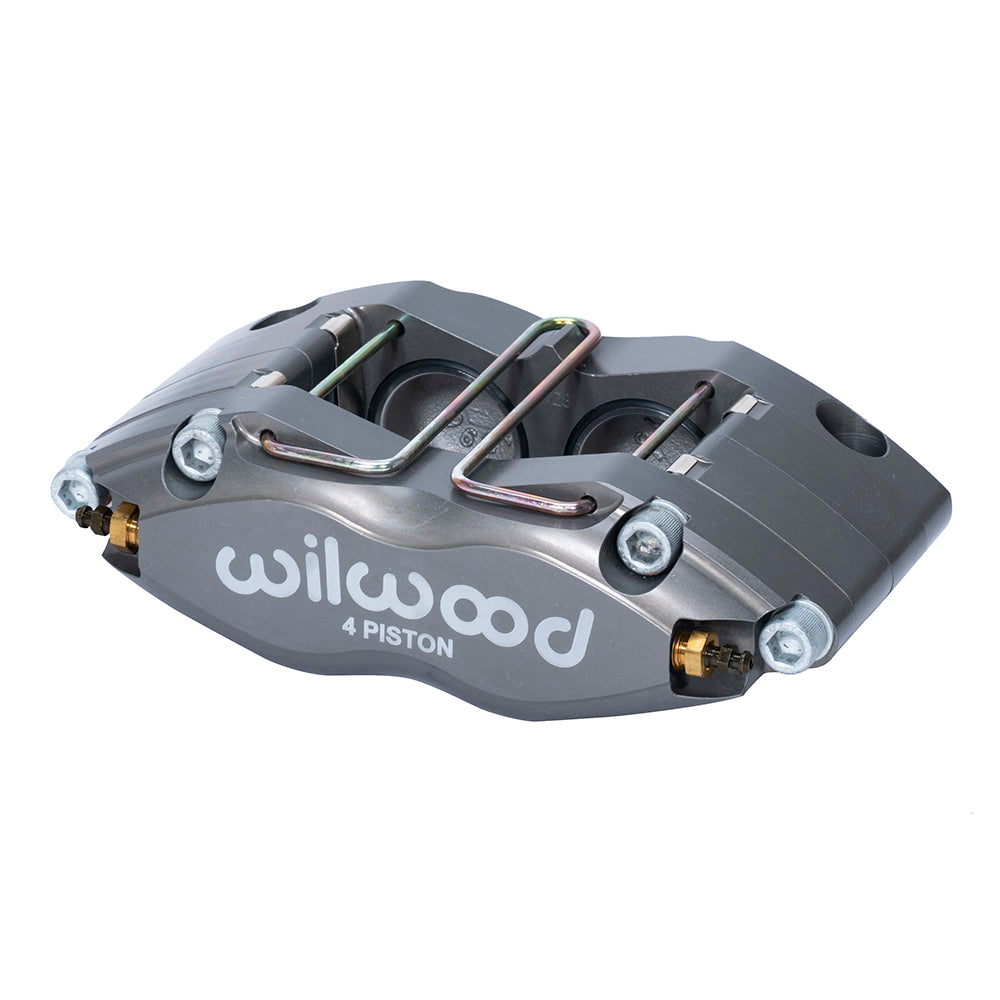

Wilwood Dynapro Dust Seal type iii anodized caliper, 0.81-inch rotor width, 1.50-inch bores: logo-side view with wire pad retainers

Wilwood Dynapro Radial Dust Seal Caliper, Type III Anodized / 5.98-Inch Mount / 0.81-Inch-wide Rotor

SKU: 120-14704

$349.82 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Choose this Wilwood Dynapro Radial Dust Seal when the installation calls for 1.50-inch pistons and 0.81-inch rotor width. The Type III anodized 4-piston body uses a 5.98-inch radial pattern; check its complete geometry before substituting another caliper. Bill Wood founded Wilwood Engineering in 1977. Based in Camarillo, California, Wilwood designs and manufactures disc brake systems and parts for motorsport, street-performance and specialized applications, from calipers and rotors to master cylinders, valves, fittings and brake lines.

Technical Details

  • Manufacturer part number: 120-14704
  • Component: Wilwood Dynapro Radial Dust Seal; one caliper
  • Rotor width: 0.81-inch nominal; 0.75–0.86-inch permitted range
  • Rotor diameter range: 10.75–12.19 inches
  • Mounting: universal side configuration; Radial; 5.98-inch centers; 0.39-inch mounting holes
  • Mount height: 1.61 inches
  • Piston arrangement: 4 pistons; 1.50-inch bores; stainless steel
  • Hydraulic piston area: 3.54 square inches, as specified by Wilwood
  • Pad shape: Wilwood type 7816; compound selected separately
  • Body and finish: Forged aluminum; Type III anodized
  • Dust boots: Yes
  • Fluid inlet: 1/8-27 NPT

This four-piston radial Dynapro includes piston dust wipers. The radial mounting centers are common to several rotor-width and radius versions, so bracket height, pad sweep and actual rotor dimensions must all be compared.

Fitment & Compatibility

Use the caliper drawing to compare the mounting holes and body envelope with the installed brake assembly. Confirm piston sizes and brake balance before changing to a different bore configuration.

This listing covers one caliper. Match the brake pads, rotor, hose and mounting arrangement to the complete brake system.

For a brake system assembled from individual components, PMB Performance brings over 20 years of experience. Contact us with the rotor, caliper and bracket information so we can help check the combination.
