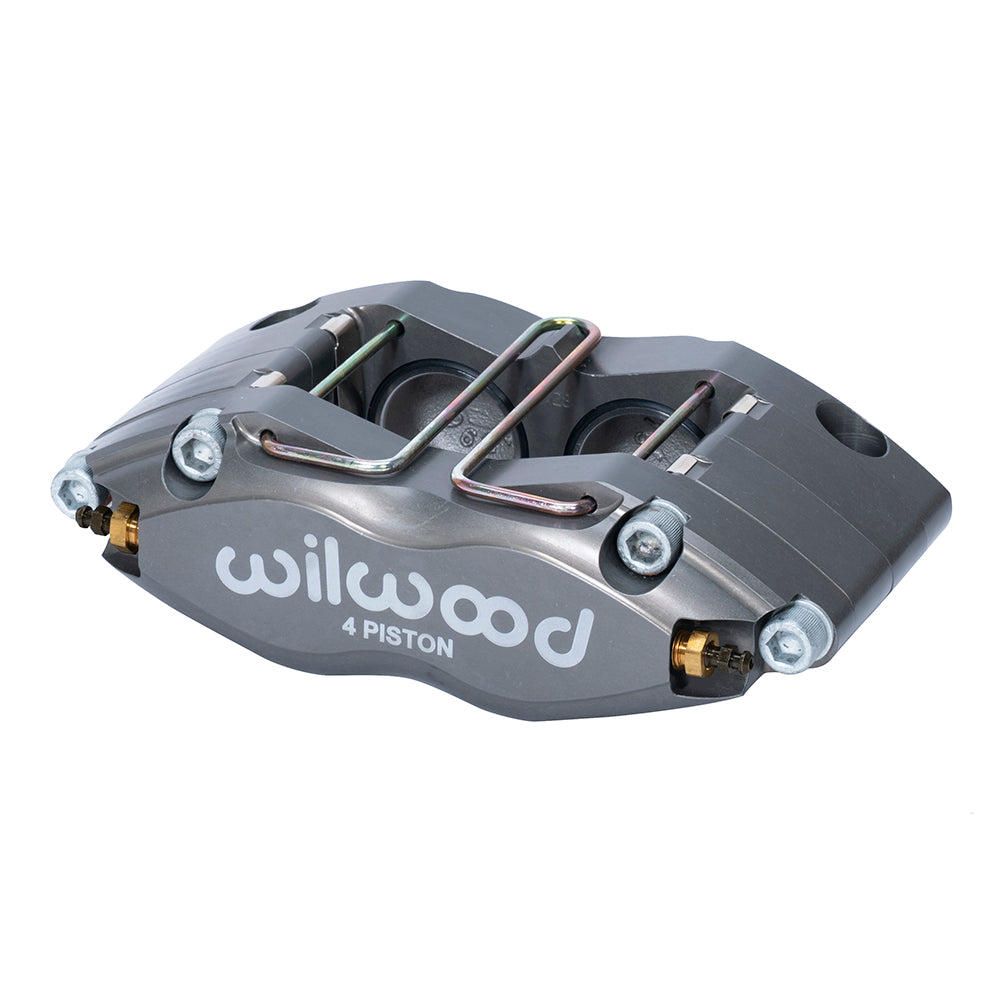

Wilwood Type III Anodized Dynapro Radial Dust Seal, 4-Piston Caliper for 0.81-Inch-wide Rotor with 5.98-Inch Radial Centers

For a brake system using a 0.81-inch-wide rotor, this Type III anodized Wilwood Dynapro Radial Dust Seal provides 4 pistons with 1.25-inch bores. The caliper attaches on 5.98-inch radial centers. Founded in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering manufactures disc brake components for motorsport, street-performance and specialized uses. Its range covers calipers, rotors, master cylinders, valves, fittings and brake lines.

Technical Details

• Manufacturer part number: 120-14699
• Component: Wilwood Dynapro Radial Dust Seal; one caliper
• Pad shape: Wilwood type 7816; compound selected separately
• Rotor width: 0.81-inch nominal; 0.75–0.86-inch permitted range
• Rotor diameter range: 10.75–12.19 inches
• Mounting: universal side configuration; Radial; 5.98-inch centers; 0.39-inch mounting holes
• Mount height: 1.61 inches
• Piston arrangement: 4 pistons; 1.25-inch bores; stainless steel
• Hydraulic piston area: 2.46 square inches, as specified by Wilwood
• Fluid inlet: 1/8-27 NPT
• Body and finish: Forged aluminum; Type III anodized
• Dust boots: Yes

This four-piston radial Dynapro includes piston dust wipers. The radial mounting centers are common to several rotor-width and radius versions, so bracket height, pad sweep and actual rotor dimensions must all be compared.

Fitment & Compatibility

Measure rotor width before comparing calipers. Verify the mount height, rotor centerline and available wheel space; a common piston count does not establish interchangeability.

This listing covers one caliper. Match the brake pads, rotor, hose and mounting arrangement to the complete brake system.

PMB Performance’s team has over 20 years of experience with brake components and fitment. We can help review this caliper against the dimensions and hydraulic requirements of your brake system.
