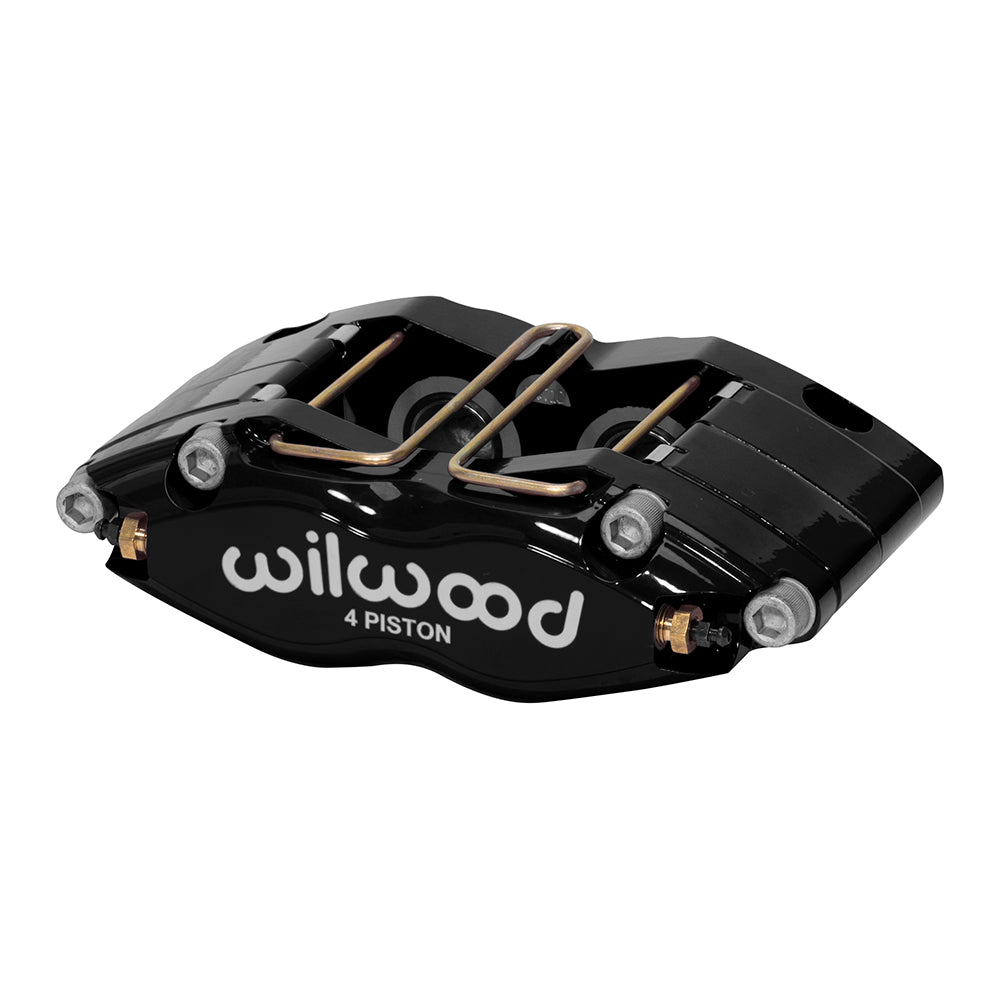

Wilwood Dynapro Dust Seal Caliper, Black, 1.00–1.10-Inch Width and 5.98-Inch Mount

This Wilwood Dynapro Radial Dust Seal is a 4-piston brake caliper with a black finish for a nominally 1.10-inch-wide rotor. Its 5.98-inch radial mounting centers and 1.00-inch piston bores must match the brake assembly. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company makes disc brake systems and components, including calipers, rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications.

Technical Details

• Manufacturer part number: 120-14697-BK
• Component: Wilwood Dynapro Radial Dust Seal; one caliper
• Rotor width: 1.10-inch nominal; 1.00–1.10-inch permitted range
• Rotor diameter range: 11.75–13.00 inches
• Mounting: universal side configuration; Radial; 5.98-inch centers; 0.39-inch mounting holes
• Mount height: 1.29 inches
• Piston arrangement: 4 pistons; 1.00-inch bores; stainless steel
• Hydraulic piston area: 1.58 square inches, as specified by Wilwood
• Pad shape: Wilwood type 7816; compound selected separately
• Body and finish: Forged aluminum; Black Powder Coat
• Dust boots: Yes
• Fluid inlet: 1/8-27 NPT

This four-piston radial Dynapro includes piston dust wipers. The radial mounting centers are common to several rotor-width and radius versions, so bracket height, pad sweep and actual rotor dimensions must all be compared.

Fitment & Compatibility

For a replacement, compare the entire caliper specification rather than the finish or logo. On an adapted system, establish rotor alignment and piston-area requirements before choosing the mounting bracket.

This listing covers one caliper. Match the brake pads, rotor, hose and mounting arrangement to the complete brake system.
