Product details

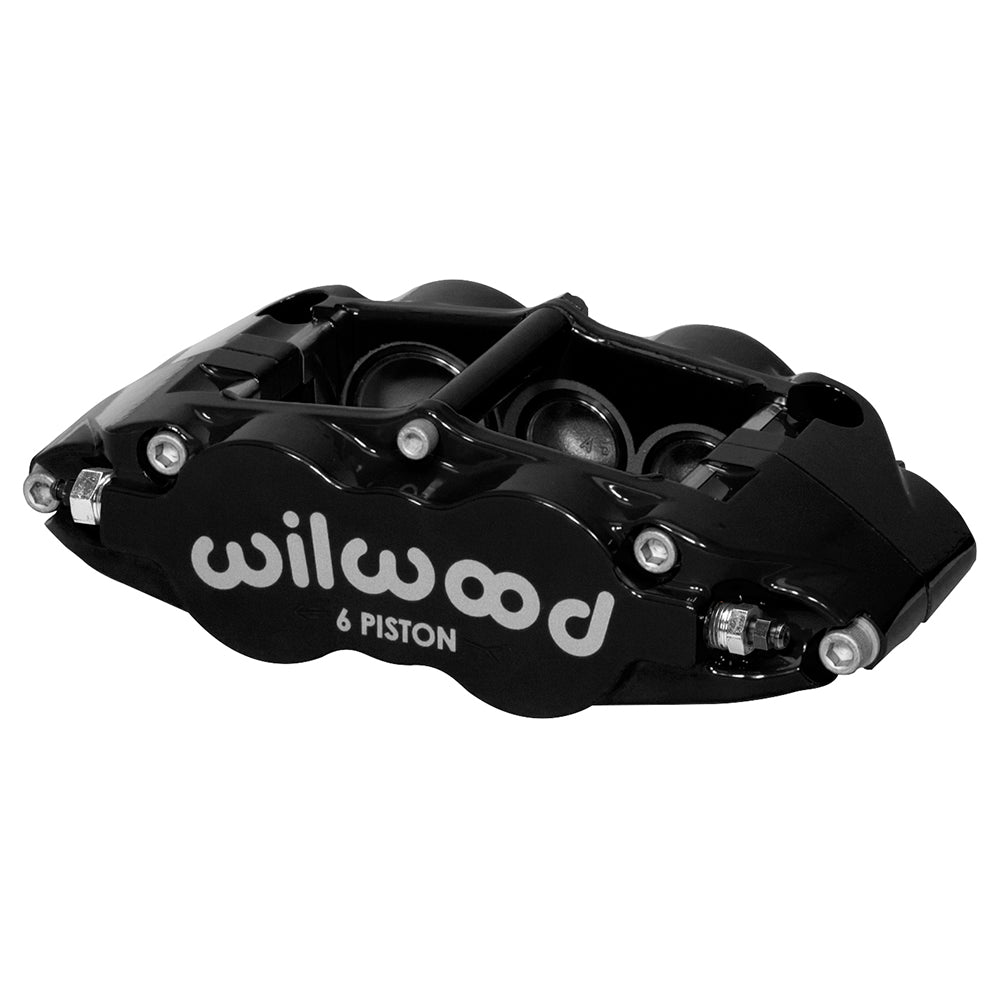

The 5.98-inch radial pattern identifies the attachment layout of this Wilwood Forged Narrow Superlite 6R. This left-hand black caliper has 6 pistons, 1.75/1.25/1.25-inch bores and a 1.25-inch nominal rotor-width specification. Wilwood Engineering’s disc brake range includes calipers, rotors, master cylinders, valves, fittings and brake lines. Bill Wood founded the company in 1977 in California; it is based in Camarillo and serves motorsport, street-performance and specialized brake applications.
The six-piston narrow Superlite has differential bores, radial mounting and a removable center bridge. Type 7416 pads fit the friction cavity, while each rotor-width and piston-area combination must be matched to the complete brake system.
Technical Details
- Manufacturer part number: 120-14551-BK
- Component: Wilwood Forged Narrow Superlite 6R; one caliper
- Piston arrangement: 6 pistons; 1.75/1.25/1.25-inch bores; stainless steel
- Hydraulic piston area: 4.86 square inches, as specified by Wilwood
- Pad shape: Wilwood type 7416; compound selected separately
- Mounting: Left hand; Radial; 5.98-inch centers; 0.39-inch mounting holes
- Mount height: 1.45 inches
- Rotor width: 1.25-inch nominal; 1.19–1.25-inch permitted range
- Rotor diameter range: 11.75–14.00 inches
- Fluid inlet: 1/8-27 NPT
- Dust boots: No
- Body and finish: Forged aluminum; Black Powder Coat
Fitment & Compatibility
The bracket must center the caliper over the rotor and locate the friction material at the correct radius. Check hose routing and bleed orientation through the full suspension and steering movement.
This listing covers one caliper. Match the brake pads, rotor, hose and mounting arrangement to the complete brake system.
PMB Performance has worked with parts and brake fitment for over 20 years. Supply the installed caliper identity and the rotor and bracket measurements for a practical compatibility check.
