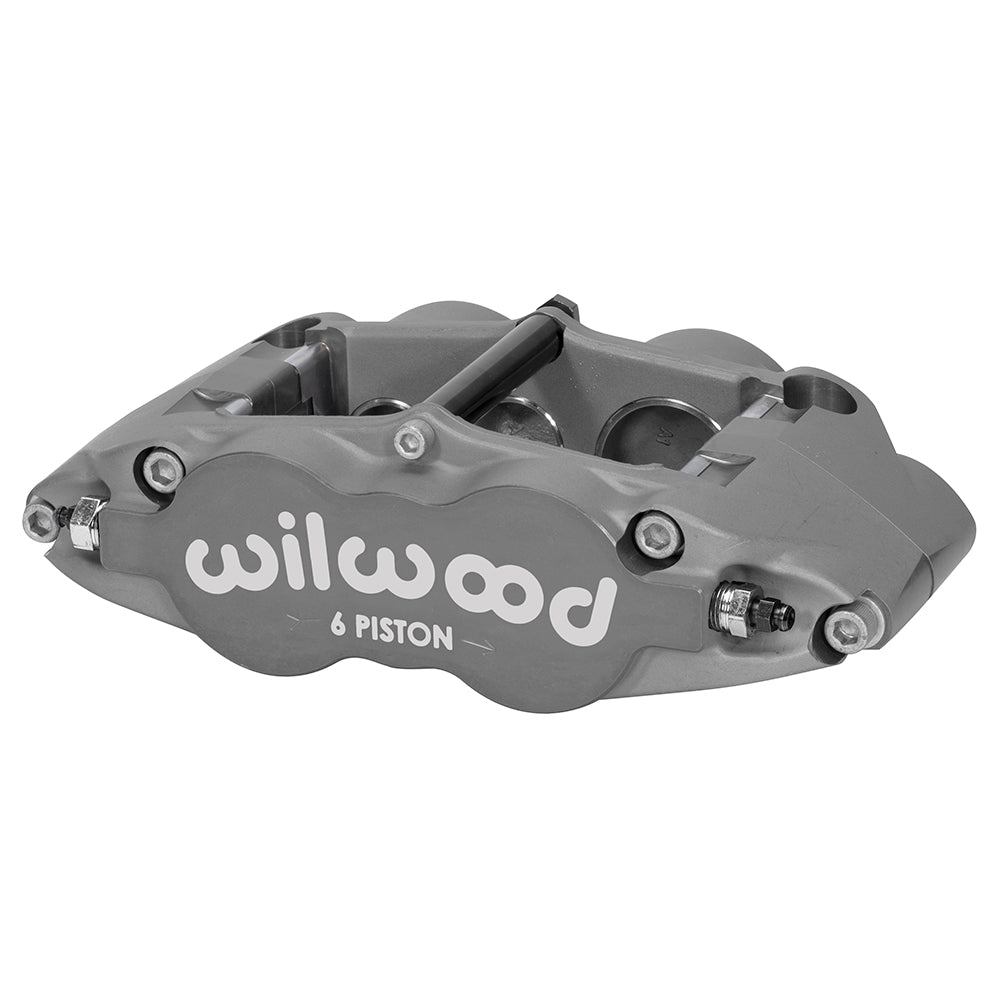

Wilwood Forged Narrow Superlite 6R Brake Caliper for 1.19–1.25-Inch Rotor Thickness, Right Type III Anodized

Choose this right-hand Wilwood Forged Narrow Superlite 6R when the installation calls for 1.75/1.25/1.25-inch pistons and 1.25-inch rotor width. The Type III anodized 6-piston body uses a 5.98-inch radial pattern; check its complete geometry before substituting another caliper. Bill Wood founded Wilwood Engineering in 1977. Based in Camarillo, California, Wilwood designs and manufactures disc brake systems and parts for motorsport, street-performance and specialized applications, from calipers and rotors to master cylinders, valves, fittings and brake lines.

Technical Details

• Manufacturer part number: 120-14550
• Mounting: Right hand; Radial; 5.98-inch centers; 0.39-inch mounting holes
• Mount height: 1.45 inches
• Rotor width: 1.25-inch nominal; 1.19–1.25-inch permitted range
• Rotor diameter range: 11.75–14.00 inches
• Pad shape: Wilwood type 7416; compound selected separately
• Piston arrangement: 6 pistons; 1.75/1.25/1.25-inch bores; stainless steel
• Hydraulic piston area: 4.86 square inches, as specified by Wilwood
• Body and finish: Forged aluminum; Type III anodized
• Fluid inlet: 1/8-27 NPT
• Dust boots: No
• Component: Wilwood Forged Narrow Superlite 6R; one caliper

Fitment & Compatibility

Plan the caliper installation with the rotor centered in the pad gap. Verify attachment hardware, hose connection and accessible upper bleeders, then confirm the brake system’s hydraulic balance.

This listing covers one caliper. Match the brake pads, rotor, hose and mounting arrangement to the complete brake system.

The six-piston narrow Superlite has differential bores, radial mounting and a removable center bridge. Type 7416 pads fit the friction cavity, while each rotor-width and piston-area combination must be matched to the complete brake system.
