Product details

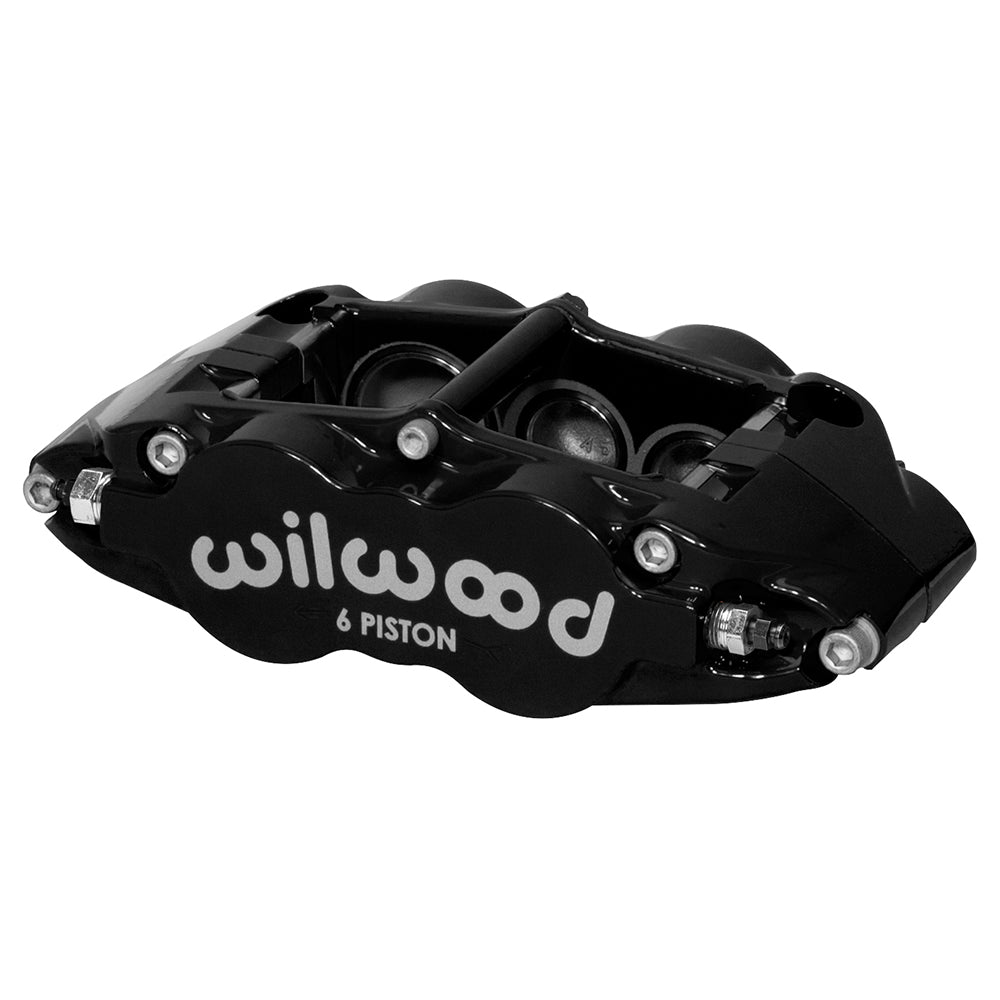

The Wilwood Forged Narrow Superlite 6R shown here is specified for 1.10-inch rotor width, 5.98-inch radial mounting and 1.75/1.25/1.25-inch piston bores. This left-hand black 6-piston component is selected by brake-system geometry rather than vehicle year alone. Founded in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering manufactures disc brake components for motorsport, street-performance and specialized uses. Its range covers calipers, rotors, master cylinders, valves, fittings and brake lines.
The six-piston narrow Superlite has differential bores, radial mounting and a removable center bridge. Type 7416 pads fit the friction cavity, while each rotor-width and piston-area combination must be matched to the complete brake system.
Technical Details
- Manufacturer part number: 120-14540-BK
- Component: Wilwood Forged Narrow Superlite 6R; one caliper
- Mounting: Left hand; Radial; 5.98-inch centers; 0.39-inch mounting holes
- Piston arrangement: 6 pistons; 1.75/1.25/1.25-inch bores; stainless steel
- Hydraulic piston area: 4.86 square inches, as specified by Wilwood
- Rotor width: 1.10-inch nominal; 1.00–1.10-inch permitted range
- Rotor diameter range: 11.75–14.00 inches
- Pad shape: Wilwood type 7416; compound selected separately
- Body and finish: Forged aluminum; Black Powder Coat
- Fluid inlet: 1/8-27 NPT
- Dust boots: No
- Mount height: 1.45 inches
Fitment & Compatibility
Select pads by the specified friction shape and intended operating temperature. Check the wheel template with the actual rotor, hat and bracket before finalizing the installation.
This listing covers one caliper. Match the brake pads, rotor, hose and mounting arrangement to the complete brake system.
