Product details

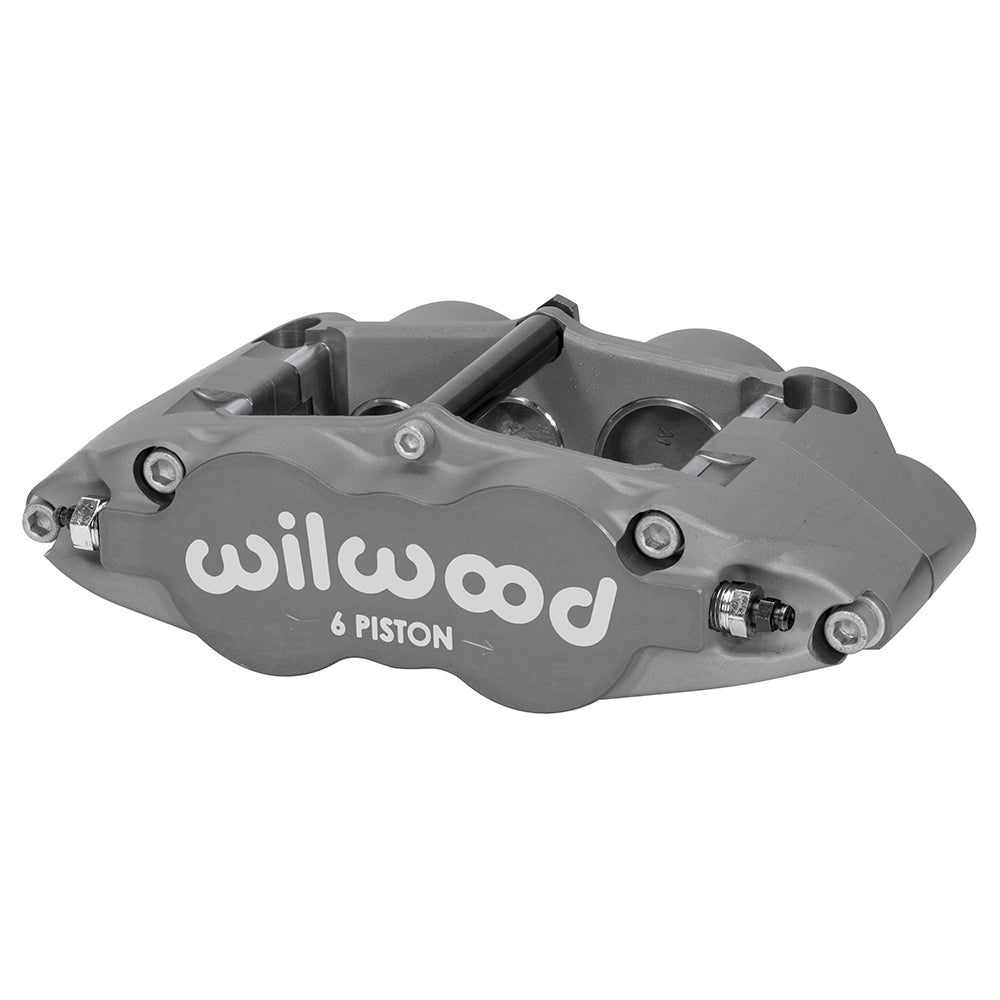

Type III Anodized finish and 1.75/1.25/1.25-inch bores distinguish this Wilwood Forged Narrow Superlite 6R configuration. It is a left-hand 6-piston brake caliper for 1.10-inch-wide rotors, with 5.98-inch radial attachment centers. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company makes disc brake systems and components, including calipers, rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications.
The six-piston narrow Superlite has differential bores, radial mounting and a removable center bridge. Type 7416 pads fit the friction cavity, while each rotor-width and piston-area combination must be matched to the complete brake system.
Technical Details
- Manufacturer part number: 120-14540
- Component: Wilwood Forged Narrow Superlite 6R; one caliper
- Mounting: Left hand; Radial; 5.98-inch centers; 0.39-inch mounting holes
- Piston arrangement: 6 pistons; 1.75/1.25/1.25-inch bores; stainless steel
- Hydraulic piston area: 4.86 square inches, as specified by Wilwood
- Rotor width: 1.10-inch nominal; 1.00–1.10-inch permitted range
- Rotor diameter range: 11.75–14.00 inches
- Pad shape: Wilwood type 7416; compound selected separately
- Body and finish: Forged aluminum; Type III anodized
- Fluid inlet: 1/8-27 NPT
- Dust boots: No
- Mount height: 1.45 inches
Fitment & Compatibility
Compare the existing caliper’s piston area, rotor capacity and mounting pattern. Matching the body family alone does not guarantee that the replacement will clear the wheel or preserve pedal travel.
This listing covers one caliper. Match the brake pads, rotor, hose and mounting arrangement to the complete brake system.
For a brake system assembled from individual components, PMB Performance brings over 20 years of experience. Contact us with the rotor, caliper and bracket information so we can help check the combination.
