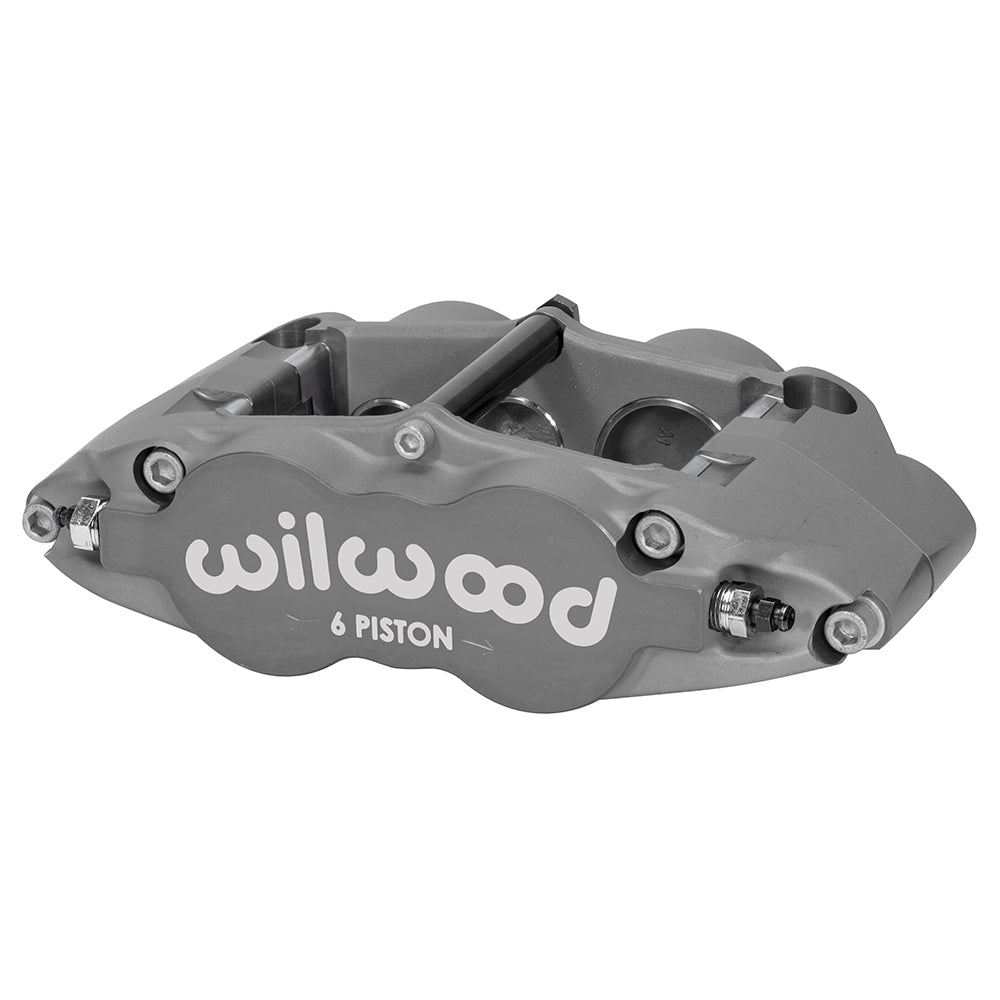

Wilwood right FNSL6R type iii anodized caliper, 1.10-inch rotor width, 1.75/1.25/1.25-inch bores: angled logo side and open pad channel

Wilwood Type III Anodized Right FNSL6R Brake Caliper with 5.98-Inch Radial Centers and 1.75/1.25/1.25-Inch Bores

SKU: 120-14539

$430.93 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

A 6-piston Wilwood Forged Narrow Superlite 6R for right-hand installation, this Type III anodized caliper works around a nominally 1.10-inch-wide rotor. Its 1.75/1.25/1.25-inch bore configuration and 5.98-inch radial centers are the principal dimensions to compare. Bill Wood founded Wilwood Engineering in 1977. Based in Camarillo, California, Wilwood designs and manufactures disc brake systems and parts for motorsport, street-performance and specialized applications, from calipers and rotors to master cylinders, valves, fittings and brake lines.

Technical Details

  • Manufacturer part number: 120-14539
  • Mounting: Right hand; Radial; 5.98-inch centers; 0.39-inch mounting holes
  • Mount height: 1.45 inches
  • Rotor width: 1.10-inch nominal; 1.00–1.10-inch permitted range
  • Rotor diameter range: 11.75–14.00 inches
  • Pad shape: Wilwood type 7416; compound selected separately
  • Piston arrangement: 6 pistons; 1.75/1.25/1.25-inch bores; stainless steel
  • Hydraulic piston area: 4.86 square inches, as specified by Wilwood
  • Body and finish: Forged aluminum; Type III anodized
  • Fluid inlet: 1/8-27 NPT
  • Dust boots: No
  • Component: Wilwood Forged Narrow Superlite 6R; one caliper

The six-piston narrow Superlite has differential bores, radial mounting and a removable center bridge. Type 7416 pads fit the friction cavity, while each rotor-width and piston-area combination must be matched to the complete brake system.

Fitment & Compatibility

Check the caliper-to-bracket attachment and rotor offset before ordering. Changing piston diameter changes hydraulic requirements even when a different caliper shares the same bolt spacing.

This listing covers one caliper. Match the brake pads, rotor, hose and mounting arrangement to the complete brake system.

For a brake system assembled from individual components, PMB Performance brings over 20 years of experience. Contact us with the rotor, caliper and bracket information so we can help check the combination.
