Product details

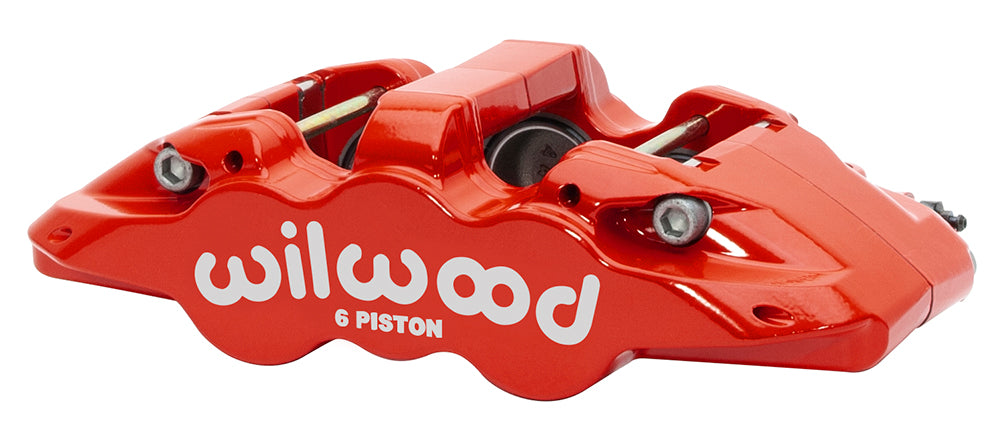

Red finish and 1.75/1.38/1.38-inch bores distinguish this Wilwood AERO6 Dust Seal configuration. It is a right-hand 6-piston brake caliper for 1.25-inch-wide rotors, with 7.09-inch radial attachment centers. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company makes disc brake systems and components, including calipers, rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications.
Technical Details
- Manufacturer part number: 120-14444-RD
- Component: Wilwood AERO6 Dust Seal; one caliper
- Rotor width: 1.25-inch nominal; 1.10–1.28-inch permitted range
- Rotor diameter range: 12.19–15.00 inches
- Mounting: Right hand; Radial; 7.09-inch centers; 0.45-inch mounting holes
- Mount height: 2.09 inches
- Piston arrangement: 6 pistons; 1.75/1.38/1.38-inch bores; stainless steel
- Hydraulic piston area: 5.40 square inches, as specified by Wilwood
- Pad shape: Wilwood type 6617; compound selected separately
- Body and finish: Forged aluminum; Red Powder Coat
- Dust boots: Yes
- Fluid inlet: 1/8-27 NPT
Fitment & Compatibility
Use the intended rotor and bracket dimensions to establish compatibility. The chosen pad compound, master-cylinder volume and brake balance must be considered with this caliper’s piston sizes.
This listing covers one caliper. Match the brake pads, rotor, hose and mounting arrangement to the complete brake system.
The dust-seal AERO6 is a six-piston caliper with differential bores and internal fluid transfer. Radial attachment allows bracket alignment in two planes; piston area and rotor-width capacity remain specific to the selected configuration.
