Product details

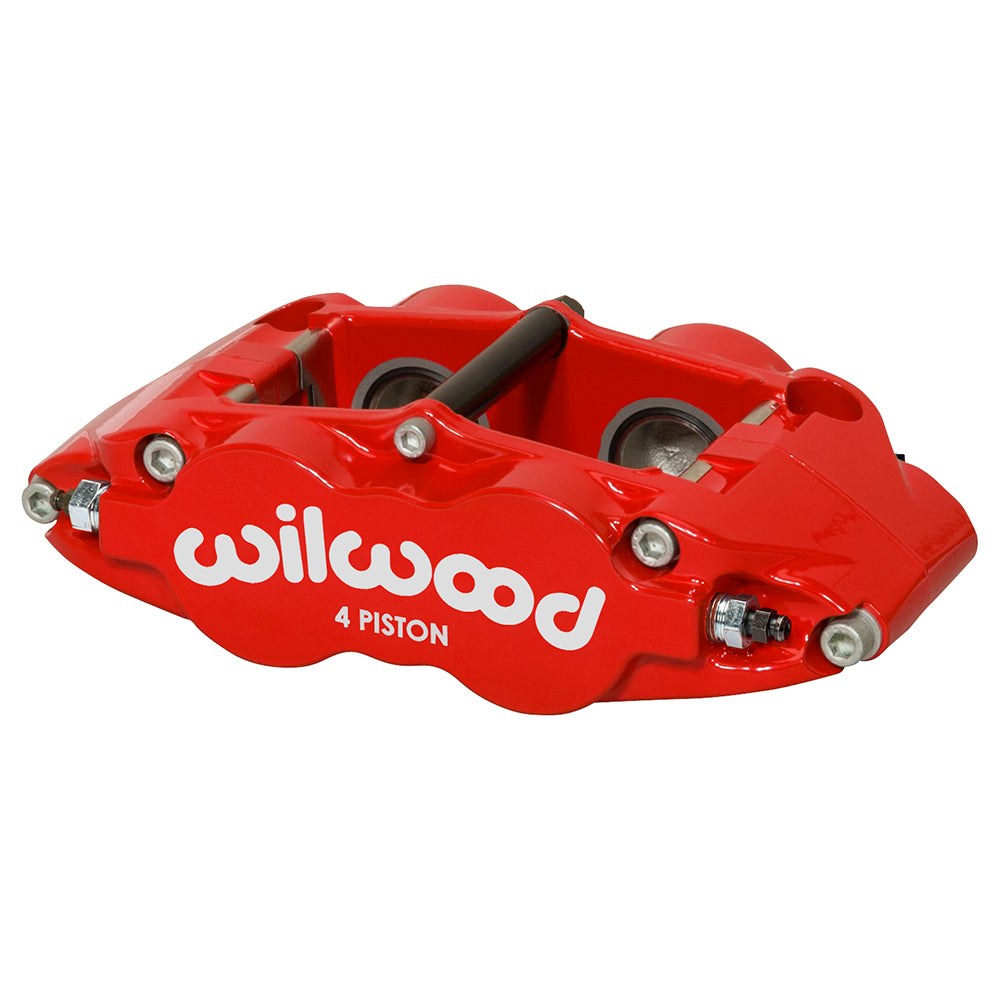

Red finish and 1.25-inch bores distinguish this Wilwood Forged Narrow Superlite 4R Dust Seal configuration. It is a 4-piston brake caliper for 1.10-inch-wide rotors, with 5.98-inch radial attachment centers. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company makes disc brake systems and components, including calipers, rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications.
The dust-seal Superlite 4R uses four equal-bore pistons and a radial mounting pattern. Its piston wipers provide environmental sealing; they do not replace the need to select pads, fluid and rotor dimensions for the intended service.
Technical Details
- Manufacturer part number: 120-14439-RD
- Component: Wilwood Forged Narrow Superlite 4R Dust Seal; one caliper
- Body and finish: Forged aluminum; Red Powder Coat
- Dust boots: Yes
- Piston arrangement: 4 pistons; 1.25-inch bores; stainless steel
- Hydraulic piston area: 2.46 square inches, as specified by Wilwood
- Mounting: universal side configuration; Radial; 5.98-inch centers; 0.39-inch mounting holes
- Mount height: 1.45 inches
- Fluid inlet: 1/8-27 NPT
- Pad shape: Wilwood type 7416; compound selected separately
- Rotor width: 1.10-inch nominal; 1.00–1.10-inch permitted range
- Rotor diameter range: 11.75–14.00 inches
Fitment & Compatibility
Use the intended rotor and bracket dimensions to establish compatibility. The chosen pad compound, master-cylinder volume and brake balance must be considered with this caliper’s piston sizes.
This listing covers one caliper. Match the brake pads, rotor, hose and mounting arrangement to the complete brake system.
