Product details

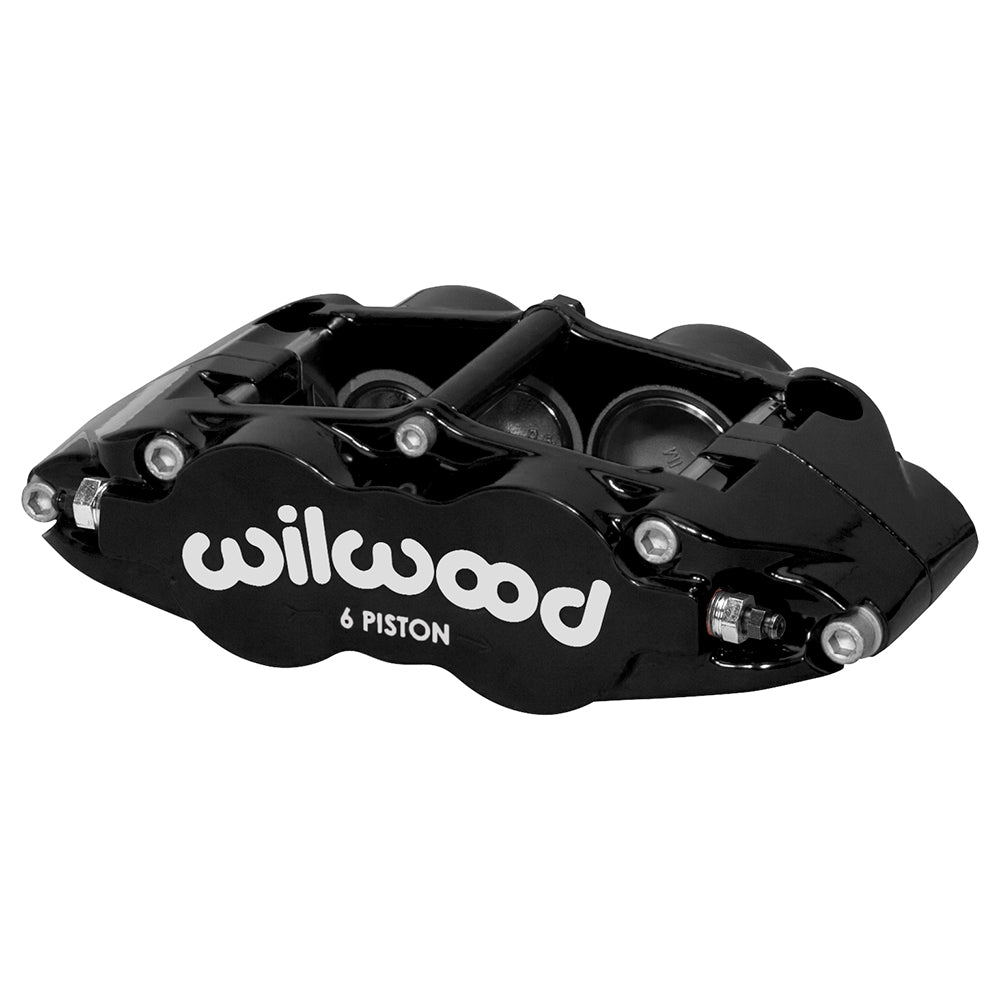

Match this black Wilwood Forged Narrow Superlite 6R Dust Seal to a brake assembly requiring 1.10-inch rotor width and 1.62/1.12/1.12-inch pistons. The right-hand 6-piston caliper uses 5.98-inch radial mounting rather than a vehicle-specific adapter supplied as a kit. Wilwood Engineering’s disc brake range includes calipers, rotors, master cylinders, valves, fittings and brake lines. Bill Wood founded the company in 1977 in California; it is based in Camarillo and serves motorsport, street-performance and specialized brake applications.
This six-piston narrow Superlite combines radial attachment with piston dust wipers. Differential bores distribute pad loading, while the 7416 pad shape and exact rotor-width version determine the mating friction components.
Technical Details
- Manufacturer part number: 120-14436-BK
- Component: Wilwood Forged Narrow Superlite 6R Dust Seal; one caliper
- Body and finish: Forged aluminum; Black Powder Coat
- Dust boots: Yes
- Piston arrangement: 6 pistons; 1.62/1.12/1.12-inch bores; stainless steel
- Hydraulic piston area: 4.04 square inches, as specified by Wilwood
- Mounting: Right hand; Radial; 5.98-inch centers; 0.39-inch mounting holes
- Mount height: 1.45 inches
- Fluid inlet: 1/8-27 NPT
- Pad shape: Wilwood type 7416; compound selected separately
- Rotor width: 1.10-inch nominal; 1.00–1.10-inch permitted range
- Rotor diameter range: 11.75–14.00 inches
Fitment & Compatibility
Identify the existing mounting bracket and compare its caliper centerline, hole spacing and radial position. Verify the piston configuration against the hydraulic system specification.
This listing covers one caliper. Match the brake pads, rotor, hose and mounting arrangement to the complete brake system.
PMB Performance’s team has over 20 years of experience with brake components and fitment. We can help review this caliper against the dimensions and hydraulic requirements of your brake system.
