Product details

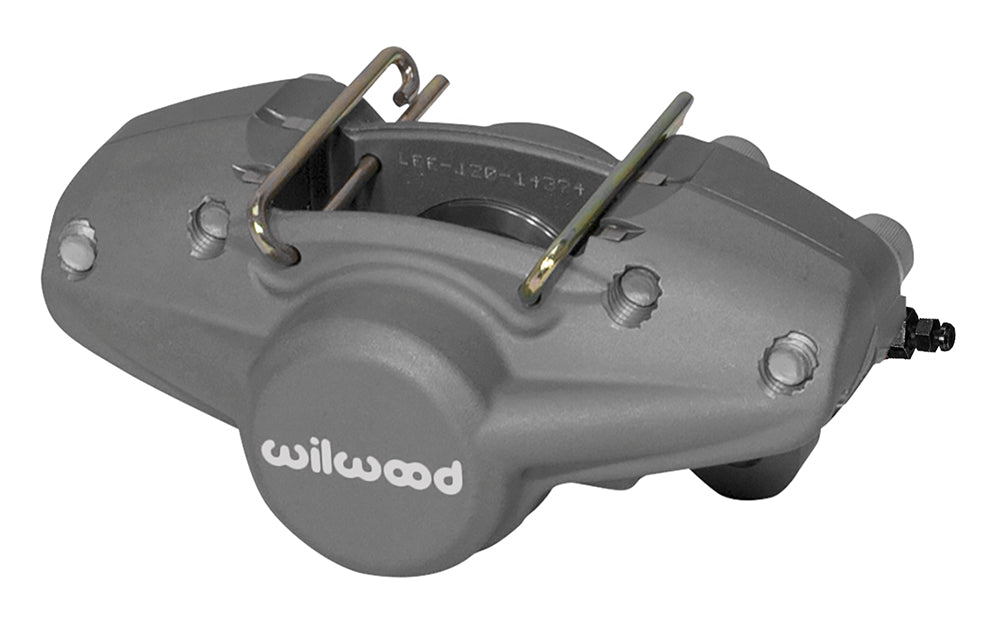

Type III Anodized finish and 1.62-inch bores distinguish this Wilwood WLD-19 configuration. It is a 2-piston brake caliper for 0.28-inch-wide rotors, with 3.50-inch lug attachment centers. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company makes disc brake systems and components, including calipers, rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications.
WLD-19 calipers replace the traditional LD-19 mounting layout in formula-category racing brakes. Their lug centers, mount height and offset are intended for that layout, and the friction shape is Wilwood type 5310.
Technical Details
- Manufacturer part number: 120-14374
- Component: Wilwood WLD-19; one caliper
- Piston arrangement: 2 pistons; 1.62-inch bores; Thermlock
- Hydraulic piston area: 2.06 square inches, as specified by Wilwood
- Pad shape: Wilwood type 5310; compound selected separately
- Mounting: universal side configuration; Lug; 3.50-inch centers; 0.39-inch mounting holes
- Mount height: 1.76 inches
- Rotor width: 0.28-inch nominal; 0.22–0.28-inch permitted range
- Rotor diameter range: 10.00 inches
- Fluid inlet: 3/8-24
- Dust boots: No
- Body and finish: Forged aluminum; Type III anodized
Fitment & Compatibility
This caliper is for the traditional LD-19 competition layout. Compare lug height and offset, pad outline and the specified 3/8-24 inlet connection. The mounting arrangement supports either side when the bleeder is correctly positioned.
This listing covers one caliper. Match the brake pads, rotor, hose and mounting arrangement to the complete brake system.
Ask PMB Performance for help comparing this caliper with your existing assembly. Our over 20 years of experience are most useful when you provide rotor size, mounting details and the current piston configuration.
