Product details

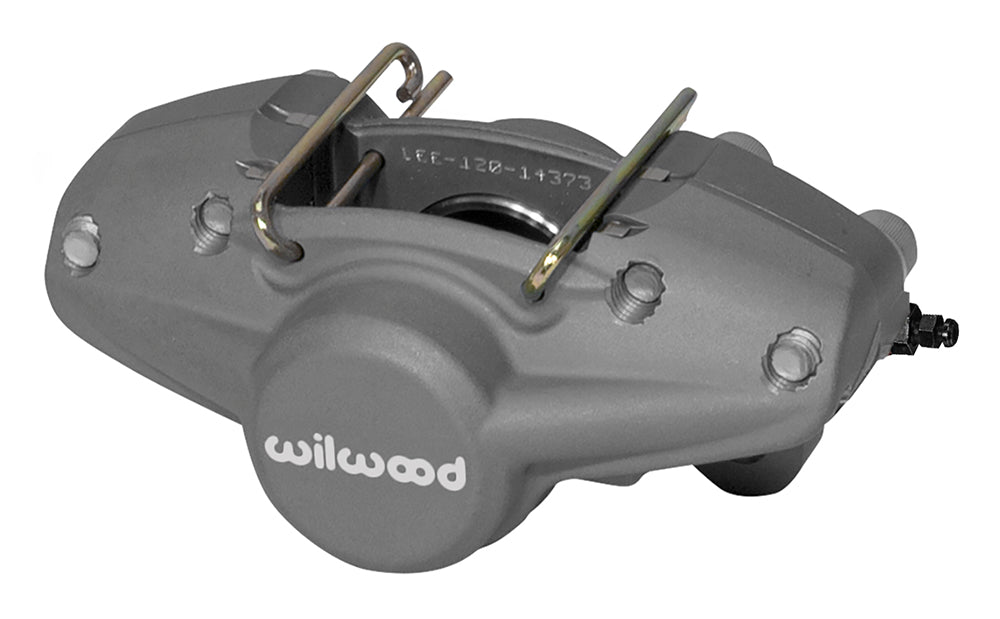

Choose this Wilwood WLD-19 when the installation calls for 1.62-inch pistons and 0.28-inch rotor width. The Type III anodized 2-piston body uses a 3.50-inch lug pattern; check its complete geometry before substituting another caliper. Bill Wood founded Wilwood Engineering in 1977. Based in Camarillo, California, Wilwood designs and manufactures disc brake systems and parts for motorsport, street-performance and specialized applications, from calipers and rotors to master cylinders, valves, fittings and brake lines.
Technical Details
- Manufacturer part number: 120-14373
- Component: Wilwood WLD-19; one caliper
- Rotor width: 0.28-inch nominal; 0.22–0.28-inch permitted range
- Rotor diameter range: 10.00 inches
- Mounting: universal side configuration; Lug; 3.50-inch centers; 0.39-inch mounting holes
- Mount height: 1.76 inches
- Piston arrangement: 2 pistons; 1.62-inch bores; stainless steel
- Hydraulic piston area: 2.06 square inches, as specified by Wilwood
- Pad shape: Wilwood type 5310; compound selected separately
- Body and finish: Forged aluminum; Type III anodized
- Dust boots: No
- Fluid inlet: 3/8-24
WLD-19 calipers replace the traditional LD-19 mounting layout in formula-category racing brakes. Their lug centers, mount height and offset are intended for that layout, and the friction shape is Wilwood type 5310.
Fitment & Compatibility
This caliper is for the traditional LD-19 competition layout. Compare lug height and offset, pad outline and the specified 3/8-24 inlet connection. The mounting arrangement supports either side when the bleeder is correctly positioned.
This listing covers one caliper. Match the brake pads, rotor, hose and mounting arrangement to the complete brake system.
