Product details

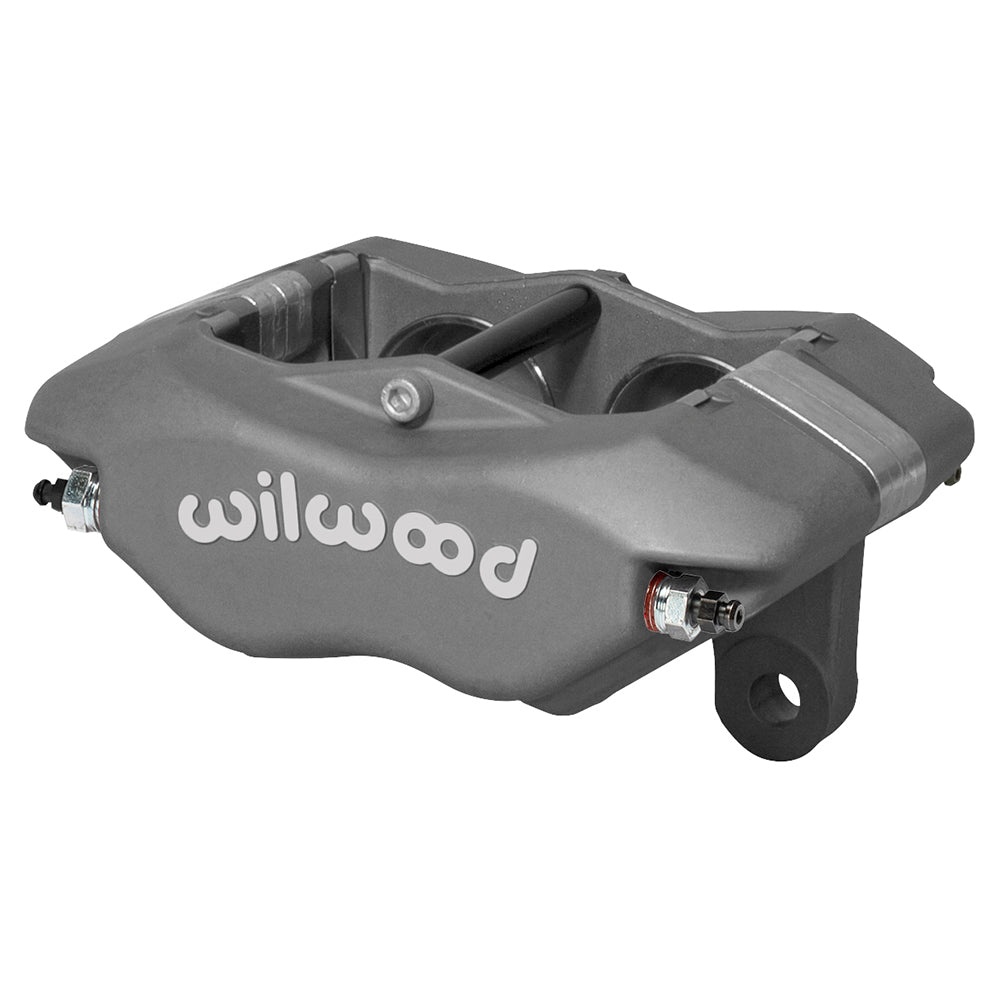

This Wilwood Forged Narrow Dynalite is a 4-piston brake caliper with a Type III anodized finish for a nominally 1.00-inch-wide rotor. Its 3.50-inch lug mounting centers and 1.62-inch piston bores must match the brake assembly. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company makes disc brake systems and components, including calipers, rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications.
The Forged Narrow Dynalite is a four-piston competition caliper with 3.50-inch lug mounting centers. Top-loading pads and internal fluid passages simplify service, while the narrow mounting pattern must match the existing tabs or bracket.
Technical Details
- Manufacturer part number: 120-14332
- Component: Wilwood Forged Narrow Dynalite; one caliper
- Piston arrangement: 4 pistons; 1.62-inch bores; stainless steel
- Hydraulic piston area: 4.12 square inches, as specified by Wilwood
- Pad shape: Wilwood types 7816 / 7216; compound selected separately
- Mounting: universal side configuration; Lug; 3.50-inch centers; 0.45-inch mounting holes
- Mount height: 2.85 inches
- Rotor width: 1.00-inch nominal; 0.94–1.00-inch permitted range
- Rotor diameter range: 11.75–12.72 inches
- Fluid inlet: 1/8-27 NPT
- Dust boots: No
- Body and finish: Forged aluminum; Type III anodized
Fitment & Compatibility
For a replacement, compare the entire caliper specification rather than the finish or logo. On an adapted system, establish rotor alignment and piston-area requirements before choosing the mounting bracket.
This listing covers one caliper. Match the brake pads, rotor, hose and mounting arrangement to the complete brake system.
