Product details

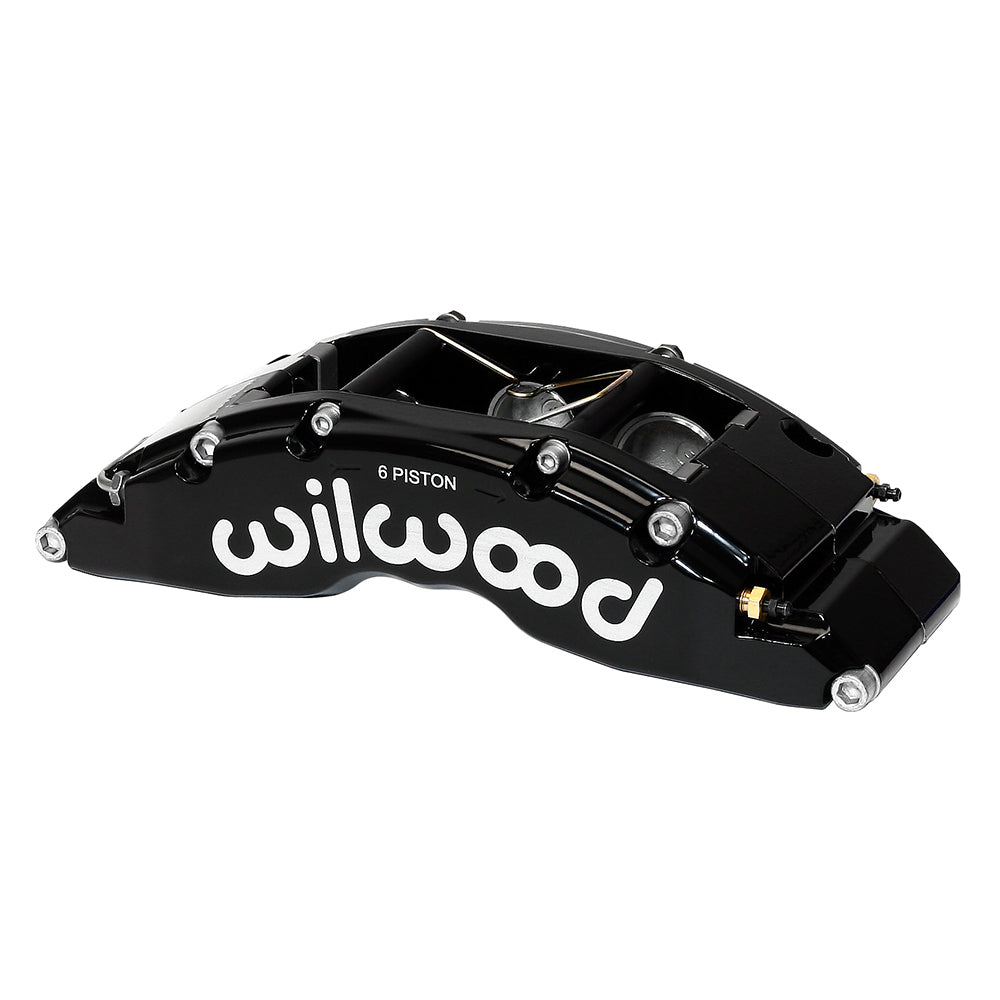

The 8.27-inch radial pattern identifies the attachment layout of this Wilwood TC6R. This right-hand black caliper has 6 pistons, 1.88/1.62/1.62-inch bores and a 1.38-inch nominal rotor-width specification. Wilwood Engineering’s disc brake range includes calipers, rotors, master cylinders, valves, fittings and brake lines. Bill Wood founded the company in 1977 in California; it is based in Camarillo and serves motorsport, street-performance and specialized brake applications.
Wilwood specifies front mount clocking for this right-hand caliper. This is its orientation around the spindle, not a designation of the vehicle’s front or rear axle. Match the intended rotor rotation and upper bleed position.
Technical Details
- Manufacturer part number: 120-14319-FS
- Mounting: Right hand; Radial; 8.27-inch centers; 0.45-inch mounting holes
- Mount height: 2.56 inches
- Rotor width: 1.38-inch nominal; 1.32–1.38-inch permitted range
- Rotor diameter range: 14.00–16.00 inches
- Pad shape: Wilwood type 6318; compound selected separately
- Piston arrangement: 6 pistons; 1.88/1.62/1.62-inch bores; stainless steel
- Hydraulic piston area: 6.90 square inches, as specified by Wilwood
- Body and finish: Forged aluminum; Black Powder Coat
- Fluid inlet: 1/8-27 NPT
- Dust boots: No
- Component: Wilwood TC6R; one caliper
Fitment & Compatibility
Measure the available space at both sides of the rotor, including its hat. Confirm mounting geometry and piston area; rotor width by itself cannot establish a complete brake package.
This listing covers one caliper. Match the brake pads, rotor, hose and mounting arrangement to the complete brake system.
TC6R calipers use six differential-bore stainless pistons in a radial-mount body intended for heavy truck and SUV brake packages. Six bridge bolts join the body, and replaceable steel bridge plates protect the pad abutments.
