Wilwood Red Right TC6R Six-Piston Caliper for Front-Mount Clocking, 1.38-Inch-wide Rotor

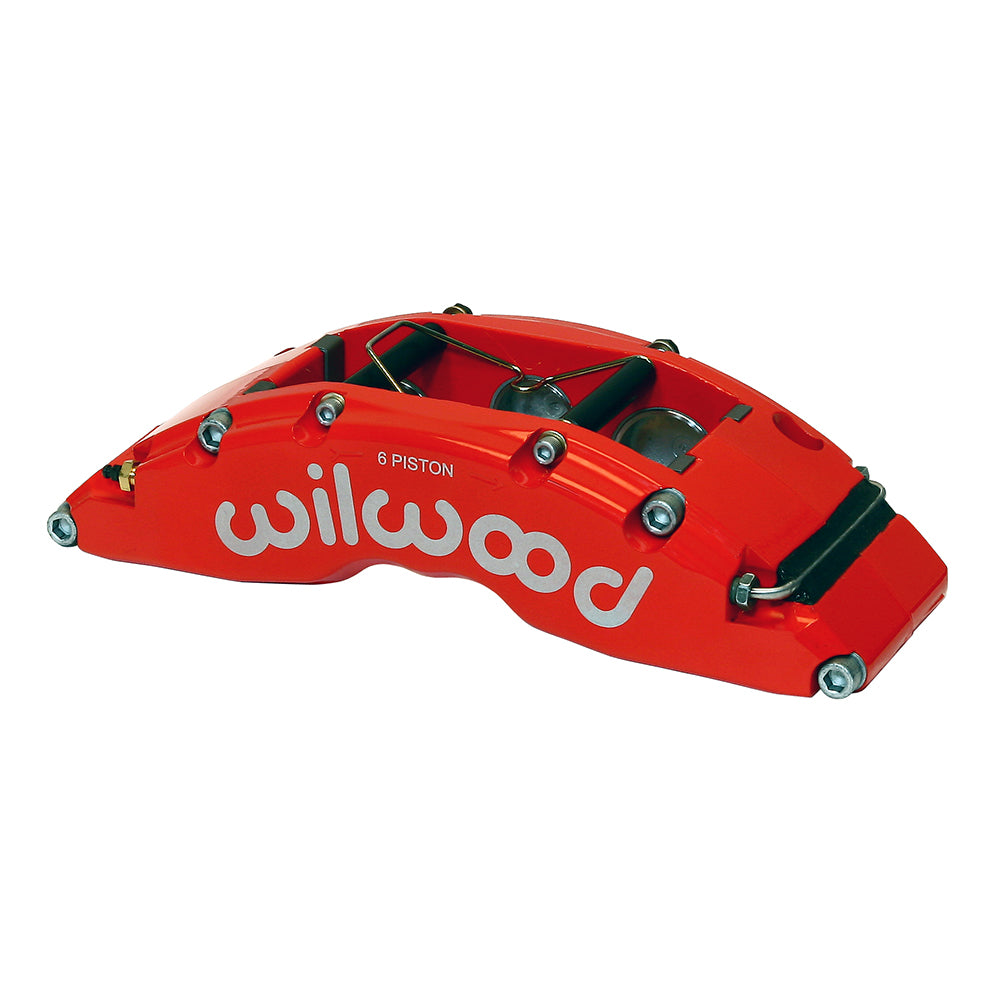

The Wilwood TC6R shown here is specified for 1.38-inch rotor width, 8.27-inch radial mounting and 1.75/1.38/1.38-inch piston bores. This right-hand red 6-piston component is selected by brake-system geometry rather than vehicle year alone. Founded in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering manufactures disc brake components for motorsport, street-performance and specialized uses. Its range covers calipers, rotors, master cylinders, valves, fittings and brake lines.

TC6R calipers use six differential-bore stainless pistons in a radial-mount body intended for heavy truck and SUV brake packages. Six bridge bolts join the body, and replaceable steel bridge plates protect the pad abutments.

Wilwood specifies front mount clocking for this right-hand caliper. This is its orientation around the spindle, not a designation of the vehicle’s front or rear axle. Match the intended rotor rotation and upper bleed position.

Technical Details

• Manufacturer part number: 120-14317-FSR
• Component: Wilwood TC6R; one caliper
• Piston arrangement: 6 pistons; 1.75/1.38/1.38-inch bores; stainless steel
• Hydraulic piston area: 5.40 square inches, as specified by Wilwood
• Pad shape: Wilwood type 6318; compound selected separately
• Mounting: Right hand; Radial; 8.27-inch centers; 0.45-inch mounting holes
• Mount height: 2.56 inches
• Rotor width: 1.38-inch nominal; 1.32–1.38-inch permitted range
• Rotor diameter range: 14.00–16.00 inches
• Fluid inlet: 1/8-27 NPT
• Dust boots: No
• Body and finish: Forged aluminum; Red Powder Coat

Fitment & Compatibility

Compare the installed rotor’s nominal width with this exact caliper version. Before assembly, verify pad sweep, caliper-to-wheel clearance and the hose fitting’s thread and sealing method.

This listing covers one caliper. Match the brake pads, rotor, hose and mounting arrangement to the complete brake system.

With over 20 years of experience, PMB Performance can help compare piston configuration and mounting geometry. Share the existing brake package and measured rotor dimensions before ordering.
