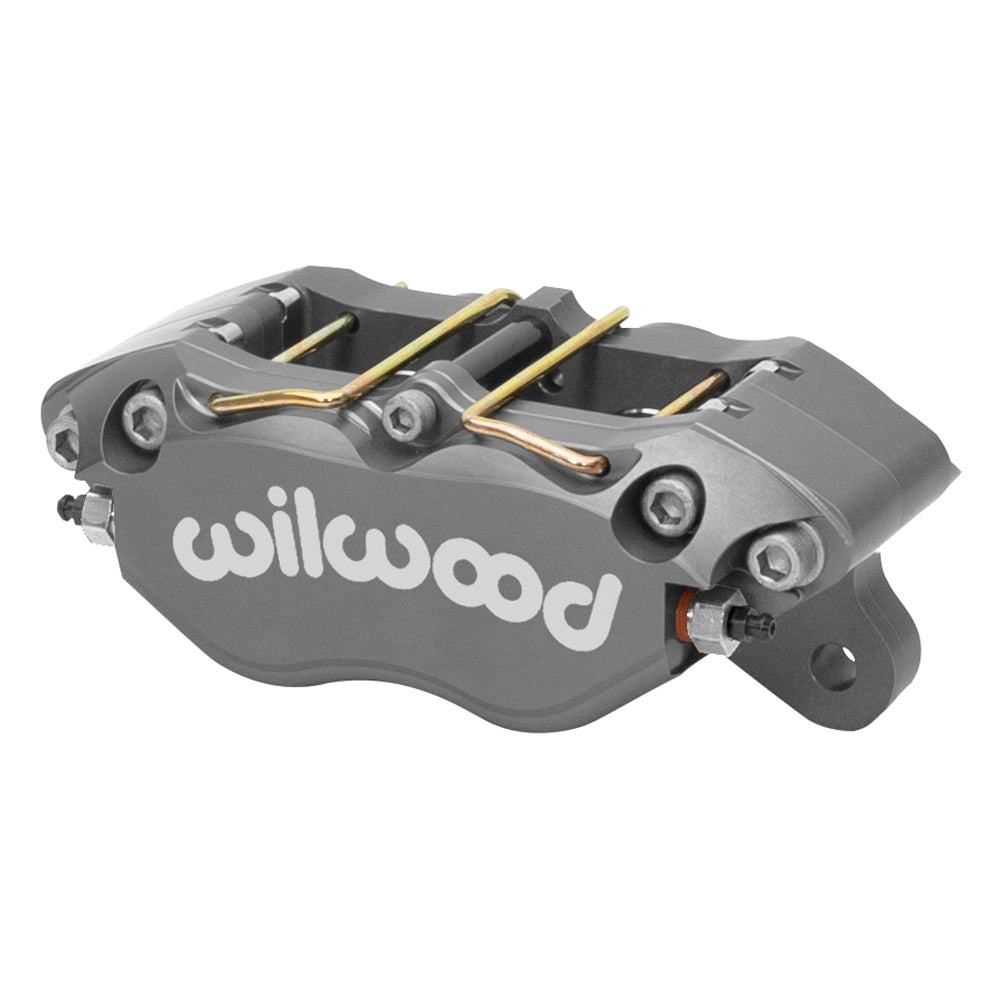

Wilwood Dynapro Lug Mount Brake Caliper for 0.25–0.38-Inch Rotor Thickness, Type III Anodized

For a brake system using a 0.38-inch-wide rotor, this Type III anodized Wilwood Dynapro Lug Mount provides 4 pistons with 1.38-inch bores. The caliper attaches on 5.25-inch lug centers. Founded in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering manufactures disc brake components for motorsport, street-performance and specialized uses. Its range covers calipers, rotors, master cylinders, valves, fittings and brake lines.

The lug-mount Dynapro combines four pistons, internal fluid passages and top-access type 7812 pads. Its 5.25-inch mounting centers support adapted brake systems, with rotor offset and hydraulic balance checked separately.

Technical Details

• Manufacturer part number: 120-14182
• Component: Wilwood Dynapro Lug Mount; one caliper
• Mounting: universal side configuration; Lug; 5.25-inch centers; 0.39-inch mounting holes
• Piston arrangement: 4 pistons; 1.38-inch bores; stainless steel
• Hydraulic piston area: 3.00 square inches, as specified by Wilwood
• Rotor width: 0.38-inch nominal; 0.25–0.38-inch permitted range
• Rotor diameter range: 10.00–13.06 inches
• Pad shape: Wilwood type 7812; compound selected separately
• Body and finish: Forged aluminum; Type III anodized
• Fluid inlet: 1/8-27 NPT
• Dust boots: No
• Mount height: 2.10 inches

Fitment & Compatibility

Check pad depth against the rotor’s usable friction annulus. Rotor-hat clearance, mounting offset and the wheel’s inner profile must also be checked with the caliper drawing.

This listing covers one caliper. Match the brake pads, rotor, hose and mounting arrangement to the complete brake system.

PMB Performance’s team has over 20 years of experience with brake components and fitment. We can help review this caliper against the dimensions and hydraulic requirements of your brake system.
