Product details

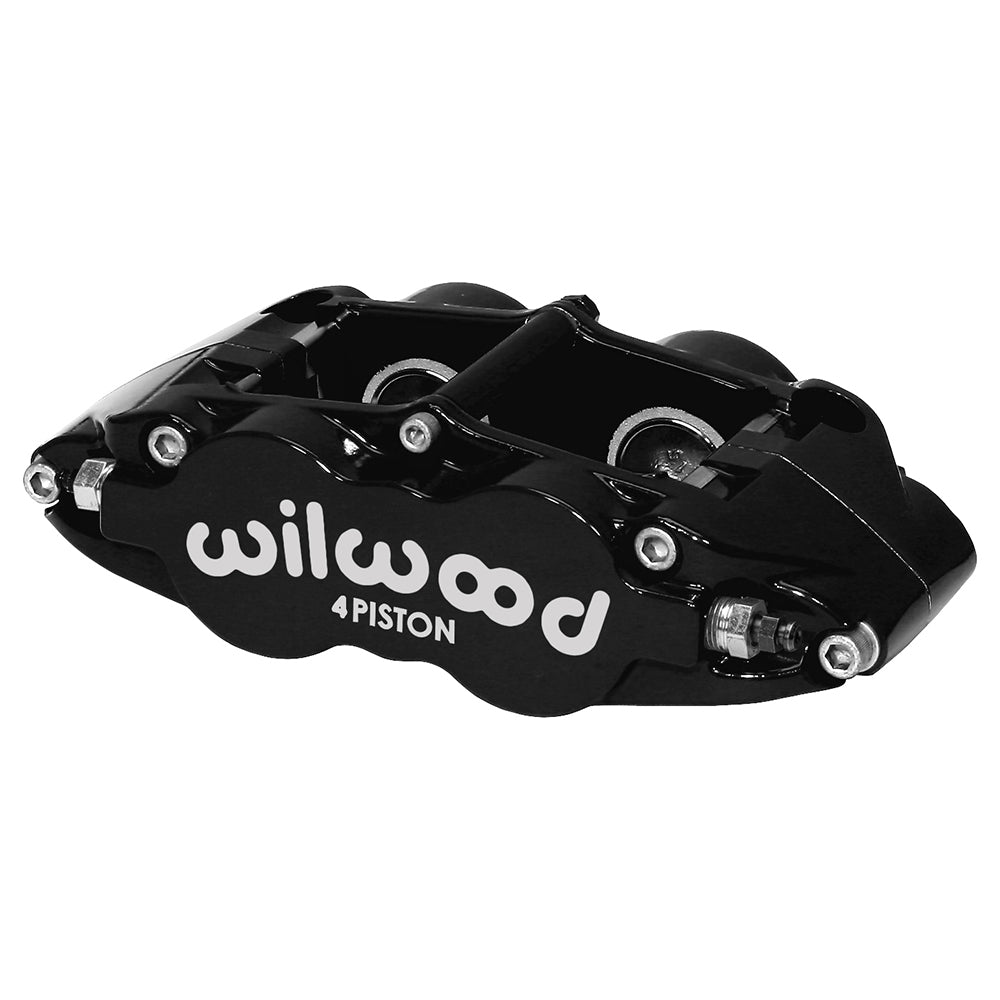

The 5.98-inch radial pattern identifies the attachment layout of this Wilwood Forged Narrow Superlite 4R. This black caliper has 4 pistons, 1.38-inch bores and a 1.10-inch nominal rotor-width specification. Wilwood Engineering’s disc brake range includes calipers, rotors, master cylinders, valves, fittings and brake lines. Bill Wood founded the company in 1977 in California; it is based in Camarillo and serves motorsport, street-performance and specialized brake applications.
Technical Details
- Manufacturer part number: 120-14056-BK
- Component: Wilwood Forged Narrow Superlite 4R; one caliper
- Pad shape: Wilwood type 7416; compound selected separately
- Rotor width: 1.10-inch nominal; 1.00–1.10-inch permitted range
- Rotor diameter range: 11.75–14.00 inches
- Mounting: universal side configuration; Radial; 5.98-inch centers; 0.39-inch mounting holes
- Mount height: 1.45 inches
- Piston arrangement: 4 pistons; 1.38-inch bores; stainless steel
- Hydraulic piston area: 3.00 square inches, as specified by Wilwood
- Fluid inlet: 1/8-27 NPT
- Body and finish: Forged aluminum; Black Powder Coat
- Dust boots: No
Fitment & Compatibility
The bracket must center the caliper over the rotor and locate the friction material at the correct radius. Check hose routing and bleed orientation through the full suspension and steering movement.
This listing covers one caliper. Match the brake pads, rotor, hose and mounting arrangement to the complete brake system.
The narrow Superlite 4R has four pistons, radial attachment and removable center bridge access to type 7416 pads. Check the specific rotor-width version before ordering another caliper from the same family.
With over 20 years of experience, PMB Performance can help compare piston configuration and mounting geometry. Share the existing brake package and measured rotor dimensions before ordering.
