Product details

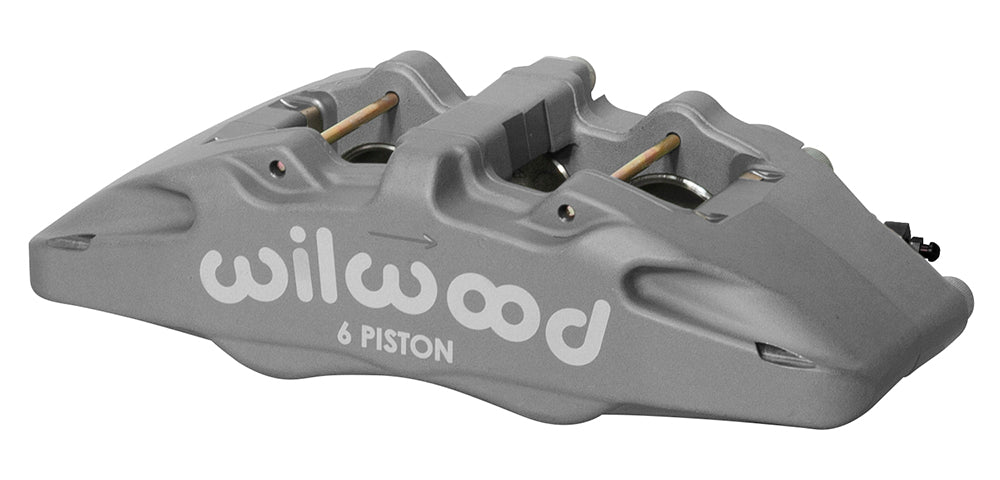

Type III Anodized finish and 1.62/1.38/1.38-inch bores distinguish this Wilwood Forged Dynapro 6A configuration. It is a right-hand 6-piston brake caliper for 0.81-inch-wide rotors, with 5.25-inch lug attachment centers. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company makes disc brake systems and components, including calipers, rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications.
Technical Details
- Manufacturer part number: 120-14021
- Component: Wilwood Forged Dynapro 6A; one caliper
- Rotor width: 0.81-inch nominal; 0.75–0.83-inch permitted range
- Rotor diameter range: 10.00–13.00 inches
- Mounting: Right hand; Lug; 5.25-inch centers; 0.39-inch mounting holes
- Mount height: 2.03 inches
- Piston arrangement: 6 pistons; 1.62/1.38/1.38-inch bores; Thermlock
- Hydraulic piston area: 5.06 square inches, as specified by Wilwood
- Pad shape: Wilwood type 6712; compound selected separately
- Body and finish: Forged aluminum; Type III anodized
- Dust boots: No
- Fluid inlet: 1/8-27 NPT
The DP6A combines a six-piston differential-bore arrangement with a reinforced bridge and 5.25-inch lug mounting. Check piston area as well as rotor width when replacing an earlier Dynapro or Dynalite caliper.
Fitment & Compatibility
Compare the existing caliper’s piston area, rotor capacity and mounting pattern. Matching the body family alone does not guarantee that the replacement will clear the wheel or preserve pedal travel.
This listing covers one caliper. Match the brake pads, rotor, hose and mounting arrangement to the complete brake system.
PMB Performance has over 20 years of brake and parts experience. Send us the caliper specifications, rotor measurements and bracket details if you need help selecting the correct component.
