Product details

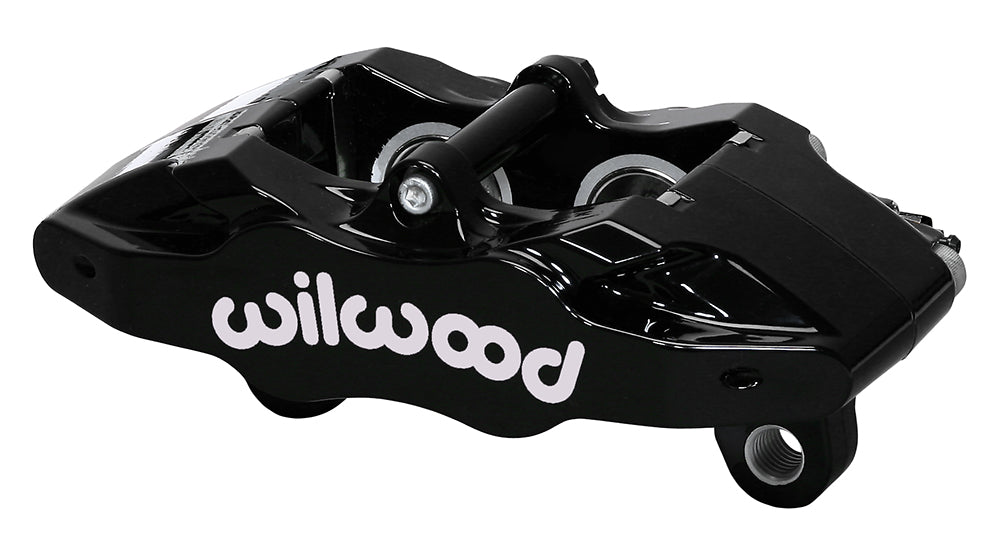

This black Wilwood DPC56 replaces the rear caliper on 1997–2004 Corvette C5 and 2005–2013 base C6 models retaining the specified original 12.00-inch rear rotor arrangement. Four 1.25-inch stainless pistons operate in a forged aluminum body that mounts in the stock location. Match the rotor and brake package before installation. Bill Wood founded Wilwood Engineering in 1977. Based in Camarillo, California, Wilwood designs and manufactures disc brake systems and parts for motorsport, street-performance and specialized applications, from calipers and rotors to master cylinders, valves, fittings and brake lines.
Technical Details
- Manufacturer part number: 120-13916-BK
- Mounting: universal side configuration; Lug; 5.04-inch centers
- Rotor width: 1.04-inch nominal; 0.98–1.04-inch permitted range
- Rotor diameter range: 12.00 inches
- Pad shape: Wilwood type 4812; compound selected separately
- Piston arrangement: 4 pistons; 1.25-inch bores; stainless steel
- Hydraulic piston area: 2.46 square inches, as specified by Wilwood
- Body and finish: Forged aluminum; Black Powder Coat
- Fluid inlet: M10 x 1.00
- Dust boots: No
- Component: Wilwood DPC56; one caliper
Fitment & Compatibility
Fits the rear brakes on Chevrolet Corvette C5 (1997–2004) and base Corvette C6 (2005–2013) using 12.00-inch factory rotors. Excludes C6 Z06, ZR1 and Grand Sport brake packages. Confirm original spindle and rotor configuration, banjo hose routing and wheel clearance.
This listing covers one caliper. Match the brake pads, rotor, hose and mounting arrangement to the complete brake system.
DPC56 rear calipers attach directly to Corvette C5 and base C6 spindles with the original 12.00-inch rear rotor package. The four-piston fixed body accepts original banjo-style hoses; it does not turn a different Corvette brake package into this configuration.
