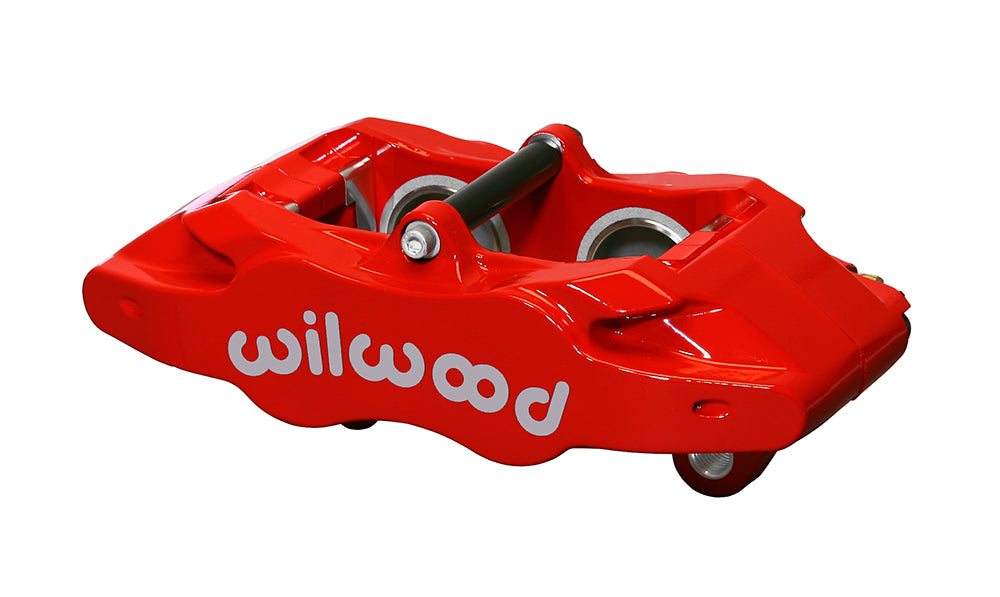

Wilwood Front SLC56 Brake Caliper for Corvette C5 (1997–2004) / Base C6 (2005–2013), Red

Restore or update the original front caliper arrangement on a 1997–2004 Corvette C5 or 2005–2013 base C6 with this red Wilwood SLC56. The four-piston caliper is designed around the factory 12.80-inch-diameter front rotor package, with 1.62-inch stainless piston bores and stock-location mounting. Other C6 brake packages require a separate fitment check. Bill Wood founded Wilwood Engineering in 1977. Based in Camarillo, California, Wilwood designs and manufactures disc brake systems and parts for motorsport, street-performance and specialized applications, from calipers and rotors to master cylinders, valves, fittings and brake lines.

The fixed four-piston SLC56 replaces the front floating caliper on Corvette C5 models and base C6 models with the original 12.80-inch rotor package. It bolts to the Corvette spindle without a separate adapter and accepts the original banjo-style hose connection.

Technical Details

• Manufacturer part number: 120-13915-RD
• Component: Wilwood SLC56; one caliper
• Piston arrangement: 4 pistons; 1.62-inch bores; stainless steel
• Hydraulic piston area: 4.12 square inches, as specified by Wilwood
• Pad shape: Wilwood type 7416; compound selected separately
• Mounting: universal side configuration; Lug; 5.04-inch centers
• Rotor width: 1.25-inch nominal; 1.19–1.25-inch permitted range
• Rotor diameter range: 12.80 inches
• Fluid inlet: M10 x 1.00
• Dust boots: No
• Body and finish: Forged aluminum; Red Powder Coat

Fitment & Compatibility

Fits the front brakes on Chevrolet Corvette C5 (1997–2004) and base Corvette C6 (2005–2013) using 12.80-inch factory rotors. Excludes C6 Z06, ZR1 and Grand Sport brake packages. Confirm original spindle and rotor configuration, banjo hose routing and wheel clearance.

This listing covers one caliper. Match the brake pads, rotor, hose and mounting arrangement to the complete brake system.

Ask PMB Performance for help comparing this caliper with your existing assembly. Our over 20 years of experience are most useful when you provide rotor size, mounting details and the current piston configuration.
