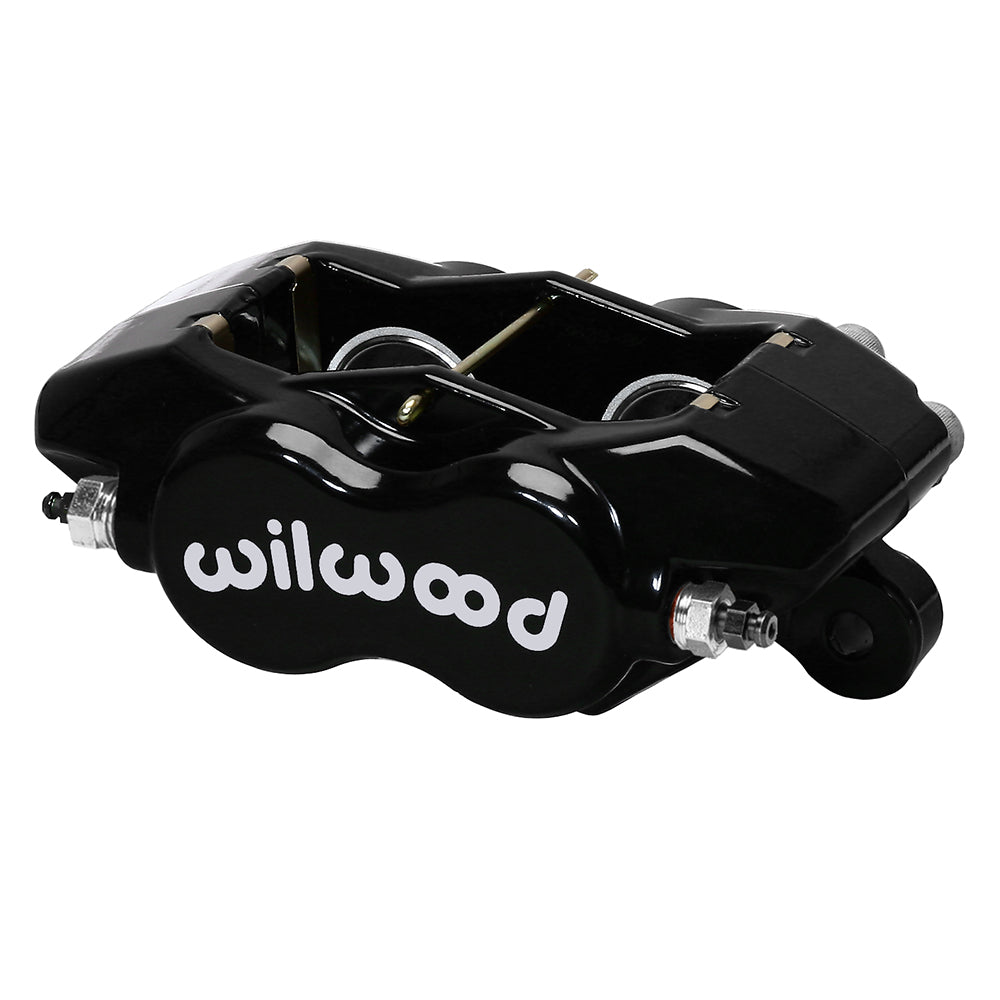

Wilwood Forged Dynalite Internal Brake Caliper, Black / 0.75–0.83-Inch Rotor Width

The black Wilwood Forged Dynalite Internal is a compact four-piston hydraulic caliper with internal fluid passages. This version combines 1.62-inch stainless piston bores with a nominal 0.81-inch rotor width and 5.25-inch lug mounting centers; match those dimensions to the brake assembly. Bill Wood founded Wilwood Engineering in 1977. Based in Camarillo, California, Wilwood designs and manufactures disc brake systems and parts for motorsport, street-performance and specialized applications, from calipers and rotors to master cylinders, valves, fittings and brake lines.

This four-piston Dynalite uses internal fluid transfer in a spacerless body. Its 5.25-inch mounting pattern is only one compatibility dimension: rotor position, body clearance and hydraulic area also need to agree.

Technical Details

• Manufacturer part number: 120-13842-BK
• Component: Wilwood Forged Dynalite Internal; one caliper
• Body and finish: Forged aluminum; Black Powder Coat
• Dust boots: No
• Piston arrangement: 4 pistons; 1.62-inch bores; stainless steel
• Hydraulic piston area: 4.12 square inches, as specified by Wilwood
• Mounting: universal side configuration; Lug; 5.25-inch centers; 0.39-inch mounting holes
• Mount height: 2.03 inches
• Fluid inlet: 1/8-27 NPT
• Pad shape: Wilwood type 7112; compound selected separately
• Rotor width: 0.81-inch nominal; 0.75–0.83-inch permitted range
• Rotor diameter range: 10.00–13.06 inches

Fitment & Compatibility

Confirm rotor diameter as well as thickness, and allow for pad and caliper clearance inside the wheel. The mount pattern is a dimensional requirement rather than a vehicle fitment guarantee.

This listing covers one caliper. Match the brake pads, rotor, hose and mounting arrangement to the complete brake system.
