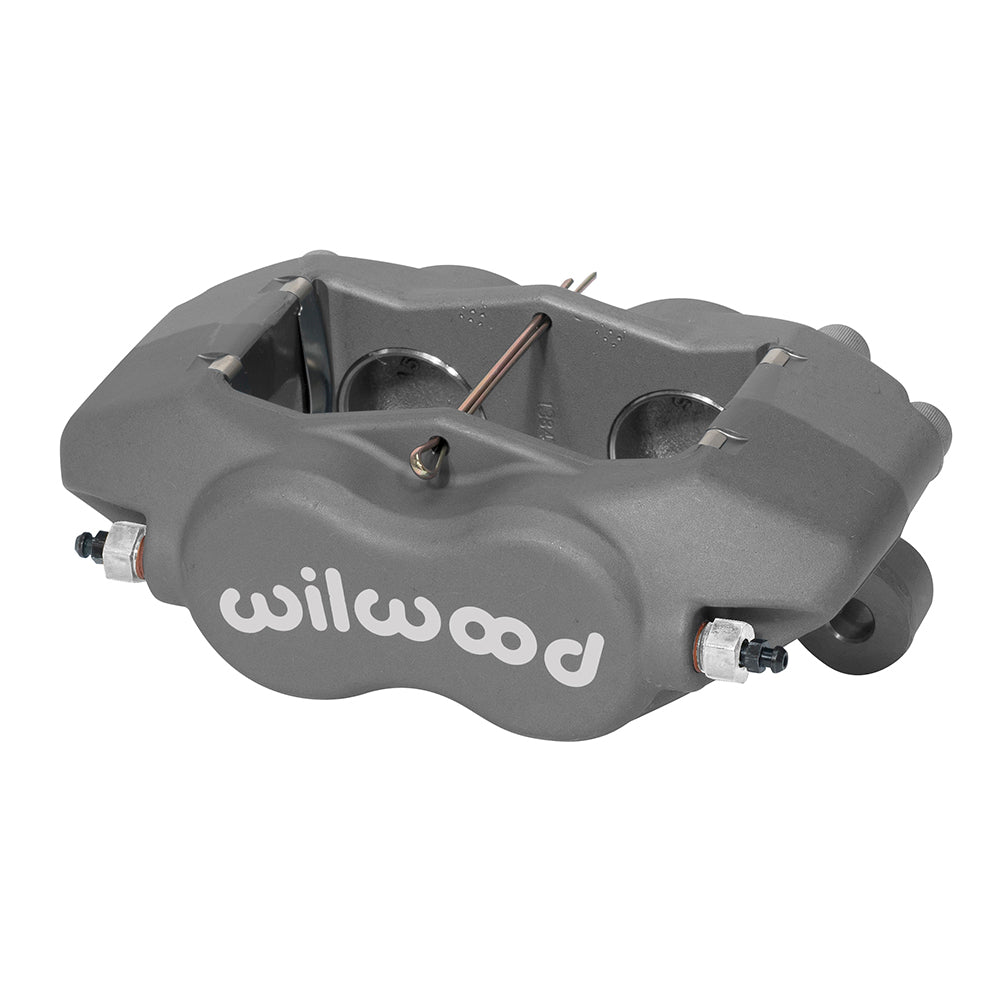

Wilwood Type III Anodized Dynalite Internal Brake Caliper, 1.00-Inch Rotor Width

For a brake system using a 1.00-inch-wide rotor, this Type III anodized Wilwood Forged Dynalite Internal provides 4 pistons with 1.38-inch bores. The caliper attaches on 5.25-inch lug centers. Founded in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering manufactures disc brake components for motorsport, street-performance and specialized uses. Its range covers calipers, rotors, master cylinders, valves, fittings and brake lines.

Technical Details

• Manufacturer part number: 120-13840
• Component: Wilwood Forged Dynalite Internal; one caliper
• Rotor width: 1.00-inch nominal; 0.94–1.04-inch permitted range
• Rotor diameter range: 10.00–13.06 inches
• Mounting: universal side configuration; Lug; 5.25-inch centers; 0.39-inch mounting holes
• Mount height: 2.03 inches
• Piston arrangement: 4 pistons; 1.38-inch bores; stainless steel
• Hydraulic piston area: 3.00 square inches, as specified by Wilwood
• Pad shape: Wilwood type 7112; compound selected separately
• Body and finish: Forged aluminum; Type III anodized
• Dust boots: No
• Fluid inlet: 1/8-27 NPT

This four-piston Dynalite uses internal fluid transfer in a spacerless body. Its 5.25-inch mounting pattern is only one compatibility dimension: rotor position, body clearance and hydraulic area also need to agree.

Fitment & Compatibility

Measure rotor width before comparing calipers. Verify the mount height, rotor centerline and available wheel space; a common piston count does not establish interchangeability.

This listing covers one caliper. Match the brake pads, rotor, hose and mounting arrangement to the complete brake system.
