Product details

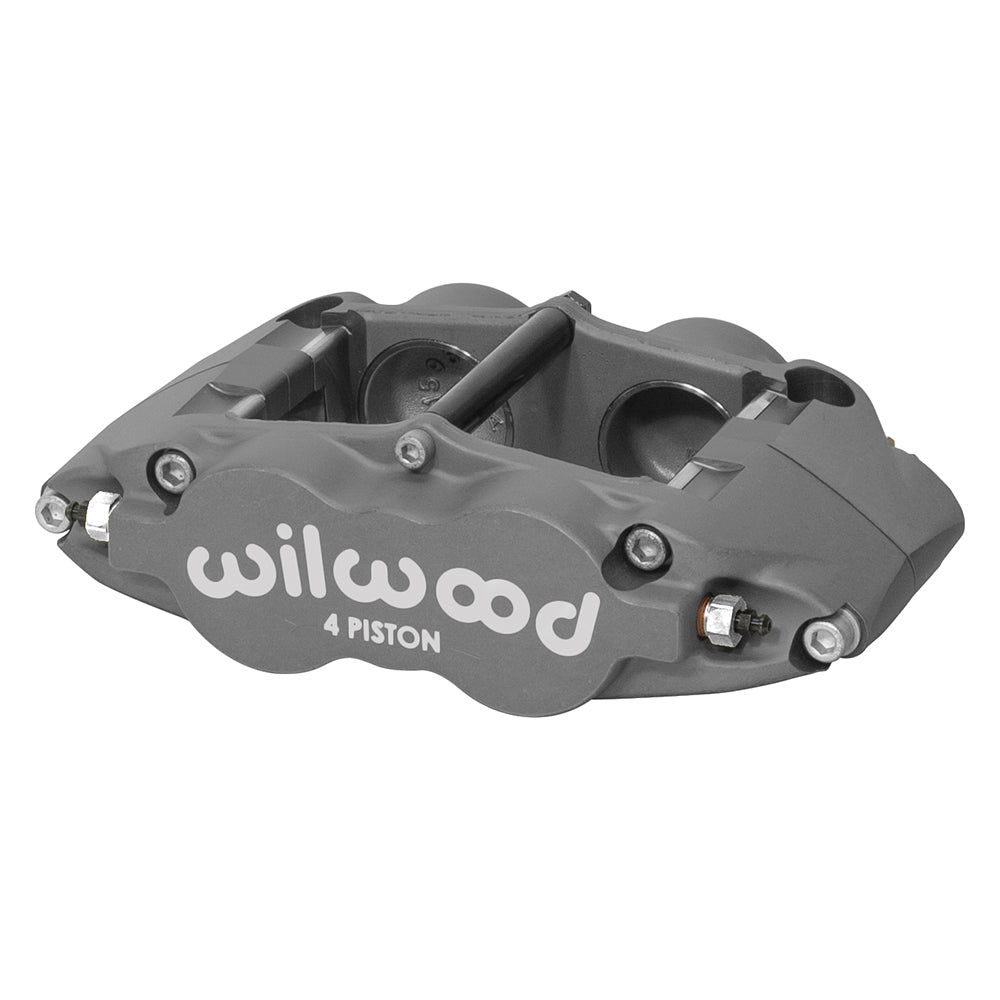

For a brake system using a 0.81-inch-wide rotor, this Type III anodized Wilwood Forged Superlite 4R provides 4 pistons with 1.88/1.75-inch bores. Right-hand mounting is specified. The caliper attaches on 5.98-inch radial centers. Founded in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering manufactures disc brake components for motorsport, street-performance and specialized uses. Its range covers calipers, rotors, master cylinders, valves, fittings and brake lines.
Technical Details
- Manufacturer part number: 120-13826
- Component: Wilwood Forged Superlite 4R; one caliper
- Pad shape: Wilwood type 7420; compound selected separately
- Rotor width: 0.81-inch nominal; 0.75–0.90-inch permitted range
- Rotor diameter range: 11.75–14.00 inches
- Mounting: Right hand; Radial; 5.98-inch centers; 0.39-inch mounting holes
- Mount height: 1.63 inches
- Piston arrangement: 4 pistons; 1.88/1.75-inch bores; stainless steel
- Hydraulic piston area: 5.18 square inches, as specified by Wilwood
- Fluid inlet: 1/8-27 NPT
- Body and finish: Forged aluminum; Type III anodized
- Dust boots: No
Internal fluid passages and radial mounting distinguish this four-piston Superlite. The selected piston design and bore sizes must match the brake balance calculation; they are not interchangeable merely because the mounting centers agree.
Fitment & Compatibility
Check pad depth against the rotor’s usable friction annulus. Rotor-hat clearance, mounting offset and the wheel’s inner profile must also be checked with the caliper drawing.
This listing covers one caliper. Match the brake pads, rotor, hose and mounting arrangement to the complete brake system.
PMB Performance’s team has over 20 years of experience with brake components and fitment. We can help review this caliper against the dimensions and hydraulic requirements of your brake system.
