Product details

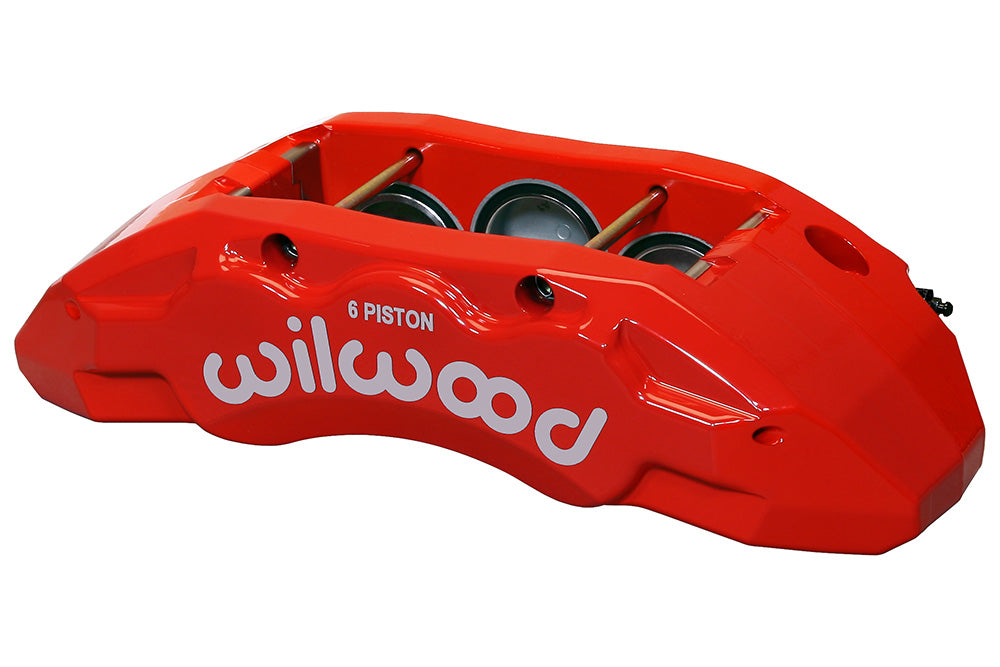

Match this red Wilwood TX6R to a brake assembly requiring 1.38-inch rotor width and 1.75/1.62/1.62-inch pistons. The left-hand 6-piston caliper uses 9.63-inch radial mounting rather than a vehicle-specific adapter supplied as a kit. Wilwood Engineering’s disc brake range includes calipers, rotors, master cylinders, valves, fittings and brake lines. Bill Wood founded the company in 1977 in California; it is based in Camarillo and serves motorsport, street-performance and specialized brake applications.
The TX6R is a six-piston radial-mount caliper developed for heavy truck, SUV and specialized severe-duty brake systems. Type 10120 pads provide its large friction package; installation still requires a matching rotor, bracket and hydraulic design.
Technical Details
- Manufacturer part number: 120-13818-RD
- Component: Wilwood TX6R; one caliper
- Body and finish: Forged aluminum; Red Powder Coat
- Dust boots: Yes
- Piston arrangement: 6 pistons; 1.75/1.62/1.62-inch bores; stainless steel
- Hydraulic piston area: 6.52 square inches, as specified by Wilwood
- Mounting: Left hand; Radial; 9.63-inch centers
- Mount height: 3.07 inches
- Fluid inlet: 1/8-27 NPT
- Pad shape: Wilwood type 10120; compound selected separately
- Rotor width: 1.38-inch nominal; 1.30–1.38-inch permitted range
- Rotor diameter range: 14.25–16.00 inches
Fitment & Compatibility
Identify the existing mounting bracket and compare its caliper centerline, hole spacing and radial position. Verify the piston configuration against the hydraulic system specification.
This listing covers one caliper. Match the brake pads, rotor, hose and mounting arrangement to the complete brake system.
With over 20 years of experience, PMB Performance can help compare piston configuration and mounting geometry. Share the existing brake package and measured rotor dimensions before ordering.
