Product details

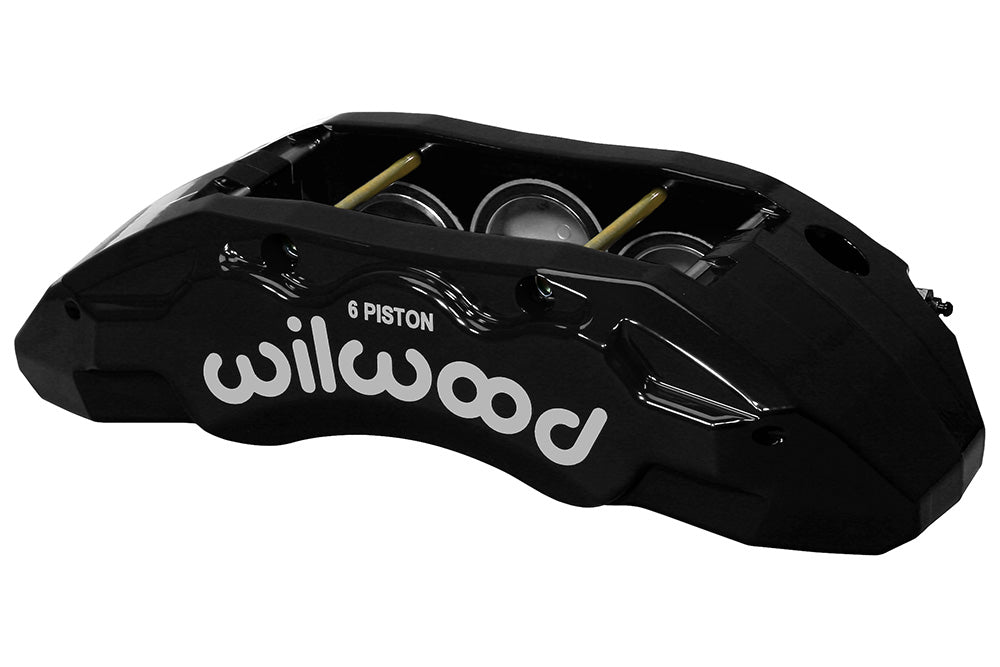

The Wilwood TX6R shown here is specified for 1.38-inch rotor width, 9.63-inch radial mounting and 2.00/1.88/1.88-inch piston bores. This right-hand black 6-piston component is selected by brake-system geometry rather than vehicle year alone. Founded in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering manufactures disc brake components for motorsport, street-performance and specialized uses. Its range covers calipers, rotors, master cylinders, valves, fittings and brake lines.
The TX6R is a six-piston radial-mount caliper developed for heavy truck, SUV and specialized severe-duty brake systems. Type 10120 pads provide its large friction package; installation still requires a matching rotor, bracket and hydraulic design.
Technical Details
- Manufacturer part number: 120-13815-BK
- Component: Wilwood TX6R; one caliper
- Mounting: Right hand; Radial; 9.63-inch centers
- Piston arrangement: 6 pistons; 2.00/1.88/1.88-inch bores; stainless steel
- Hydraulic piston area: 8.70 square inches, as specified by Wilwood
- Rotor width: 1.38-inch nominal; 1.30–1.38-inch permitted range
- Rotor diameter range: 14.25–16.00 inches
- Pad shape: Wilwood type 10120; compound selected separately
- Body and finish: Forged aluminum; Black Powder Coat
- Fluid inlet: 1/8-27 NPT
- Dust boots: Yes
- Mount height: 3.07 inches
Fitment & Compatibility
Compare the installed rotor’s nominal width with this exact caliper version. Before assembly, verify pad sweep, caliper-to-wheel clearance and the hose fitting’s thread and sealing method.
This listing covers one caliper. Match the brake pads, rotor, hose and mounting arrangement to the complete brake system.
