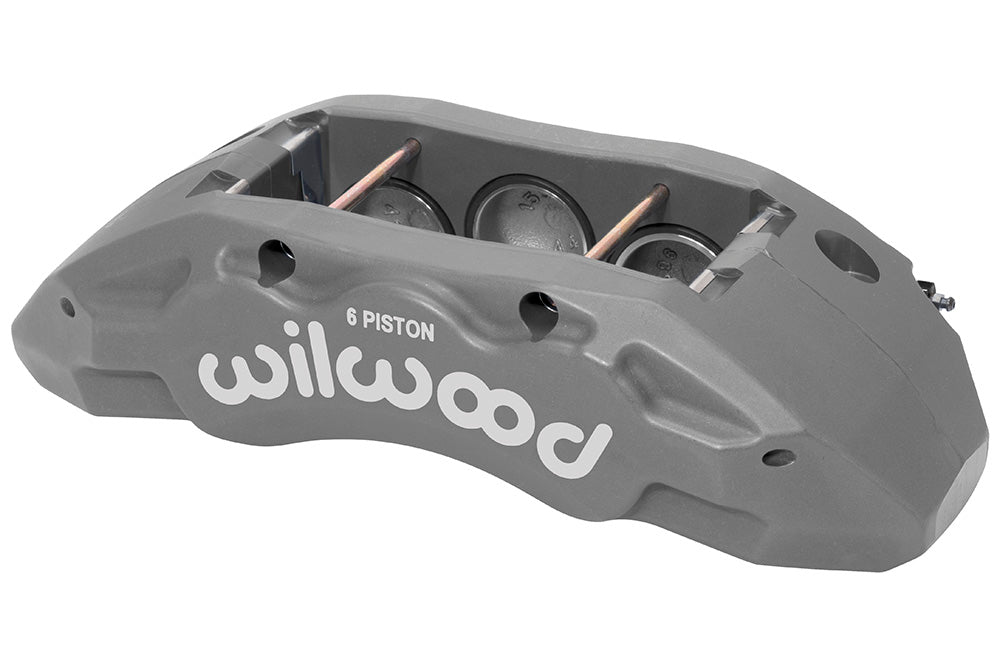

Wilwood TX6R Caliper with Stainless Steel Pistons, Left Type III Anodized, 1.50-Inch-wide Rotor

Choose this left-hand Wilwood TX6R when the installation calls for 2.00/1.88/1.88-inch pistons and 1.50-inch rotor width. The Type III anodized 6-piston body uses a 9.63-inch radial pattern; check its complete geometry before substituting another caliper. Bill Wood founded Wilwood Engineering in 1977. Based in Camarillo, California, Wilwood designs and manufactures disc brake systems and parts for motorsport, street-performance and specialized applications, from calipers and rotors to master cylinders, valves, fittings and brake lines.

Technical Details

• Manufacturer part number: 120-13814
• Component: Wilwood TX6R; one caliper
• Rotor width: 1.50-inch nominal; 1.42–1.50-inch permitted range
• Rotor diameter range: 14.25–16.00 inches
• Mounting: Left hand; Radial; 9.63-inch centers
• Mount height: 3.07 inches
• Piston arrangement: 6 pistons; 2.00/1.88/1.88-inch bores; stainless steel
• Hydraulic piston area: 8.70 square inches, as specified by Wilwood
• Pad shape: Wilwood type 10120; compound selected separately
• Body and finish: Forged aluminum; Type III anodized
• Dust boots: Yes
• Fluid inlet: 1/8-27 NPT

The TX6R is a six-piston radial-mount caliper developed for heavy truck, SUV and specialized severe-duty brake systems. Type 10120 pads provide its large friction package; installation still requires a matching rotor, bracket and hydraulic design.

Fitment & Compatibility

Plan the caliper installation with the rotor centered in the pad gap. Verify attachment hardware, hose connection and accessible upper bleeders, then confirm the brake system’s hydraulic balance.

This listing covers one caliper. Match the brake pads, rotor, hose and mounting arrangement to the complete brake system.
