Product details

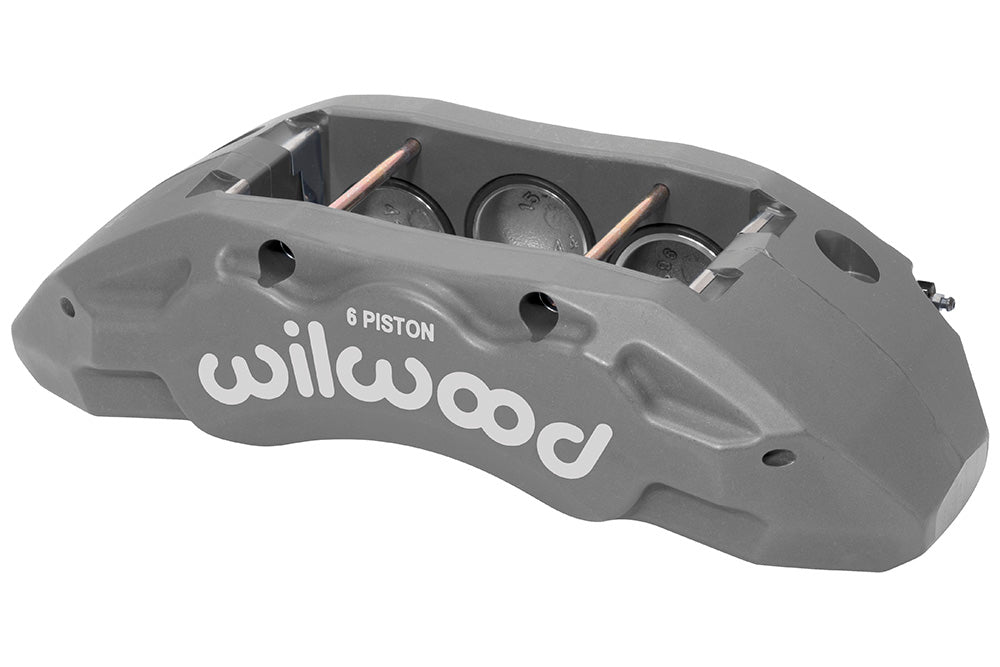

Type III Anodized finish and 2.00/1.88/1.88-inch bores distinguish this Wilwood TX6R configuration. It is a right-hand 6-piston brake caliper for 1.50-inch-wide rotors, with 9.63-inch radial attachment centers. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company makes disc brake systems and components, including calipers, rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications.
The TX6R is a six-piston radial-mount caliper developed for heavy truck, SUV and specialized severe-duty brake systems. Type 10120 pads provide its large friction package; installation still requires a matching rotor, bracket and hydraulic design.
Technical Details
- Manufacturer part number: 120-13813
- Component: Wilwood TX6R; one caliper
- Body and finish: Forged aluminum; Type III anodized
- Dust boots: Yes
- Piston arrangement: 6 pistons; 2.00/1.88/1.88-inch bores; stainless steel
- Hydraulic piston area: 8.70 square inches, as specified by Wilwood
- Mounting: Right hand; Radial; 9.63-inch centers
- Mount height: 3.07 inches
- Fluid inlet: 1/8-27 NPT
- Pad shape: Wilwood type 10120; compound selected separately
- Rotor width: 1.50-inch nominal; 1.42–1.50-inch permitted range
- Rotor diameter range: 14.25–16.00 inches
Fitment & Compatibility
Use the intended rotor and bracket dimensions to establish compatibility. The chosen pad compound, master-cylinder volume and brake balance must be considered with this caliper’s piston sizes.
This listing covers one caliper. Match the brake pads, rotor, hose and mounting arrangement to the complete brake system.
