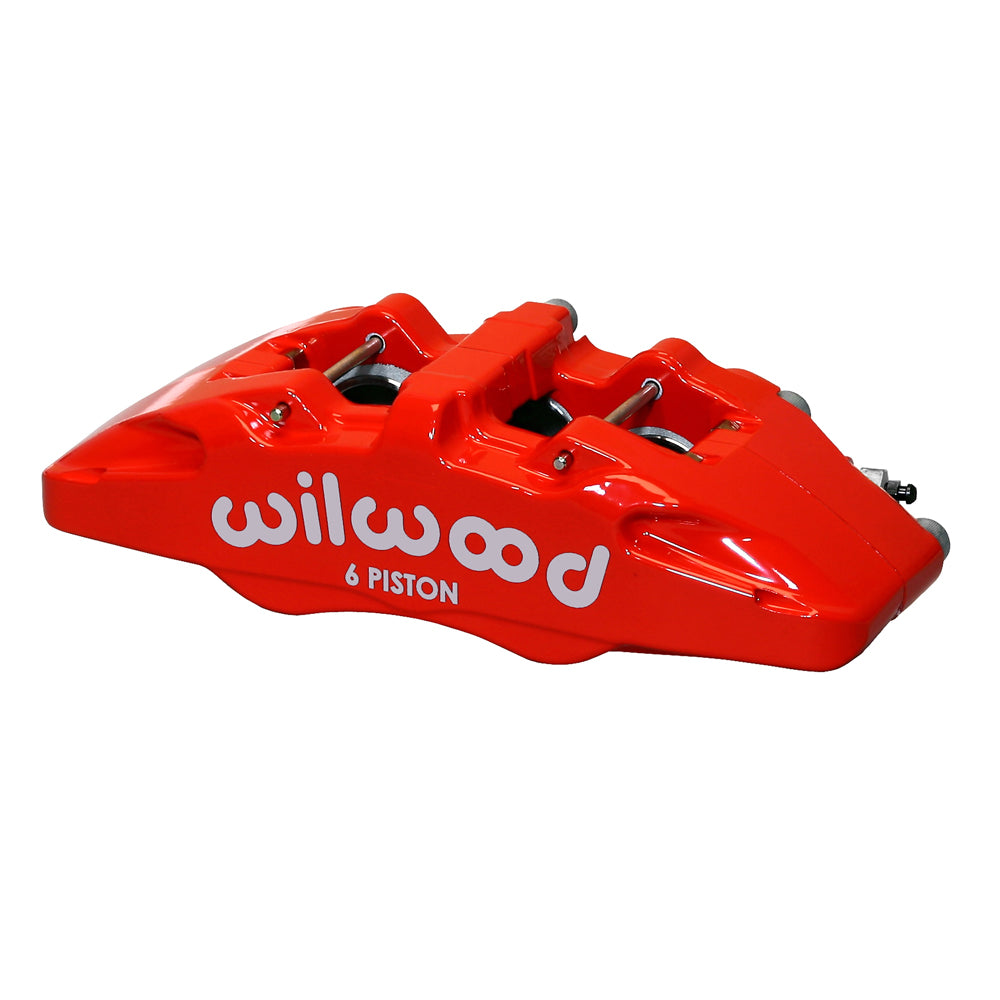

Wilwood Right Red DP6A Brake Caliper for 0.81-Inch-wide Rotor, 6 Stainless Steel Pistons

For a brake system using a 0.81-inch-wide rotor, this red Wilwood Forged Dynapro 6A provides 6 pistons with 1.38/1.00/1.00-inch bores. Right-hand mounting is specified. The caliper attaches on 5.25-inch lug centers. Founded in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering manufactures disc brake components for motorsport, street-performance and specialized uses. Its range covers calipers, rotors, master cylinders, valves, fittings and brake lines.

Technical Details

• Manufacturer part number: 120-13438-RD
• Component: Wilwood Forged Dynapro 6A; one caliper
• Rotor width: 0.81-inch nominal; 0.75–0.83-inch permitted range
• Rotor diameter range: 10.00–13.00 inches
• Mounting: Right hand; Lug; 5.25-inch centers; 0.39-inch mounting holes
• Mount height: 2.03 inches
• Piston arrangement: 6 pistons; 1.38/1.00/1.00-inch bores; stainless steel
• Hydraulic piston area: 3.08 square inches, as specified by Wilwood
• Pad shape: Wilwood type 6712; compound selected separately
• Body and finish: Forged aluminum; Red Powder Coat
• Dust boots: No
• Fluid inlet: 1/8-27 NPT

The DP6A combines a six-piston differential-bore arrangement with a reinforced bridge and 5.25-inch lug mounting. Check piston area as well as rotor width when replacing an earlier Dynapro or Dynalite caliper.

Fitment & Compatibility

Measure rotor width before comparing calipers. Verify the mount height, rotor centerline and available wheel space; a common piston count does not establish interchangeability.

This listing covers one caliper. Match the brake pads, rotor, hose and mounting arrangement to the complete brake system.

PMB Performance has worked with parts and brake fitment for over 20 years. Supply the installed caliper identity and the rotor and bracket measurements for a practical compatibility check.
