Product details

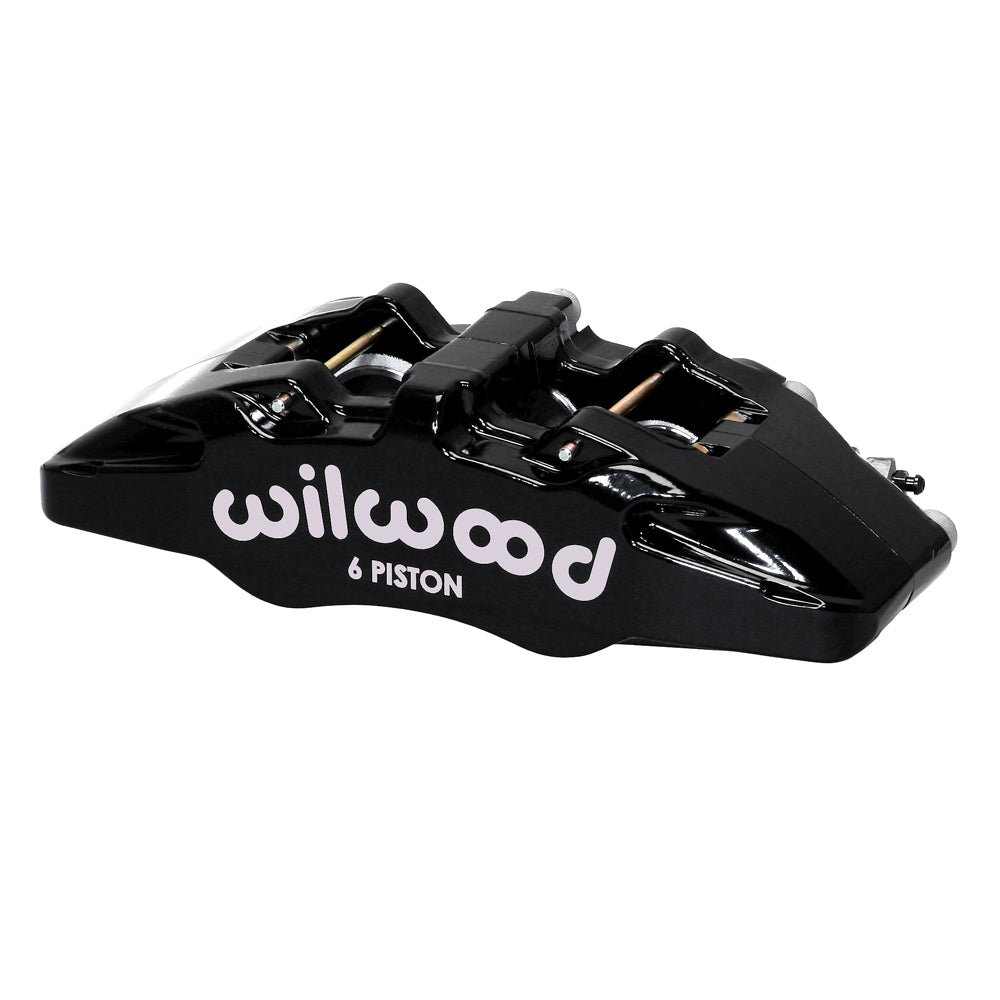

Black finish and 1.62/1.12/1.12-inch bores distinguish this Wilwood Forged Dynapro 6A configuration. It is a left-hand 6-piston brake caliper for 1.10-inch-wide rotors, with 5.25-inch lug attachment centers. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company makes disc brake systems and components, including calipers, rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications.
The DP6A combines a six-piston differential-bore arrangement with a reinforced bridge and 5.25-inch lug mounting. Check piston area as well as rotor width when replacing an earlier Dynapro or Dynalite caliper.
Technical Details
- Manufacturer part number: 120-13437-BK
- Component: Wilwood Forged Dynapro 6A; one caliper
- Mounting: Left hand; Lug; 5.25-inch centers; 0.39-inch mounting holes
- Piston arrangement: 6 pistons; 1.62/1.12/1.12-inch bores; stainless steel
- Hydraulic piston area: 4.04 square inches, as specified by Wilwood
- Rotor width: 1.10-inch nominal; 1.04–1.13-inch permitted range
- Rotor diameter range: 10.00–13.00 inches
- Pad shape: Wilwood type 6712; compound selected separately
- Body and finish: Forged aluminum; Black Powder Coat
- Fluid inlet: 1/8-27 NPT
- Dust boots: No
- Mount height: 2.03 inches
Fitment & Compatibility
Use the intended rotor and bracket dimensions to establish compatibility. The chosen pad compound, master-cylinder volume and brake balance must be considered with this caliper’s piston sizes.
This listing covers one caliper. Match the brake pads, rotor, hose and mounting arrangement to the complete brake system.
PMB Performance has over 20 years of brake and parts experience. Send us the caliper specifications, rotor measurements and bracket details if you need help selecting the correct component.
