Wilwood Red Right DP6A Brake Caliper with 5.25-Inch Lug Centers and 1.62/1.12/1.12-Inch Bores

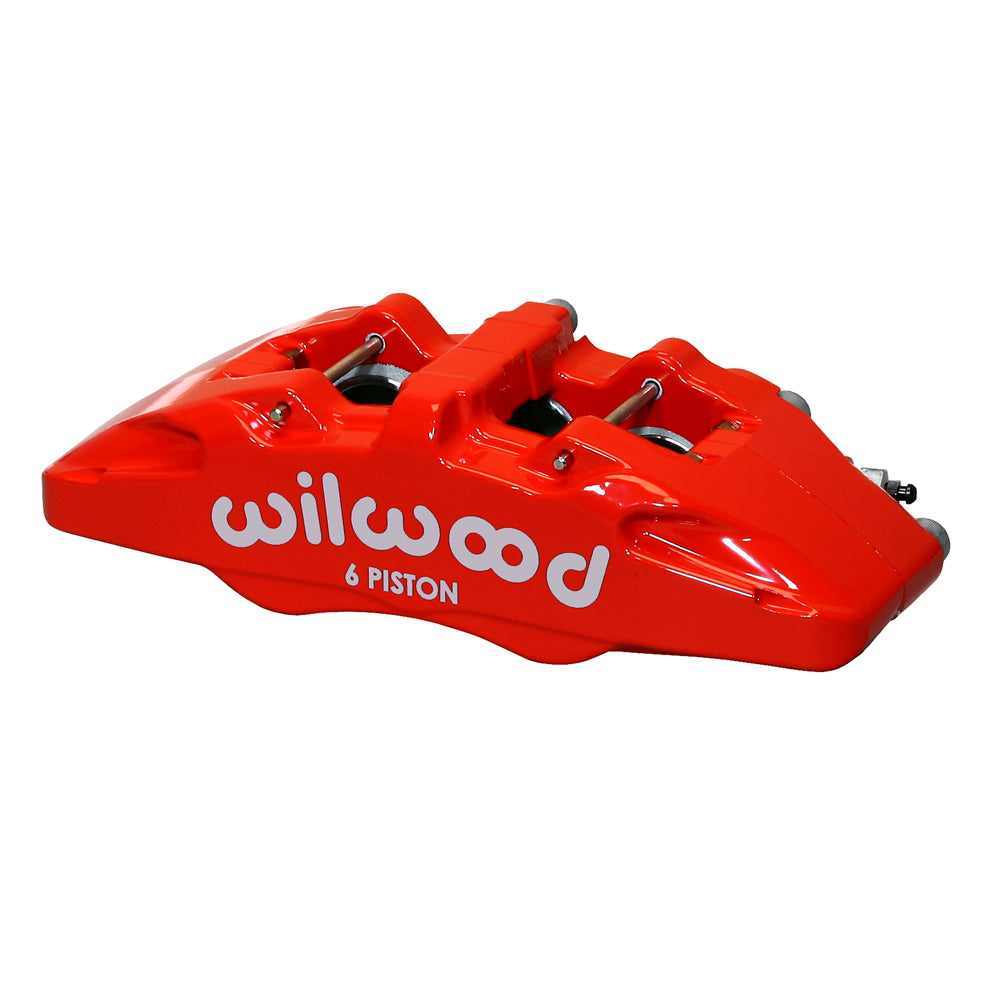

This red Wilwood DP6A is the right-hand, nominal 1.10-inch rotor-width version of the Forged Dynapro 6A caliper. Six stainless pistons use a 1.62/1.12/1.12-inch bore combination, while 5.25-inch lug mounting locates the forged aluminum body. It is an individual hydraulic brake component whose bracket, rotor and master-cylinder requirements must agree. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company makes disc brake systems and components, including calipers, rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications.

The DP6A combines a six-piston differential-bore arrangement with a reinforced bridge and 5.25-inch lug mounting. Check piston area as well as rotor width when replacing an earlier Dynapro or Dynalite caliper.

Technical Details

• Manufacturer part number: 120-13436-RD
• Component: Wilwood Forged Dynapro 6A; one caliper
• Body and finish: Forged aluminum; Red Powder Coat
• Dust boots: No
• Piston arrangement: 6 pistons; 1.62/1.12/1.12-inch bores; stainless steel
• Hydraulic piston area: 4.04 square inches, as specified by Wilwood
• Mounting: Right hand; Lug; 5.25-inch centers; 0.39-inch mounting holes
• Mount height: 2.03 inches
• Fluid inlet: 1/8-27 NPT
• Pad shape: Wilwood type 6712; compound selected separately
• Rotor width: 1.10-inch nominal; 1.04–1.13-inch permitted range
• Rotor diameter range: 10.00–13.00 inches

Fitment & Compatibility

Begin with the rotor measurement: this version permits 1.04–1.13 inches of width and a 10.00–13.00-inch diameter. Position the type 6712 pad footprint fully on the friction surface, and check the lug offset against the 2.03-inch mounting height. The red finish does not establish interchangeability with other DP6A bore or width options; verify hose clearance at the 1/8-27 NPT inlet.

This listing covers one caliper. Match the brake pads, rotor, hose and mounting arrangement to the complete brake system.
