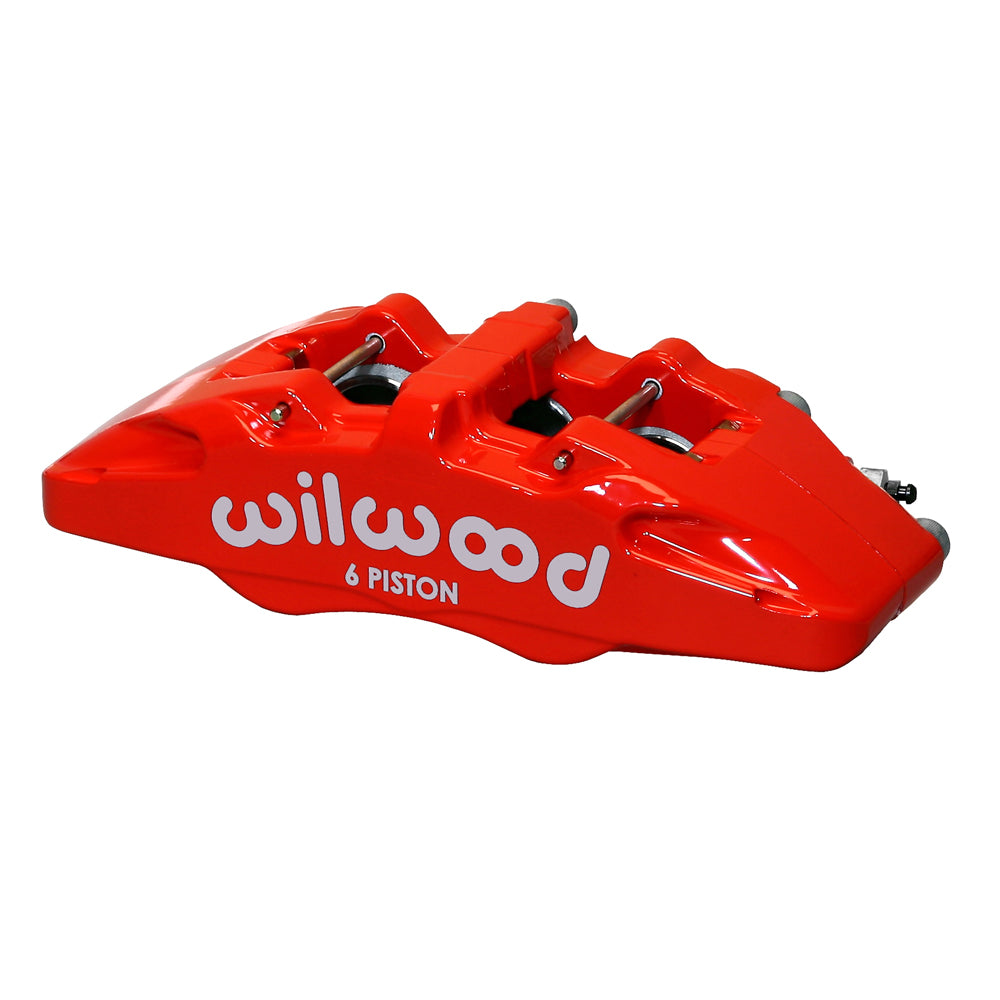

Wilwood Red Forged Dynapro 6A Brake Caliper, Left, 1.62/1.38/1.38-Inch Pistons / 1.10-Inch-wide Rotor

For a brake system using a 1.10-inch-wide rotor, this red Wilwood Forged Dynapro 6A provides 6 pistons with 1.62/1.38/1.38-inch bores. Left-hand mounting is specified. The caliper attaches on 5.25-inch lug centers. Founded in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering manufactures disc brake components for motorsport, street-performance and specialized uses. Its range covers calipers, rotors, master cylinders, valves, fittings and brake lines.

The DP6A combines a six-piston differential-bore arrangement with a reinforced bridge and 5.25-inch lug mounting. Check piston area as well as rotor width when replacing an earlier Dynapro or Dynalite caliper.

Technical Details

• Manufacturer part number: 120-13433-RD
• Component: Wilwood Forged Dynapro 6A; one caliper
• Mounting: Left hand; Lug; 5.25-inch centers; 0.39-inch mounting holes
• Piston arrangement: 6 pistons; 1.62/1.38/1.38-inch bores; stainless steel
• Hydraulic piston area: 5.06 square inches, as specified by Wilwood
• Rotor width: 1.10-inch nominal; 1.04–1.13-inch permitted range
• Rotor diameter range: 10.00–13.00 inches
• Pad shape: Wilwood type 6712; compound selected separately
• Body and finish: Forged aluminum; Red Powder Coat
• Fluid inlet: 1/8-27 NPT
• Dust boots: No
• Mount height: 2.03 inches

Fitment & Compatibility

Measure rotor width before comparing calipers. Verify the mount height, rotor centerline and available wheel space; a common piston count does not establish interchangeability.

This listing covers one caliper. Match the brake pads, rotor, hose and mounting arrangement to the complete brake system.
