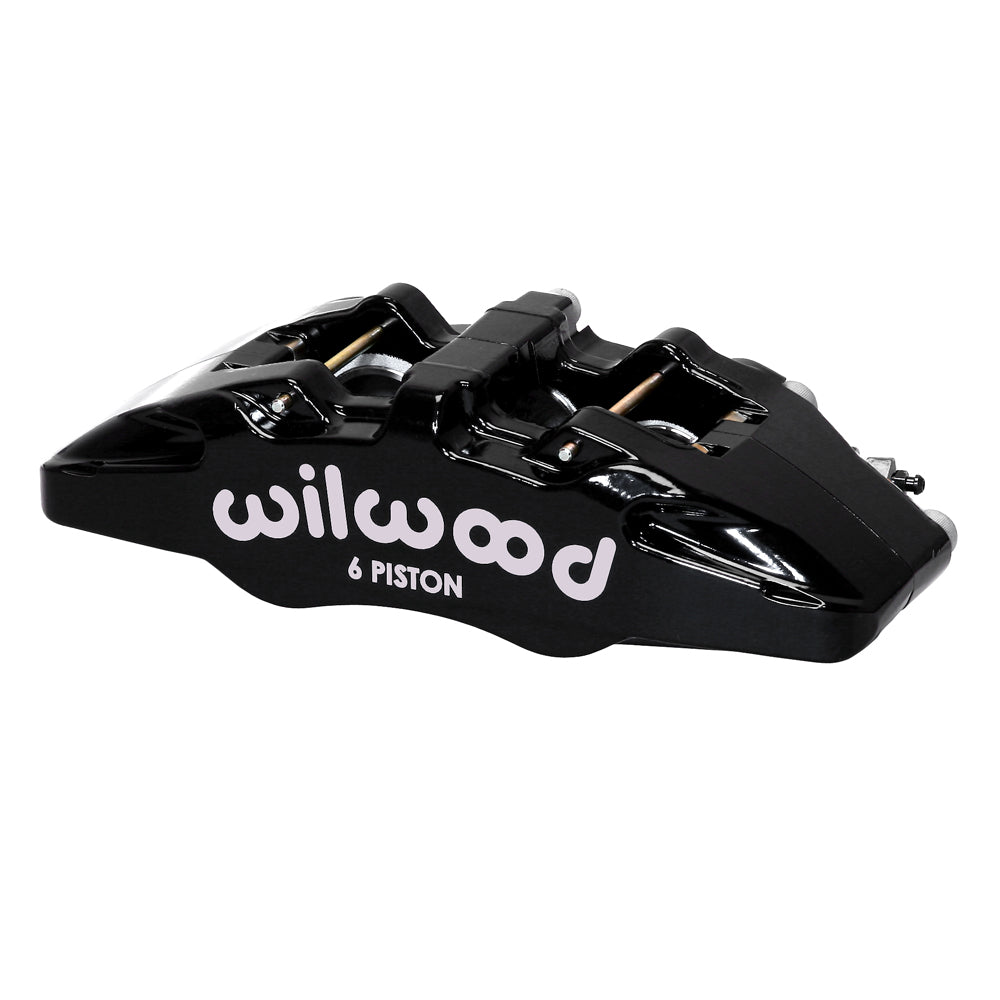

Wilwood Left Forged Dynapro 6A 6-Piston Brake Caliper, Black, 1.10-Inch Rotor Width, 1.62/1.38/1.38-Inch Bore

The Wilwood Forged Dynapro 6A shown here is specified for 1.10-inch rotor width, 5.25-inch lug mounting and 1.62/1.38/1.38-inch piston bores. This left-hand black 6-piston component is selected by brake-system geometry rather than vehicle year alone. Founded in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering manufactures disc brake components for motorsport, street-performance and specialized uses. Its range covers calipers, rotors, master cylinders, valves, fittings and brake lines.

Technical Details

• Manufacturer part number: 120-13433-BK
• Component: Wilwood Forged Dynapro 6A; one caliper
• Pad shape: Wilwood type 6712; compound selected separately
• Rotor width: 1.10-inch nominal; 1.04–1.13-inch permitted range
• Rotor diameter range: 10.00–13.00 inches
• Mounting: Left hand; Lug; 5.25-inch centers; 0.39-inch mounting holes
• Mount height: 2.03 inches
• Piston arrangement: 6 pistons; 1.62/1.38/1.38-inch bores; stainless steel
• Hydraulic piston area: 5.06 square inches, as specified by Wilwood
• Fluid inlet: 1/8-27 NPT
• Body and finish: Forged aluminum; Black Powder Coat
• Dust boots: No

The DP6A combines a six-piston differential-bore arrangement with a reinforced bridge and 5.25-inch lug mounting. Check piston area as well as rotor width when replacing an earlier Dynapro or Dynalite caliper.

Fitment & Compatibility

Select pads by the specified friction shape and intended operating temperature. Check the wheel template with the actual rotor, hat and bracket before finalizing the installation.

This listing covers one caliper. Match the brake pads, rotor, hose and mounting arrangement to the complete brake system.

PMB Performance has worked with parts and brake fitment for over 20 years. Supply the installed caliper identity and the rotor and bracket measurements for a practical compatibility check.
