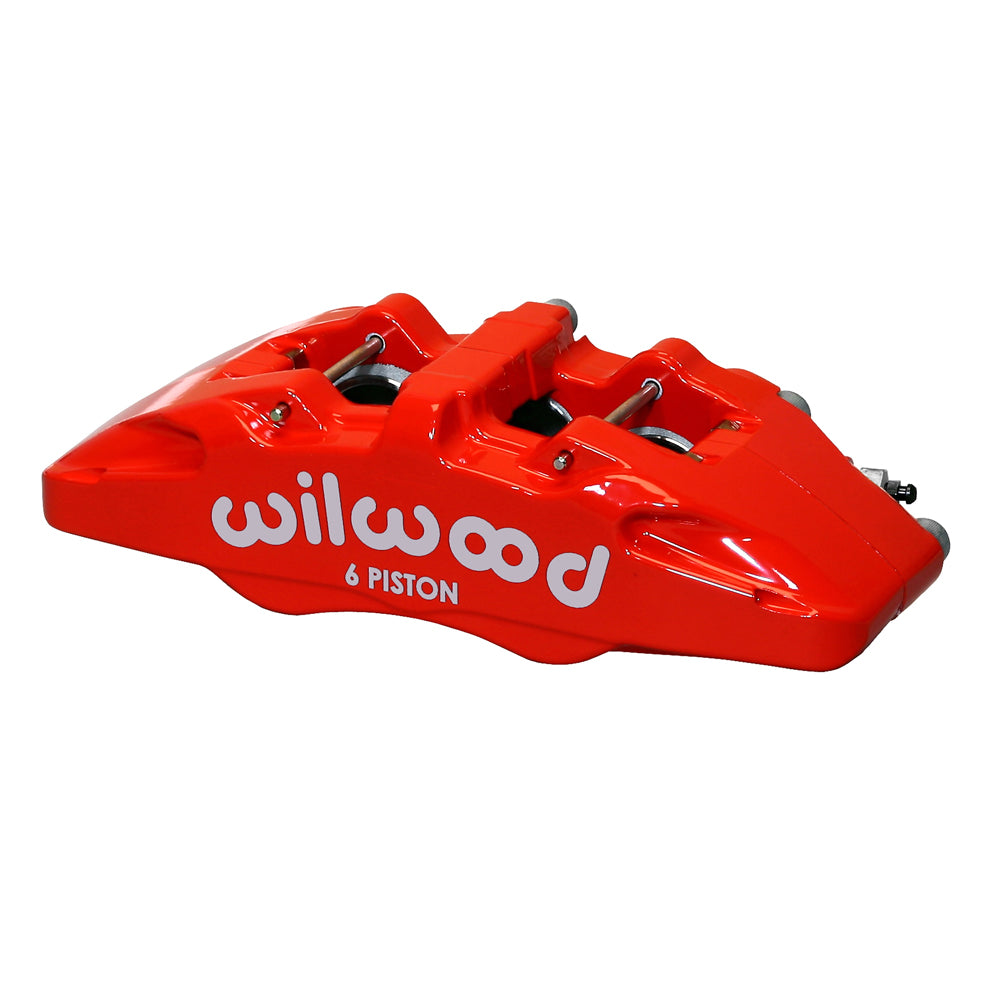

Wilwood DP6A Left Red Brake Caliper, 0.38-Inch Rotor Width / Six-Piston Stainless: Red DP6A caliper showing white Wilwood lettering, a six-piston marking and its open upper pad channel.

Wilwood DP6A Left Red Brake Caliper, 0.38-Inch Rotor Width / Six-Piston Stainless

SKU: 120-13431-RD

$365.20 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

A six-piston caliper for the left side, the red Forged Dynapro 6A is offered here in the nominal 0.38-inch rotor-width configuration. Stainless differential bores of 1.62/1.38/1.38 inches establish the piston layout inside the reinforced body. This component comes from Wilwood Engineering, established in 1977 by Bill Wood and based in Camarillo, California. Its disc brake design and manufacturing work includes calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized systems.

Technical Details

  • Manufacturer part number: 120-13431-RD. Component: Forged Dynapro 6A Lug Mount caliper.
  • Supply: one brake caliper, not a complete axle brake kit. Match the mating rotor, pads, bracket and connection hardware to the installation.
  • Piston dust boots: not fitted.
  • Caliper weight: approximately 4.9 lb.
  • Pad fit is type 6712. Match the pad dimensions and compound to the rotor and intended braking conditions.
  • Bore configuration 1.62/1.38/1.38 inches across 6 pistons; piston material: stainless steel. Hydraulic effective area: 5.06 square inches.
  • Bracket interface: 5.25-inch lug centers with 0.39-inch holes. Specified mount height: 2.03 inches; orientation: left hand.
  • Hydraulic inlet thread: 1/8-27 NPT. Use a fitting with the correct thread and sealing seat.
  • Construction and surface: forged aluminum housing finished in Red powder coat.
  • Nominal rotor width 0.38 inch; compatible outside diameter from 10.00 through 13.00 inches. Specified rotor-width limits: 0.25–0.38 inch.

Fitment & Compatibility

The mounting bracket must suit 5.25-inch lug centers and place the pads correctly on a 10.00–13.00-inch rotor. Verify the narrow rotor thickness and the 2.03-inch mounting height, with enough space for the wheel and hose connection.

For a replacement or custom installation, send PMB Performance the brake dimensions and existing component identification. Our 20+ years of experience can help narrow down the correct combination.
