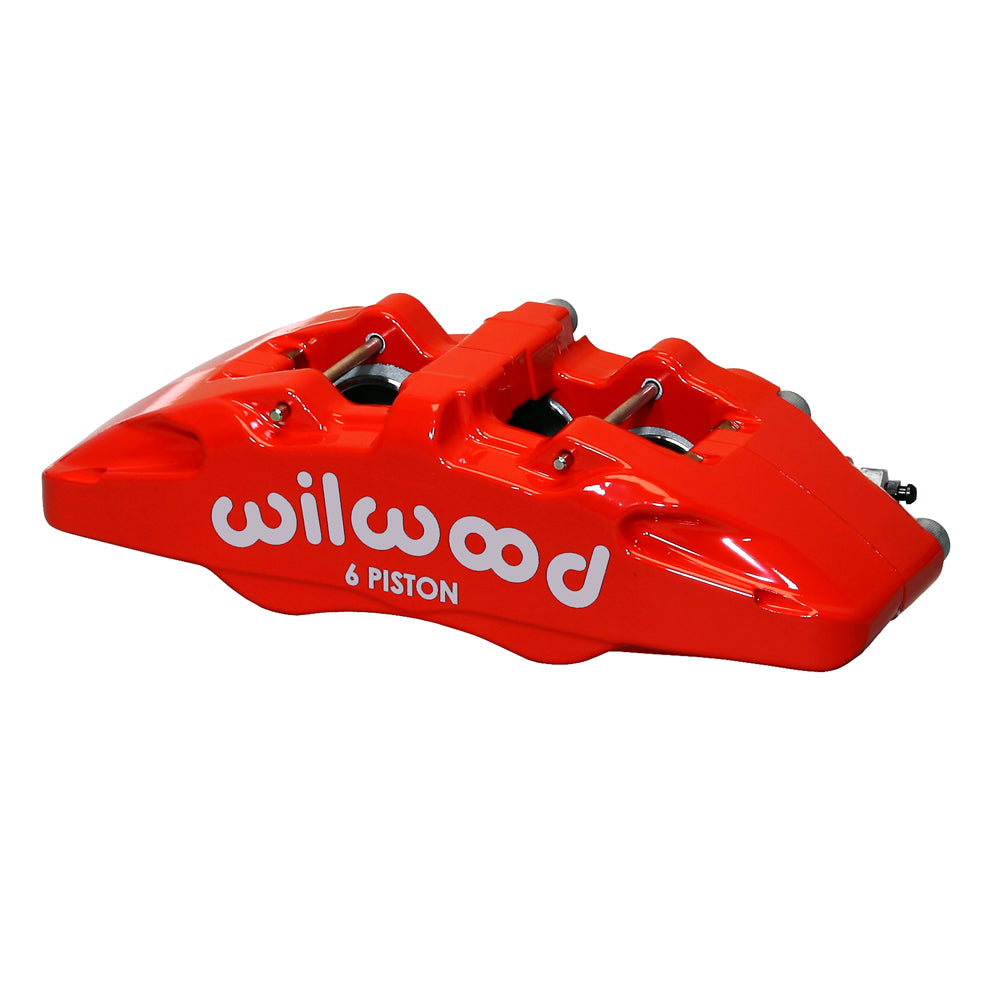

Wilwood Dynapro 6A Right Red Caliper, 1.62/1.38/1.38-Inch Bores / Thin 0.38-Inch Rotor Width: Red DP6A caliper showing white Wilwood lettering, a six-piston marking and its open upper pad channel.

Wilwood Dynapro 6A Right Red Caliper, 1.62/1.38/1.38-Inch Bores / Thin 0.38-Inch Rotor Width

SKU: 120-13430-RD

$365.20 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Wilwood’s red right-hand DP6A is configured for a nominally 0.38-inch-wide rotor. Six stainless pistons in 1.62/1.38/1.38-inch bores operate within the forged body, which uses internal fluid passages and 5.25-inch lug centers. Camarillo, California is home to Wilwood Engineering, the disc brake company Bill Wood founded in 1977. Its design and manufacturing range spans calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized brake systems.

Technical Details

  • Manufacturer part number: 120-13430-RD. Component: Forged Dynapro 6A Lug Mount caliper.
  • Supply: one brake caliper, not a complete axle brake kit. Match the mating rotor, pads, bracket and connection hardware to the installation.
  • Bore configuration 1.62/1.38/1.38 inches across 6 pistons; piston material: stainless steel. Hydraulic effective area: 5.06 square inches.
  • Construction and surface: forged aluminum housing finished in Red powder coat.
  • Caliper weight: approximately 4.9 lb.
  • Piston dust boots: not fitted.
  • Pad fit is type 6712. Match the pad dimensions and compound to the rotor and intended braking conditions.
  • Bracket interface: 5.25-inch lug centers with 0.39-inch holes. Specified mount height: 2.03 inches; orientation: right hand.
  • Hydraulic inlet thread: 1/8-27 NPT. Use a fitting with the correct thread and sealing seat.
  • Nominal rotor width 0.38 inch; compatible outside diameter from 10.00 through 13.00 inches. Specified rotor-width limits: 0.25–0.38 inch.

Fitment & Compatibility

Confirm rotor width within 0.25–0.38 inch and the correct right-side installation. Check a 10.00–13.00-inch rotor diameter against the bracket height, wheel space and complete pad-contact area.

Ask PMB Performance to check the complete brake arrangement before ordering. Our team brings over 20 years of experience; photographs and measured bracket and rotor dimensions make that check more useful.
