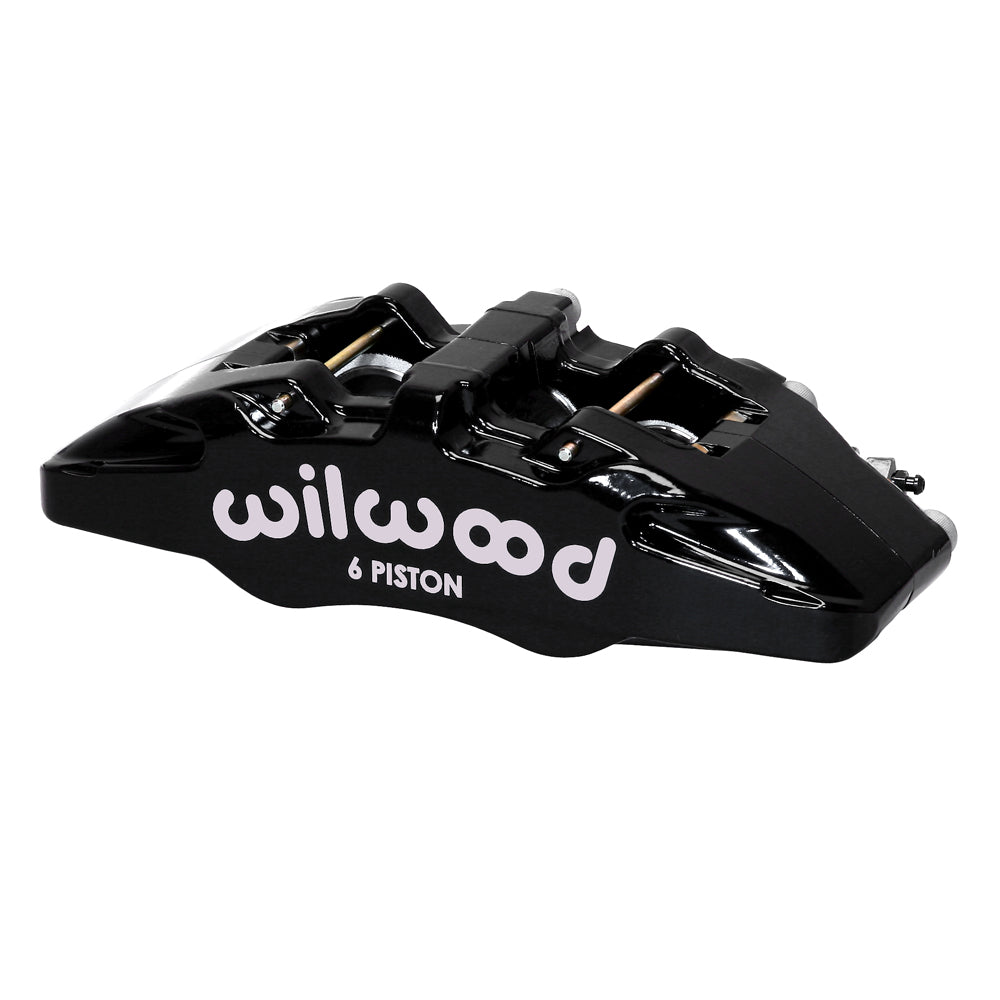

Wilwood Black Right Dynapro 6A Brake Caliper, 0.38-Inch Rotor Width / 1.62/1.38/1.38-Inch Bores

The black right DP6A combines a narrow 0.38-inch nominal rotor-width cavity with six differential stainless pistons. Its 1.62/1.38/1.38-inch bores are carried in a forged aluminum body with reinforced bridge sections. Wilwood Engineering, founded by Bill Wood in 1977, is based in Camarillo, California. The company makes and designs disc brake components and systems for motorsport, street-performance and specialized applications, including calipers, brake rotors, master cylinders, valves, fittings and brake lines.

Technical Details

• Manufacturer part number: 120-13430-BK. Component: Forged Dynapro 6A Lug Mount caliper.
• Supply: one brake caliper, not a complete axle brake kit. Match the mating rotor, pads, bracket and connection hardware to the installation.
• The rotor channel is specified for 0.38-inch nominal width. Rotor outside diameter: 10.00 to 13.00 inches. Specified rotor-width limits: 0.25–0.38 inch.
• Black powder coat finish on a forged aluminum caliper body.
• Piston dust boots: not fitted.
• 5.25-inch lug mounting pattern, right hand; mounting height 2.03 inches and hole size 0.39 inch.
• 6 stainless steel pistons with 1.62/1.38/1.38-inch bore groups. The specified effective area is 5.06 sq in.
• Caliper weight: approximately 4.9 lb.
• Brake pad profile 6712; select friction material for the actual operating conditions.
• Hydraulic inlet thread: 1/8-27 NPT. Use a fitting with the correct thread and sealing seat.

Fitment & Compatibility

Check the rotor’s full thickness before ordering this narrow-body version. Verify the 5.25-inch lug spacing and 2.03-inch mount height, and ensure that the rotor’s usable radius suits the 6712 pads.

Ask PMB Performance to check the complete brake arrangement before ordering. Our team brings over 20 years of experience; photographs and measured bracket and rotor dimensions make that check more useful.
