Product details

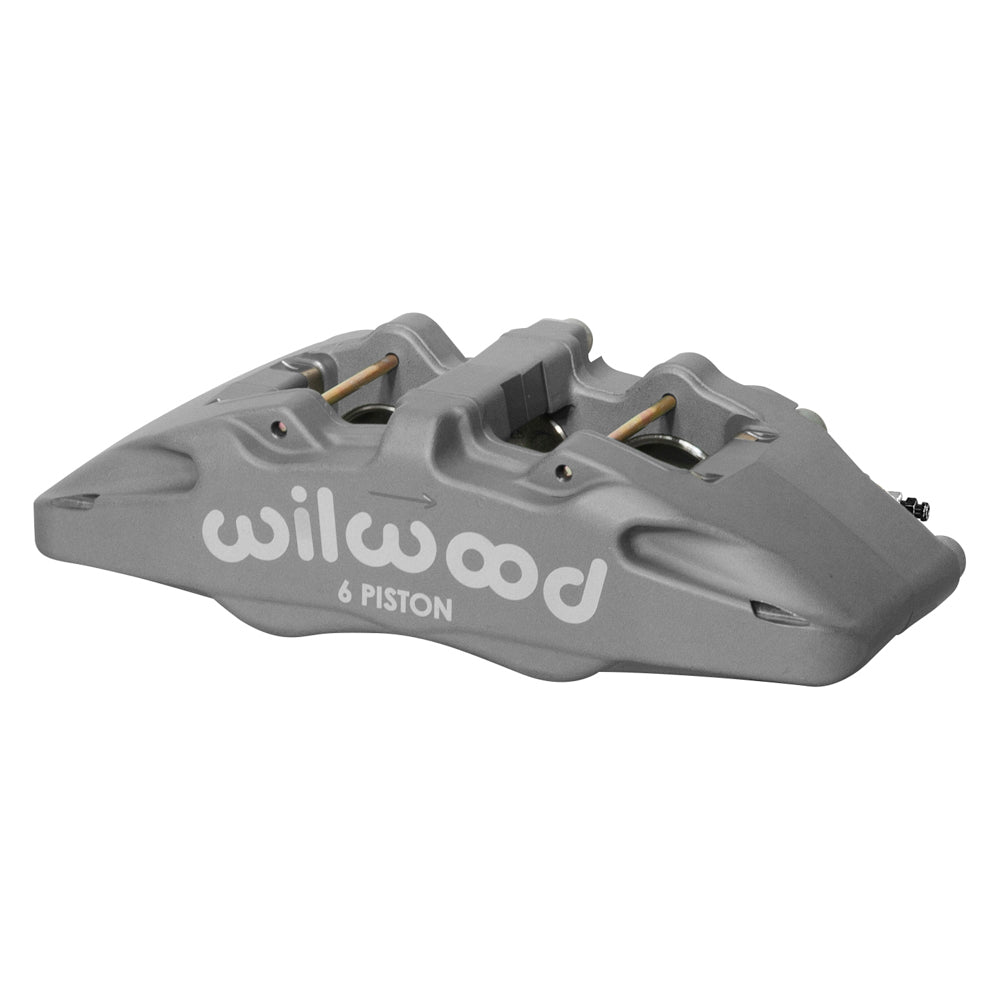

The anodized left DP6A is the 0.81-inch nominal rotor-width configuration of Wilwood’s six-piston lug-mount caliper. Differential 1.62/1.38/1.38-inch stainless bores operate in a forged body with reinforced bridges and internal fluid passages. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. It designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications.
Technical Details
- Manufacturer part number: 120-13429. Component: Forged Dynapro 6A Lug Mount caliper.
- Supply: one brake caliper, not a complete axle brake kit. Match the mating rotor, pads, bracket and connection hardware to the installation.
- Rotor compatibility: nominal width 0.81 inch; diameter 10.00–13.00 inches. Specified rotor-width limits: 0.75–0.83 inch.
- Pistons: 6 stainless steel; bore specification: 1.62/1.38/1.38 inches. Effective piston area: 5.06 sq in.
- Hydraulic inlet thread: 1/8-27 NPT. Use a fitting with the correct thread and sealing seat.
- Caliper weight: approximately 5.1 lb.
- Body: forged aluminum; finish: Type III anodize.
- Piston dust boots: not fitted.
- Compatible brake pad shape: 6712; choose the required compound for the brake system.
- Mounting: lug, 5.25-inch centers; left hand orientation. Mount holes: 0.39 inch; height: 2.03 inches.
Fitment & Compatibility
Check the left mounting orientation and the rotor’s 0.75–0.83-inch width range. The 5.25-inch lug pattern must be considered with mount height, pad sweep and the clearance available inside the wheel.
PMB Performance has over 20 years of brake-component experience. Send the existing caliper identification, rotor measurements and bracket details for help matching this configuration.
