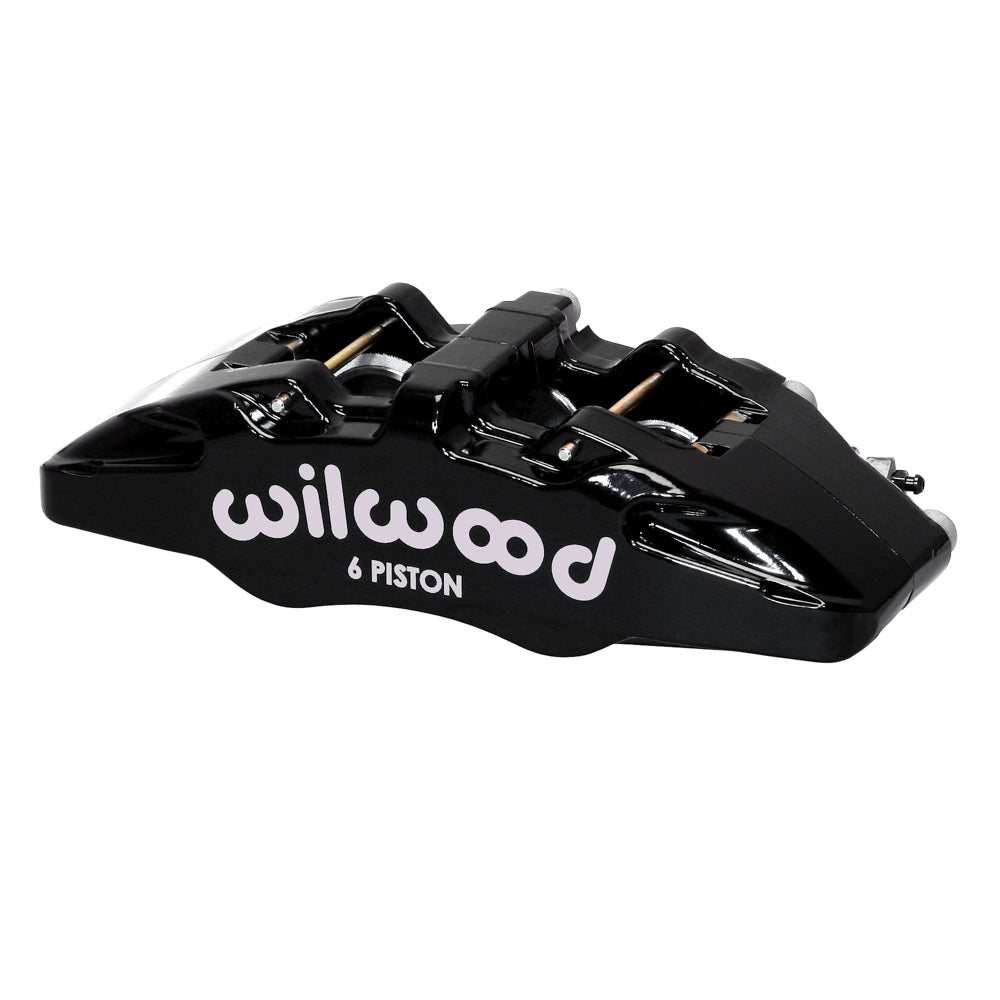

Wilwood Black Right Forged Dynapro 6A Caliper, Six Pistons / 0.81-Inch Rotor Width

Wilwood’s black right DP6A is a six-piston lug-mount caliper with 1.62/1.38/1.38-inch stainless bores. Its reinforced forged body accepts the 6712 friction format and transfers brake fluid internally. Wilwood Engineering is a Camarillo, California-based designer and manufacturer of disc brake systems, founded by Bill Wood in 1977. Calipers, brake rotors, master cylinders, valves, fittings and brake lines form its range for motorsport, street-performance and specialized applications.

Technical Details

• Manufacturer part number: 120-13428-BK. Component: Forged Dynapro 6A Lug Mount caliper.
• Supply: one brake caliper, not a complete axle brake kit. Match the mating rotor, pads, bracket and connection hardware to the installation.
• Hydraulic inlet thread: 1/8-27 NPT. Use a fitting with the correct thread and sealing seat.
• 5.25-inch lug mounting pattern, right hand; mounting height 2.03 inches and hole size 0.39 inch.
• Caliper weight: approximately 5.1 lb.
• The rotor channel is specified for 0.81-inch nominal width. Rotor outside diameter: 10.00 to 13.00 inches. Specified rotor-width limits: 0.75–0.83 inch.
• 6 stainless steel pistons with 1.62/1.38/1.38-inch bore groups. The specified effective area is 5.06 sq in.
• Piston dust boots: not fitted.
• Black powder coat finish on a forged aluminum caliper body.
• Brake pad profile 6712; select friction material for the actual operating conditions.

Fitment & Compatibility

Match the 0.81-inch nominal rotor-width version and the 5.25-inch lug pattern. Check rotor centering, the complete wheel profile and the intended brake balance rather than assuming every black Dynapro has the same dimensions.

PMB Performance has worked with brake components for over 20 years. Share the required piston sizing, rotor measurements and bracket drawing for help checking the match.
