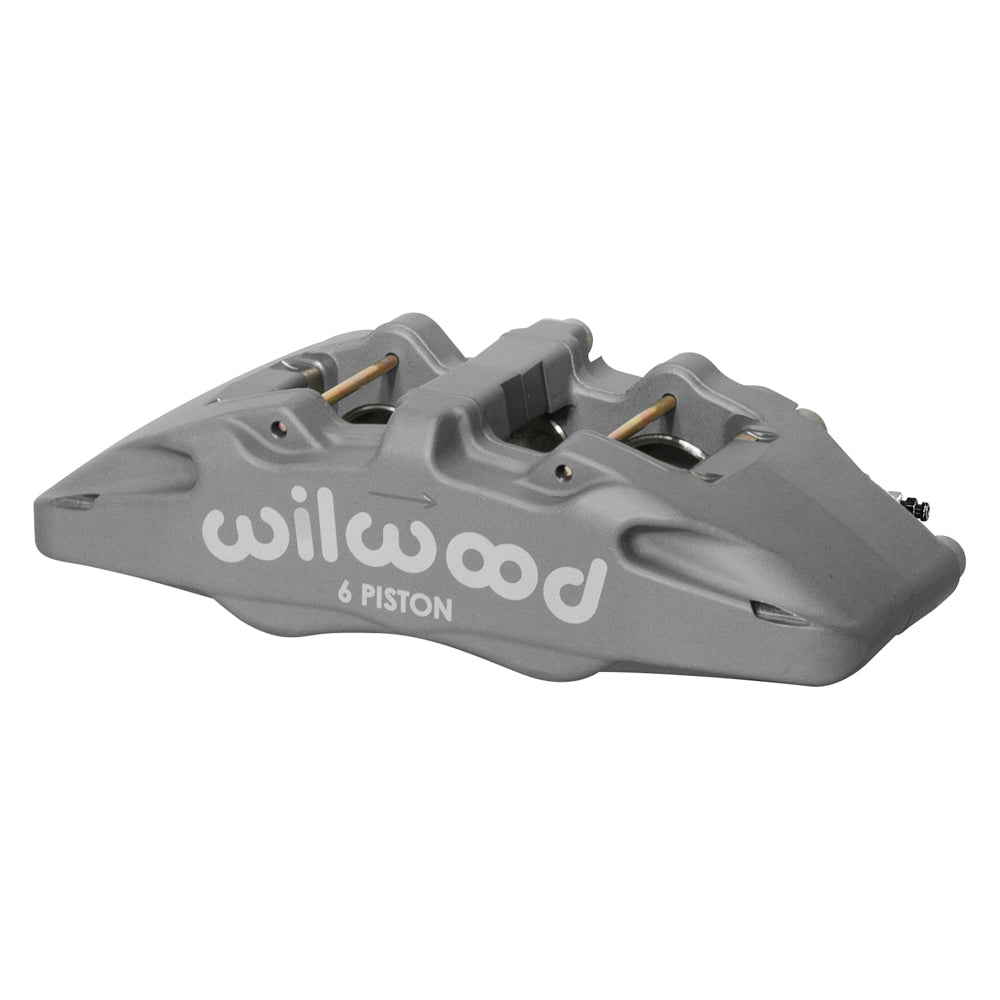

Wilwood Right DP6A Anodized Caliper, 1.62/1.38/1.38-Inch Bores / 0.81-Inch Rotor Width

The right Forged Dynapro 6A uses a triple-bridge forged body with six stainless pistons. This hard-anodized version combines 1.62/1.38/1.38-inch bores with a nominal 0.81-inch rotor-width cavity and 5.25-inch lug attachment. Bill Wood founded Wilwood Engineering in 1977, and the company is based in Camarillo, California. It designs and manufactures disc brake systems and a component range of calipers, brake rotors, master cylinders, valves, fittings and brake lines serving motorsport, street-performance and specialized installations.

Technical Details

• Manufacturer part number: 120-13428. Component: Forged Dynapro 6A Lug Mount caliper.
• Supply: one brake caliper, not a complete axle brake kit. Match the mating rotor, pads, bracket and connection hardware to the installation.
• Compatible brake pad shape: 6712; choose the required compound for the brake system.
• Piston dust boots: not fitted.
• Rotor compatibility: nominal width 0.81 inch; diameter 10.00–13.00 inches. Specified rotor-width limits: 0.75–0.83 inch.
• Caliper weight: approximately 5.1 lb.
• Mounting: lug, 5.25-inch centers; right hand orientation. Mount holes: 0.39 inch; height: 2.03 inches.
• Hydraulic inlet thread: 1/8-27 NPT. Use a fitting with the correct thread and sealing seat.
• Body: forged aluminum; finish: Type III anodize.
• Pistons: 6 stainless steel; bore specification: 1.62/1.38/1.38 inches. Effective piston area: 5.06 sq in.

Fitment & Compatibility

Compare rotor thickness with the 0.75–0.83-inch permitted range before replacing another DP6A. Verify the 2.03-inch mount height, type 6712 pads and right-side orientation, then check the existing system’s piston-area requirement.

For a replacement or custom installation, send PMB Performance the brake dimensions and existing component identification. Our 20+ years of experience can help narrow down the correct combination.
