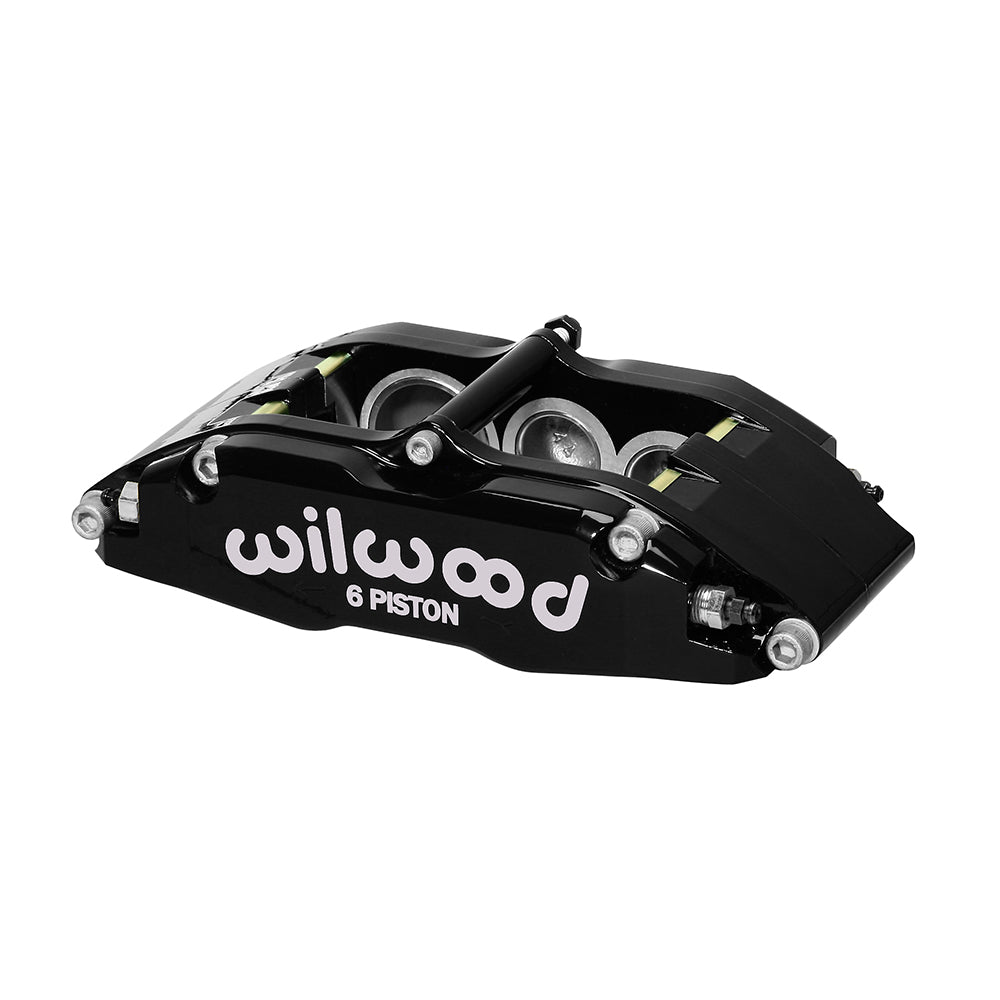

Wilwood Right Black Billet Narrow Superlite 6 Caliper, 1.10-Inch Rotor Width / Lug Mount: Black Narrow Superlite lug-mount caliper with white lettering, center bridge bolt and open pad channel.

Wilwood Right Black Billet Narrow Superlite 6 Caliper, 1.10-Inch Rotor Width / Lug Mount

SKU: 120-13382-BK

$467.46 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

The black right Billet Narrow Superlite 6 uses 1.62/1.12/1.12-inch stainless pistons in a six-piston body. Internal crossover passages allow its specified side orientation to be used with either fore or aft spindle placement when installed as directed. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and components. Founded by Bill Wood in 1977, its range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications.

Technical Details

  • Manufacturer part number: 120-13382-BK. Component: Billet Narrow Superlite 6 Lug Mount caliper.
  • Supply: one brake caliper, not a complete axle brake kit. Match the mating rotor, pads, bracket and connection hardware to the installation.
  • Compatible brake pad shape: 7416; choose the required compound for the brake system.
  • Hydraulic inlet thread: 1/8-27 NPT. Use a fitting with the correct thread and sealing seat.
  • Rotor compatibility: nominal width 1.10 inch; diameter 11.75–14.00 inches. Specified rotor-width limits: 1.00–1.10 inch.
  • Mounting: lug, 3.50-inch centers; right hand orientation. Mount holes: 0.45 inch; height: 2.85 inches.
  • Pistons: 6 stainless steel; bore specification: 1.62/1.12/1.12 inches. Effective piston area: 4.04 sq in.
  • Piston dust boots: not fitted.
  • Body: billet aluminum; finish: Black powder coat.
  • Caliper weight: approximately 5.2 lb.

Fitment & Compatibility

Compare the 3.50-inch lug centers and 2.85-inch mount height with the existing tabs. Check the nominal 1.10-inch rotor width and type 7416 pads; this lug-mount caliper does not use the same attachment as a radial Superlite.

With 20+ years of experience, PMB Performance can help compare the actual brake hardware. Supply the caliper number, rotor dimensions and mounting measurements when asking about compatibility.
