Product details

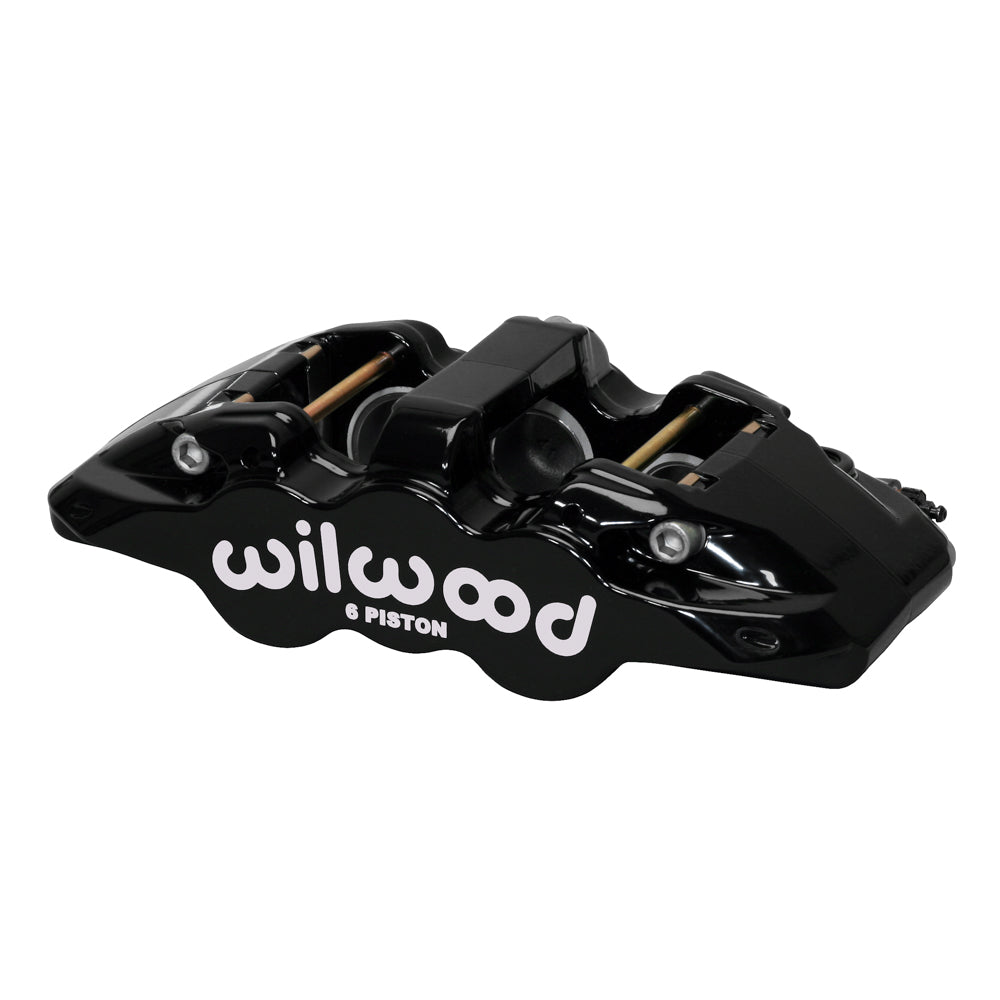

The black right-hand AERO6 is a six-piston caliper with a 1.62/1.12/1.12-inch stainless bore arrangement. It combines a forged housing and internal fluid transfer with a radial mounting pattern rather than a supplied vehicle-specific mounting kit. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. It designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications.
Technical Details
- Manufacturer part number: 120-13289-BK. Component: Aero6 Radial Mount caliper.
- Supply: one brake caliper, not a complete axle brake kit. Match the mating rotor, pads, bracket and connection hardware to the installation.
- Rotor compatibility: nominal width 1.25 inch; diameter 12.19–15.00 inches. Specified rotor-width limits: 1.10–1.28 inch.
- Hydraulic inlet thread: 1/8-27 NPT. Use a fitting with the correct thread and sealing seat.
- Mounting: radial, 7.09-inch centers; right hand orientation. Mount holes: 0.45 inch; height: 2.09 inches.
- Caliper weight: approximately 6.9 lb.
- Piston dust boots: not fitted.
- Compatible brake pad shape: 6617; choose the required compound for the brake system.
- Body: forged aluminum; finish: Black powder coat.
- Pistons: 6 stainless steel; bore specification: 1.62/1.12/1.12 inches. Effective piston area: 4.04 sq in.
Fitment & Compatibility
Check the 1.25-inch nominal rotor width and the 1.10–1.28-inch permitted range. Establish the bracket’s height and offset so the 6617 pads align on the rotor and the caliper clears the wheel.
