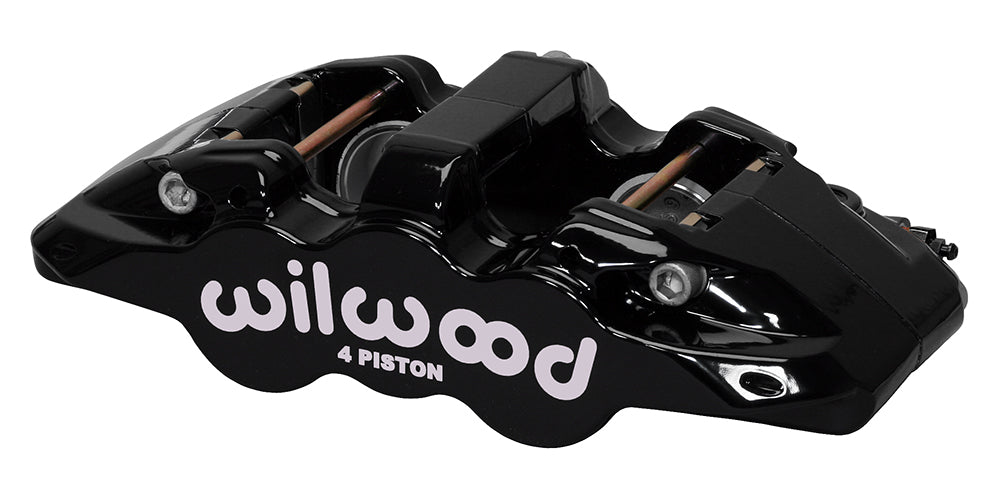

Wilwood Right Black Aero4 Brake Caliper, 1.62/1.38-Inch Bores / 1.25-Inch Rotor Width

This black right-hand Wilwood AERO4 has four stainless pistons with differential 1.62/1.38-inch bores. A forged body, internal fluid passages and a 7.09-inch radial pattern define this nominal 1.25-inch rotor-width configuration. Founded in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering designs and manufactures disc braking systems. Its motorsport, street-performance and specialized range covers calipers, brake rotors, master cylinders, valves, fittings and brake lines, selected as parts of a complete system.

Technical Details

• Manufacturer part number: 120-13281-BK. Component: Aero4 Radial Mount caliper.
• Supply: one brake caliper, not a complete axle brake kit. Match the mating rotor, pads, bracket and connection hardware to the installation.
• Black powder coat finish on a forged aluminum caliper body.
• Hydraulic inlet thread: 1/8-27 NPT. Use a fitting with the correct thread and sealing seat.
• The rotor channel is specified for 1.25-inch nominal width. Rotor outside diameter: 12.19 to 15.00 inches. Specified rotor-width limits: 1.10–1.28 inch.
• 7.09-inch radial mounting pattern, right hand; mounting height 2.09 inches and hole size 0.45 inch.
• Piston dust boots: not fitted.
• Caliper weight: approximately 6.9 lb.
• Brake pad profile 6617; select friction material for the actual operating conditions.
• 4 stainless steel pistons with 1.62/1.38-inch bore groups. The specified effective area is 3.56 sq in.

Fitment & Compatibility

Check the right-side bracket against the 2.09-inch mount height and required rotor centerline. Confirm the type 6617 pad outline and usable rotor diameter before evaluating the final wheel clearance.
