Product details

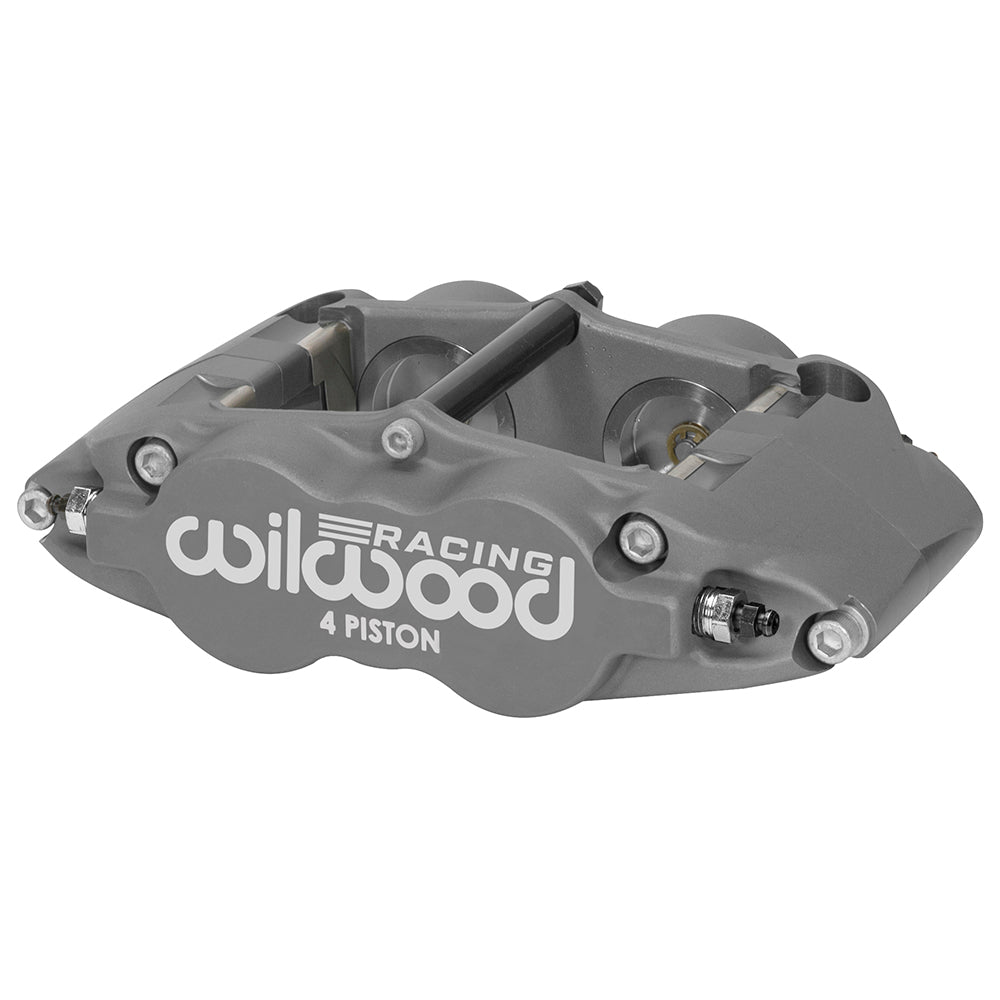

Wilwood’s right Superlite 4R with Thermlock pistons uses 1.88/1.62-inch differential bores. Heat insulation is built into the piston arrangement, while the caliper retains a forged radial-mount body with a hard-anodized finish. Bill Wood founded Wilwood Engineering in 1977, and the company is based in Camarillo, California. It designs and manufactures disc brake systems and a component range of calipers, brake rotors, master cylinders, valves, fittings and brake lines serving motorsport, street-performance and specialized installations.
Technical Details
- Manufacturer part number: 120-13265. Component: Forged Superlite 4 Radial Mount caliper.
- Supply: one brake caliper, not a complete axle brake kit. Match the mating rotor, pads, bracket and connection hardware to the installation.
- Hydraulic inlet thread: 1/8-27 NPT. Use a fitting with the correct thread and sealing seat.
- Mounting: radial, 5.98-inch centers; right hand orientation. Mount holes: 0.39 inch; height: 1.63 inches.
- Caliper weight: approximately 5.5 lb.
- Rotor compatibility: nominal width 1.25 inch; diameter 11.75–14.00 inches. Specified rotor-width limits: 1.15–1.35 inch.
- Pistons: 4 Thermlock; bore specification: 1.88/1.62 inches. Effective piston area: 4.84 sq in.
- Piston dust boots: not fitted.
- Compatible brake pad shape: 7420; choose the required compound for the brake system.
- Body: forged aluminum; finish: Type III anodize.
Fitment & Compatibility
Match the 1.25-inch nominal rotor-width version and compare the full piston specification with the master cylinder. Follow the 5.98-inch mounting pattern and 1.63-inch height in the drawing, then check the final wheel envelope.
For a replacement or custom installation, send PMB Performance the brake dimensions and existing component identification. Our 20+ years of experience can help narrow down the correct combination.
