Wilwood Competition Blue DPHA Front Caliper, Honda/Acura 262mm Brake System

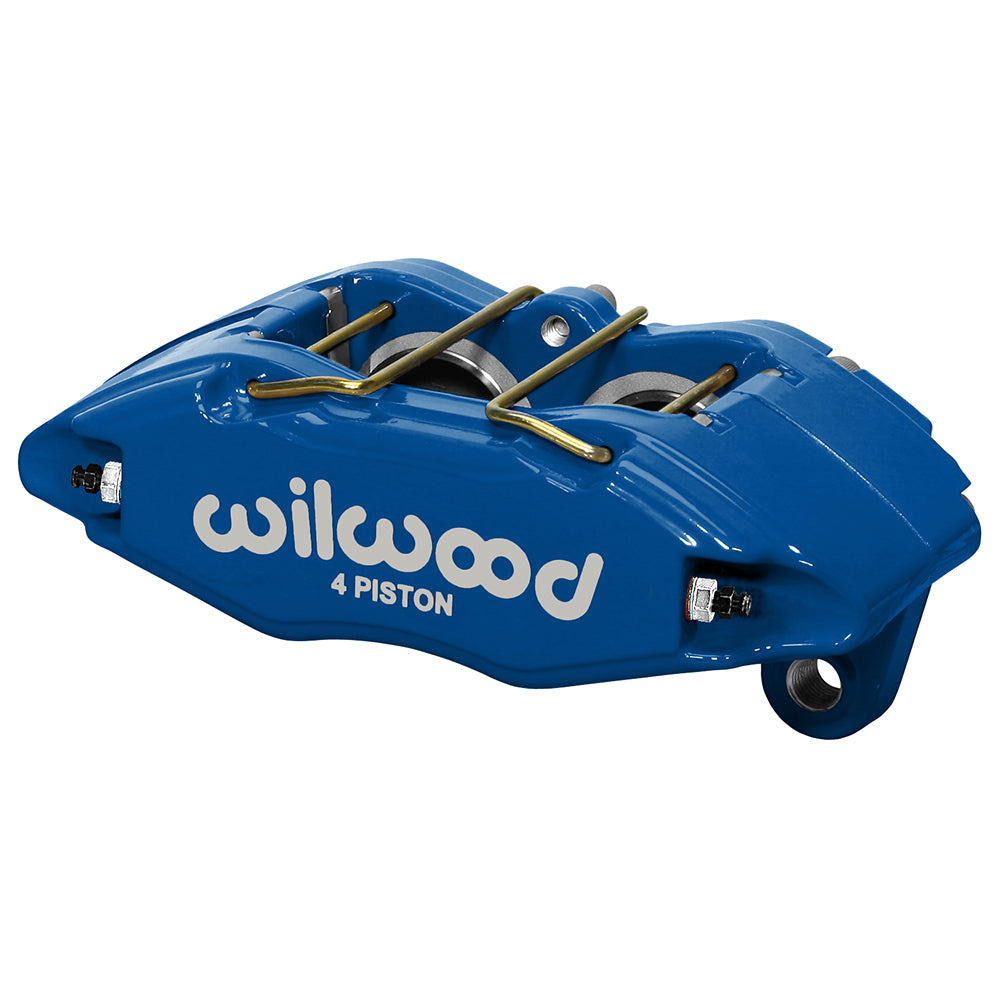

The Competition Blue Wilwood DPHA is a four-piston front caliper for Honda and Acura brake assemblies originally equipped with 262 mm rotors. Its forged aluminum body carries equal 1.62-inch stainless pistons and bolts to the original spindle mounts for that brake configuration. Wilwood Engineering, founded by Bill Wood in 1977, is based in Camarillo, California. The company makes and designs disc brake components and systems for motorsport, street-performance and specialized applications, including calipers, brake rotors, master cylinders, valves, fittings and brake lines.

Technical Details

• Manufacturer part number: 120-12949-CB. Component: Forged DPHA caliper.
• Supply: one brake caliper, not a complete axle brake kit. Match the mating rotor, pads, bracket and connection hardware to the installation.
• The rotor channel is specified for 0.83-inch nominal width. Rotor outside diameter: 10.32 inches. Specified rotor-width limits: 0.78–0.83 inch.
• Piston dust boots: not fitted.
• 5.51-inch lug mounting pattern, universal; mounting height 2.37 inches and hole size 0.47 inch.
• Hydraulic inlet thread: M10 x 1.50. Use a fitting with the correct thread and sealing seat.
• Brake pad profile 7812; select friction material for the actual operating conditions.
• 4 stainless steel pistons with 1.62-inch bore diameter. The specified effective area is 4.12 sq in.
• Caliper weight: approximately 3.9 lb.
• Competition Blue powder coat finish on a forged aluminum caliper body.

Fitment & Compatibility

Verify that the existing front rotor is 262 mm in diameter and 0.83 inch wide, rather than selecting by Honda or Acura model name alone. Check the original M10 x 1.5 hose connection and the clearance inside the actual wheel.

Ask PMB Performance to check the complete brake arrangement before ordering. Our team brings over 20 years of experience; photographs and measured bracket and rotor dimensions make that check more useful.
