Product details

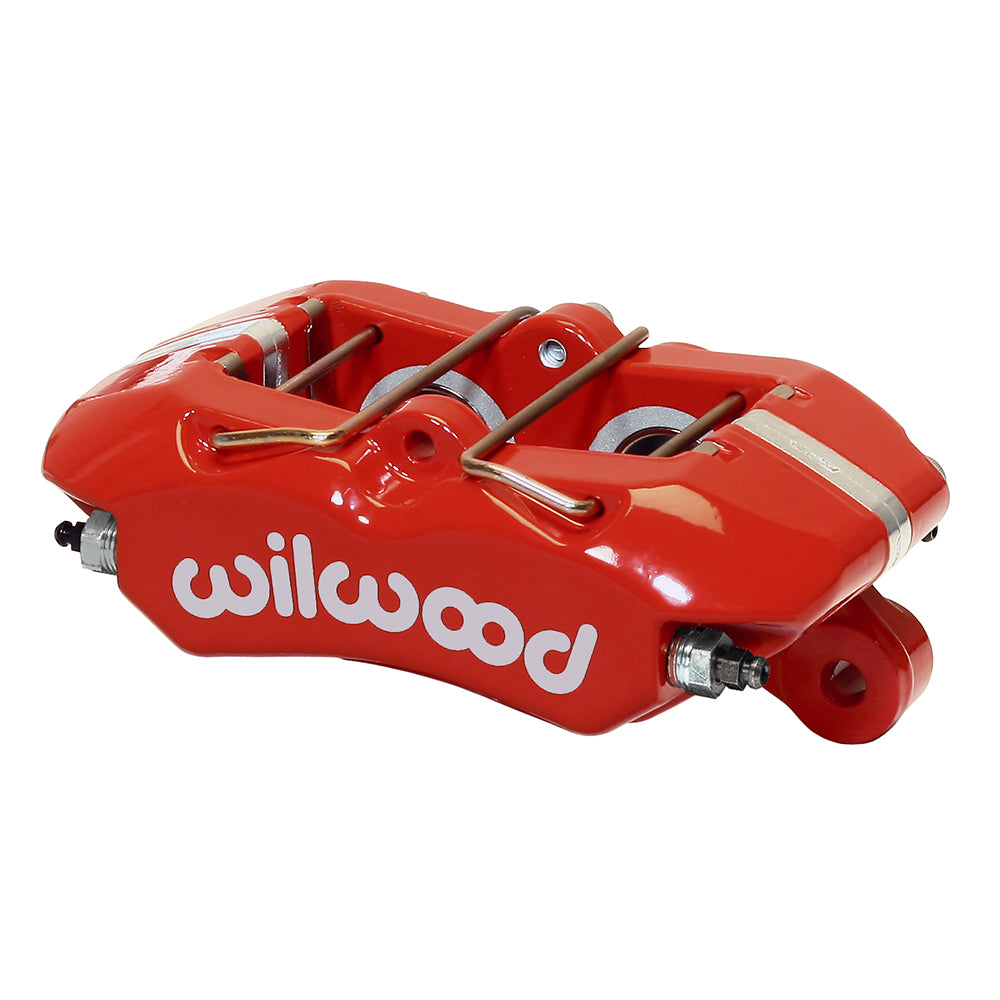

The red Dynapro Low-Profile combines four 1.12-inch stainless pistons with the compact 4812 pad profile. It is the nominal 0.81-inch rotor-width version with a 1.98-square-inch effective area. Wilwood Engineering is a Camarillo, California-based designer and manufacturer of disc brake systems, founded by Bill Wood in 1977. Calipers, brake rotors, master cylinders, valves, fittings and brake lines form its range for motorsport, street-performance and specialized applications.
Technical Details
- Manufacturer part number: 120-12160-RD. Component: Forged Dynapro Lug Mount Low-Profile caliper.
- Supply: one brake caliper, not a complete axle brake kit. Match the mating rotor, pads, bracket and connection hardware to the installation.
- 5.25-inch lug mounting pattern, universal; mounting height 2.10 inches and hole size 0.39 inch.
- Caliper weight: approximately 3.6 lb.
- Piston dust boots: not fitted.
- Red powder coat finish on a forged aluminum caliper body.
- 4 stainless steel pistons with 1.12-inch bore diameter. The specified effective area is 1.98 sq in.
- The rotor channel is specified for 0.81-inch nominal width. Rotor outside diameter: 11.00 to 13.06 inches. Specified rotor-width limits: 0.75–0.83 inch.
- Hydraulic inlet thread: 1/8-27 NPT. Use a fitting with the correct thread and sealing seat.
- Brake pad profile 4812; select friction material for the actual operating conditions.
Fitment & Compatibility
Check the narrow friction sweep and outboard hat clearance first. Then verify the 5.25-inch lug bracket, rotor centerline and wheel envelope against this particular low-profile body.
