Product details

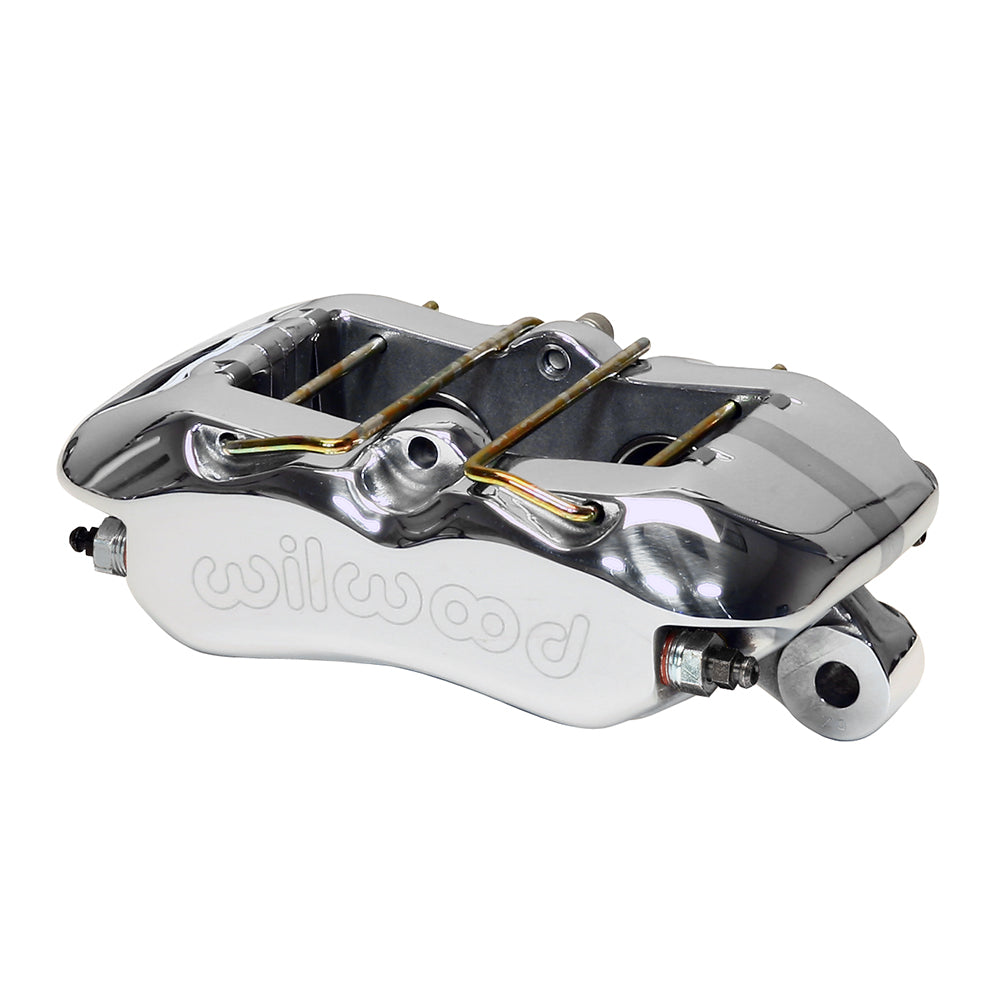

A polished forged housing carries four equal 1.12-inch stainless pistons in this low-profile Dynapro. The 4812 pad arrangement and nominal 0.81-inch rotor-width channel suit a matched narrow-sweep brake. Bill Wood founded Wilwood Engineering in 1977, and the company is based in Camarillo, California. It designs and manufactures disc brake systems and a component range of calipers, brake rotors, master cylinders, valves, fittings and brake lines serving motorsport, street-performance and specialized installations.
Technical Details
- Manufacturer part number: 120-12160-P. Component: Forged Dynapro Lug Mount Low-Profile caliper.
- Supply: one brake caliper, not a complete axle brake kit. Match the mating rotor, pads, bracket and connection hardware to the installation.
- Body: forged aluminum; finish: polished.
- Pistons: 4 stainless steel; bore specification: 1.12 inches. Effective piston area: 1.98 sq in.
- Caliper weight: approximately 3.6 lb.
- Mounting: lug, 5.25-inch centers; universal orientation. Mount holes: 0.39 inch; height: 2.10 inches.
- Piston dust boots: not fitted.
- Compatible brake pad shape: 4812; choose the required compound for the brake system.
- Rotor compatibility: nominal width 0.81 inch; diameter 11.00–13.06 inches. Specified rotor-width limits: 0.75–0.83 inch.
- Hydraulic inlet thread: 1/8-27 NPT. Use a fitting with the correct thread and sealing seat.
Fitment & Compatibility
Confirm the 1.98-square-inch piston area and the space beside the rotor hat. The polished surface does not alter the 5.25-inch mounting pattern or required lateral offset.
For a replacement or custom installation, send PMB Performance the brake dimensions and existing component identification. Our 20+ years of experience can help narrow down the correct combination.
